Product Details:
|
| Max. Glass Size: | 2500*3500mm | Min. Glass Size: | 280*400 |
|---|---|---|---|
| Name: | Insulated Glass Machine | Voltage: | 380V 50Hz 3P |
| Condition: | New | Warranty: | 1 Year |
| IG Thickness: | 60mm | ||
| High Light: | 280*400mm Insulated Glass Machine,thickness 60mm Insulated Glass Machine,280*400mm double glazing glass machine |
||

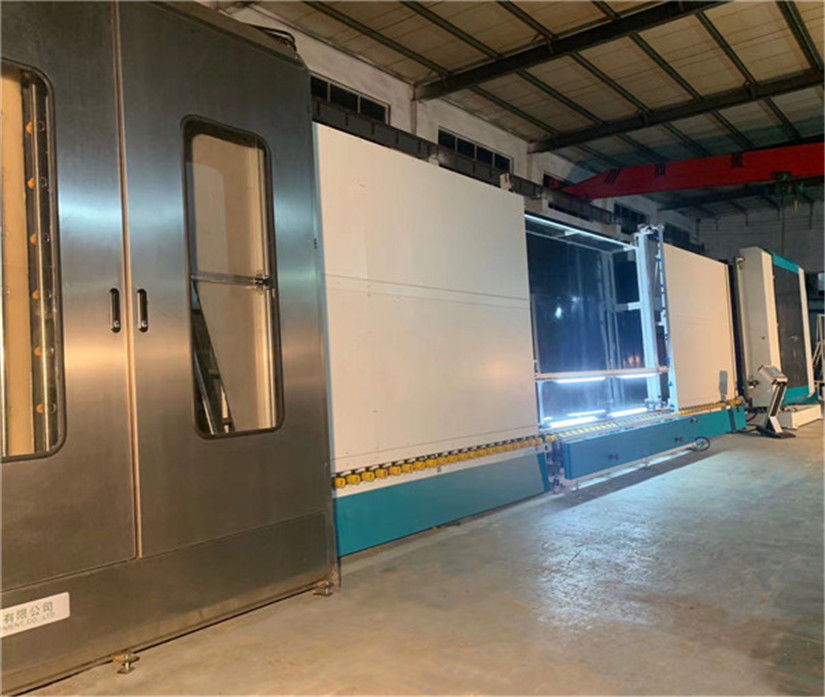

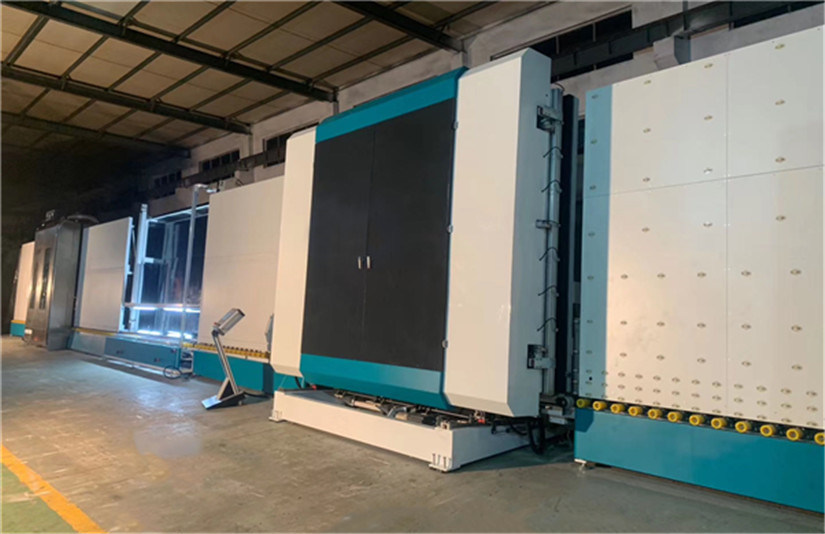

Insulated glass machine Processing Line With Washing and Pressing Function
Overview of IG line
Insulating Glass Production line is calles IG line, it includes glass washing machine, spacer frame installation and glass pressing machine. We normally have 2000*2500mm, 2500*3500mm, 2500*4000mm and 2500*4500mm IG line. The types of the IG line are with filling argon gas and without filling argon . There are also two special IG lines, air floating IG line and super fast IG line (washing and pressing two IG units together).
Main feature of Insulating Glass Production Line
• Adopts conveyor belt to transfer glass, use servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Ultra-long glass can be compressed by twice
• Pressing board with adjustable structure to guarantee long-lasting service life
Details of Insulating Glass Production Line
•Insulating Glass Production Line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
• 01 transfer section
Can coating detection mechanism, automatic detection of offline Low-e film
• 02 washing section
• Using3Pairs of soft brushes with 0.1mm soft hair, can wash low-e glass
• The air knife can automatically adjust the width of the air knife according to the thickness
•New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• Stainless steel material
• European silencer system
• 03 discharge section
• Storage glass
• 04 inspection and installation section
The new structure of inspection section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.
• 05 transfer section
• Automatic measurement of glass thickness. It can be used according to actual needs when working.
• 06 pressing and filling section
• 07 discharge section
• Can be connected to sealing machine
• Storage glass
Technical data of Insulating Glass Production Line
| Max. glass size | 2500mm*4500mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ |
| Dimension | 23500*3500*3700mm |
Related Product
Automatic Aluminum Spacer Bending Machine
Main feature of spacer bending machine
• Adopt Siemens PLC control system, touch screen interface
• Siemens servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly etc (Optional)
Technical parameters
| Max. bending size | 2000mm*2000mm (2500*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
LIJIANG GLASS is the manufacturer in Jinan city, China since 2012 year. We make the IG line, sealing robot, spacer bending machine, desiccant filling machine, butyl extruder machine and so on, porviding machines for all over the world with after sale service.
Since the virus of the whole world, Our engineers are restricted to many countries in the world. So we provice installation service and trainning work online by Wechat, Whatsapp and so on. Once the world has a better suitation, our engineer will go to check our machines again.
