15mm Air Floating Insulated Glass Making Machinery

Insulating Glass Line Making Glass For Buildings And Windows And Doors

LIJIANG's products mainly include:

IG line series;

Sealing robot series;

Low-e film edge remover;

Spacer bending machine series;

Butyl extruder series;

Desiccant filling machine;

Auxiliary insulated glass machine.

Approximately 20 products are widely used in the customized double glazing industry, windows and doors, industrial aluminum alloys, building curtain walls, high speed rails, elevators and advertising industry.

Vertical Insulating Glass Production Line - 2000*2500

IG line series :

Sizes :

2000*2500

2500* 3500

3000* 4000

Functions :

double glazing glass

triple glazing glass

four sides step glazing glass

Special technology :

Shaped glazing glass

Filling argon gas online

Low-e film glazing glass

Making two pieces of IG units in once time

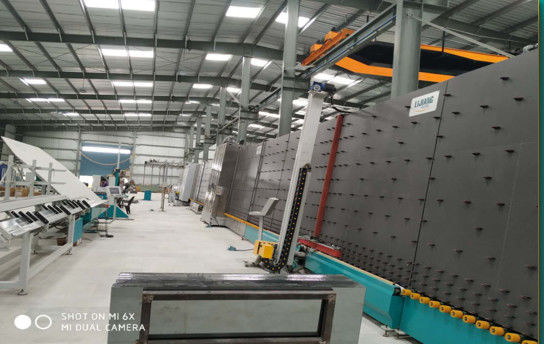

Air floating insulating glass line

Main Features:

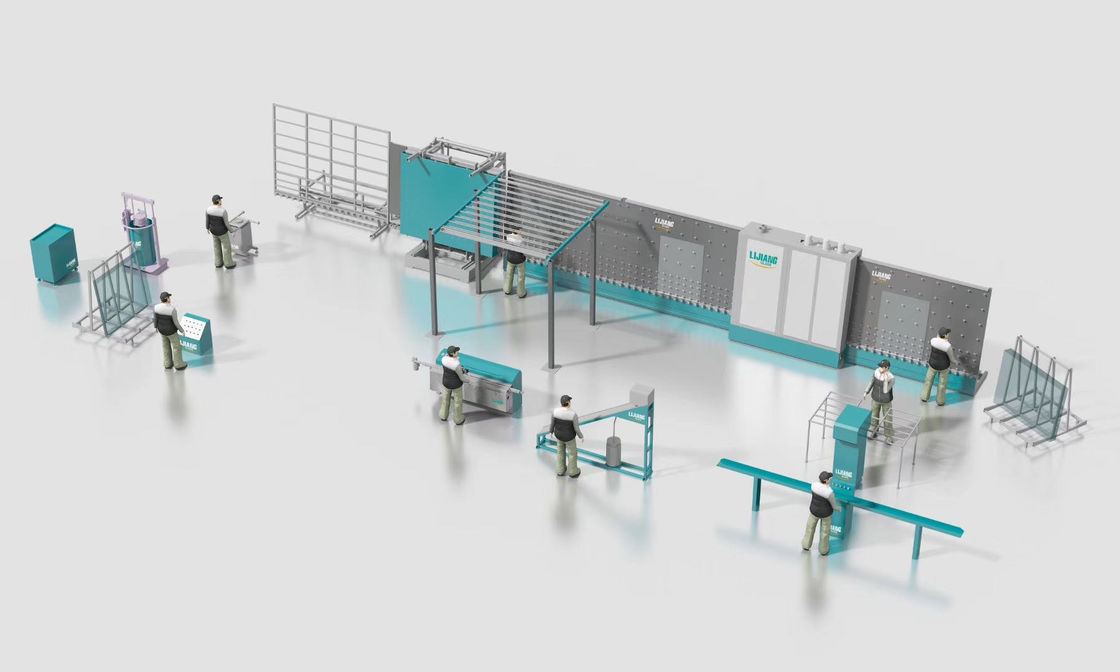

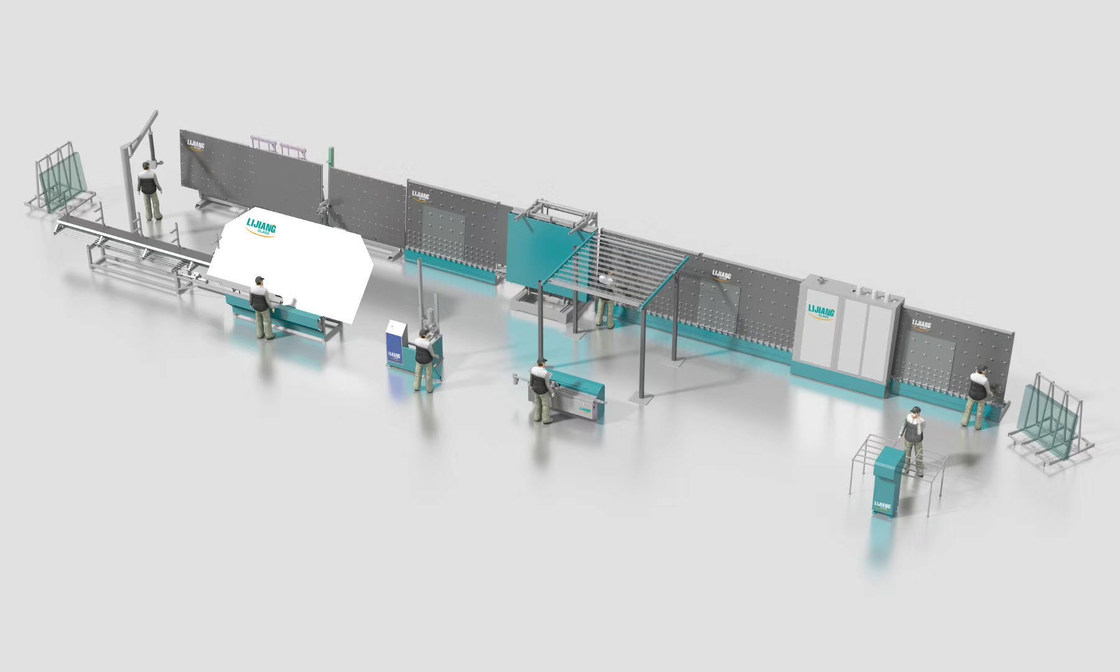

• The line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Washing machine:

Main feature:

• Use 6 soft brushes with 0.1mm soft hair to wash low-e glass

• Pre-cleaning (optional)

• The new air knife uses an aluminum profile (Duckville Air Knife) and the exhaust port size is adjusted by the aluminum profile duck beak. This reduces the number of adjusting screws, prevents each screw from loosening, and avoids air knife resonance.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with the cleaning speed display can accurately display the cleaning speed (8-10m).

• Automatic temperature control of water tank, water supply system

• European silencer system

• Stainless steel material

Pressing machine :

Main feature:

• Ultra-long (2500mm * 3500mm) insulation glass can be compressed twice

• Adopt a conveyor belt for glass transfer and press the glass using a servo motor

• Easy maintenance by opening the press plate

• Adjustable press board that guarantees long-lasting service life

Technical data :

Electrical parameters
