Product Details:
|
| Name: | Butyl Aluminum Sapcer For Double Glass | Advantage: | Warm Edge Thchnolgy |
|---|---|---|---|
| Size: | Can Be Request | Usage: | Double Insulating Glass |
| High Light: | glass processing machines,insulating glass line |
||

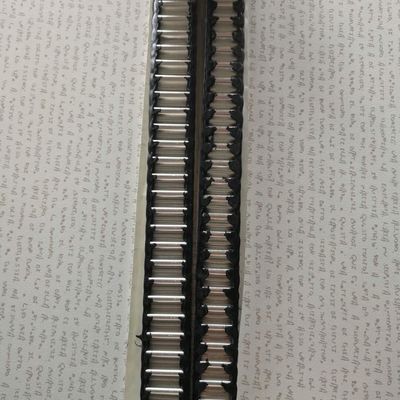

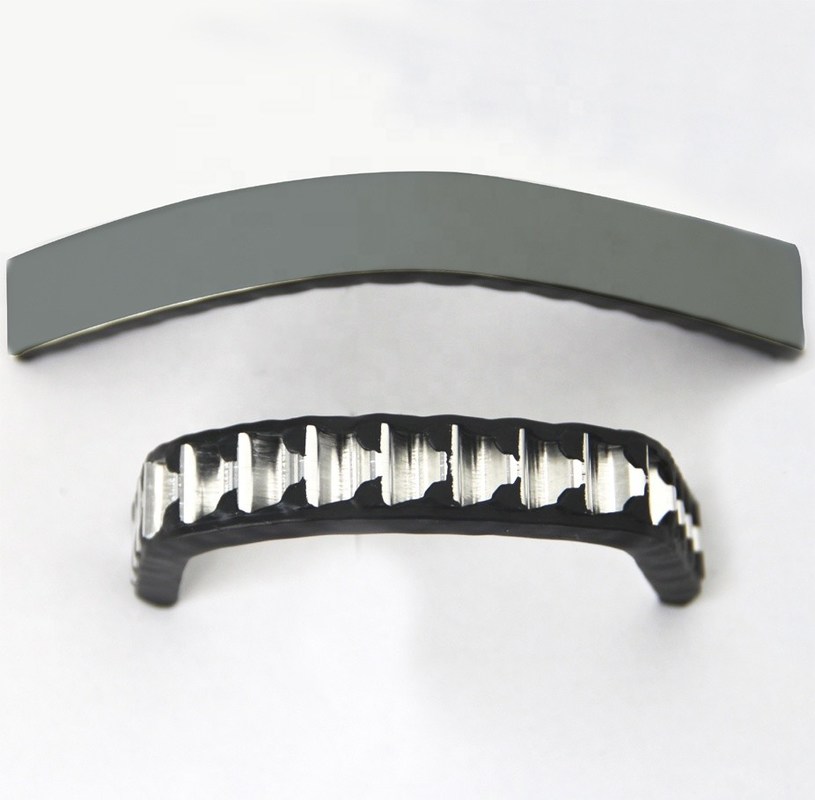

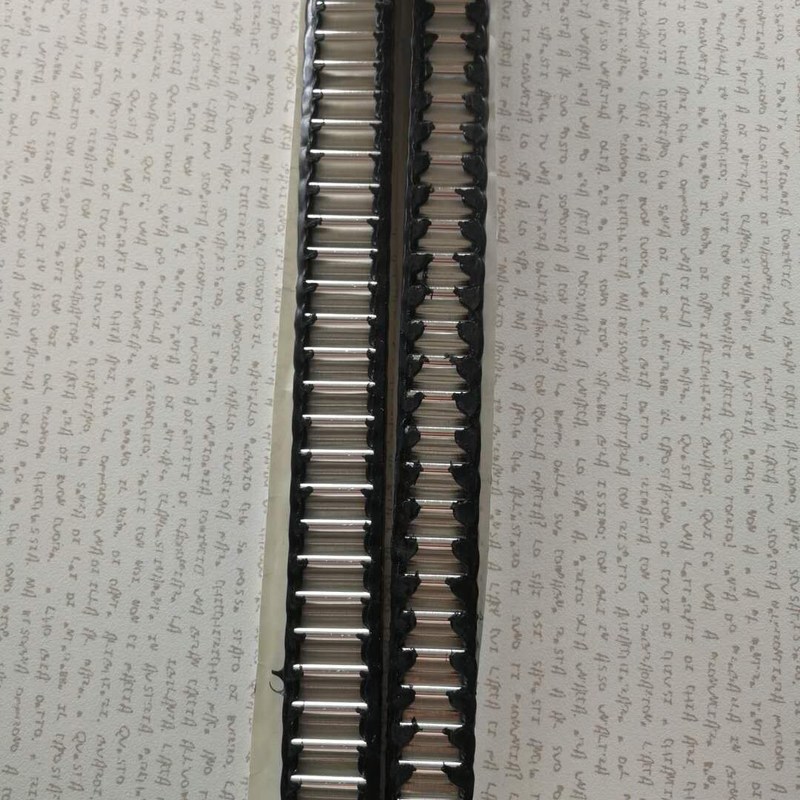

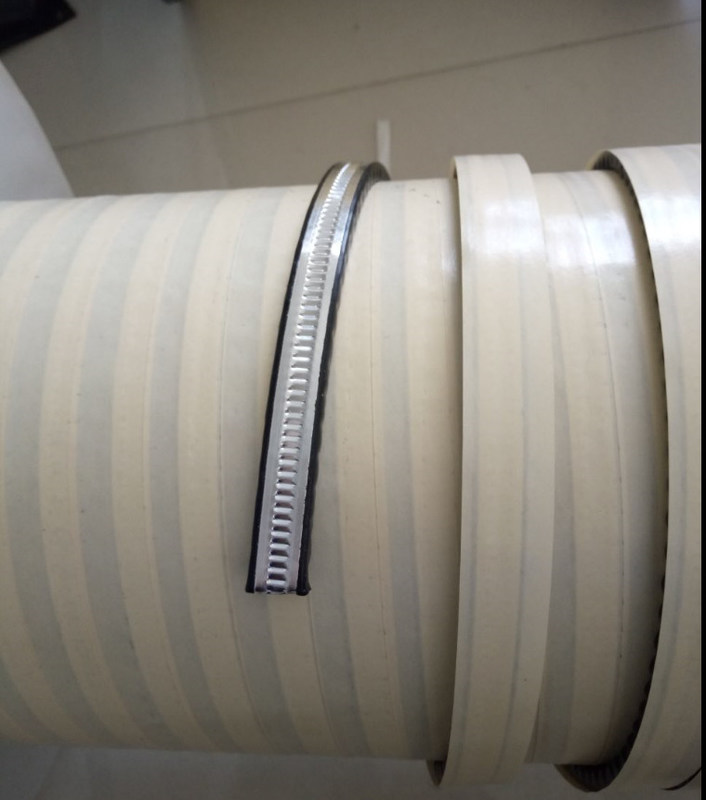

Hot Sell Warm Edge Thchnolgy Butyl Aluminum Sapcer For Double Glass
Warm Adge Spacer - New Technolty Working with IG Syetem
Warm edge spacer of insulating glass
Characteristics:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
|
.Good sealing prevents water vapor from penetrating .Polymer adhesives, viscosifier to ensure a good seal, the center of the design of aluminum bar completely cut off the water vapor penetration |
|
|
The improved tensile strength is better than the quality of traditional rubber strip The aluminum strip extender strip is aluminum strip plastic li hot strip aluminum foil film |
|
|
Significant anti-aging property High polymer raw materials, anti - aging agent, uv absorbent, screen agent effectively resist the harsh environment erosion |
Warm Adge Spacer - New Technolty Working with IG Syetem
The spacer is made to connect two or more pieces of glass glazing sheets which might be low e or reflective glass or normal float colored glass .The spacer was filled with desiccant together. Insulated glass/ Hollow glass/IGU/Double glazing glass with the perimeter of the spacer that gets in contact
with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight.
Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum
Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.
| Item | Sealing spacer for insulating glass |
| Application | Insulaitng glass sealing material |
| Colour | Black/Grey,Other color can be customized |
| Specification | 6mm-20mm, Other size can be customized |
| Delivery | EXW/FOB/CIF/CRF |
| Payment | T/T, l/C |
| Package Size | LxWxH:570x470x570 |
| 20'GP container | 144 cartons |
| size of roll | ø535x465 |
Features:
1.The glass looks more beautiful with the aluminum strip on surface, and the appearance meeting the requirements for aluminum-frame type insulating glass, significantly improving its level.
2.The ageing-resistant performance remarkably enhances. The aluminum strip on surface effectively resists the ultraviolet irradiation, reinforcing the ageing-resistant performance of the spacer to a large extent.
3.Simple operation makes higher production efficiency.Adopting Kation spacer can take the place of complex processing procedure of traditional aluminum-frame type insulating glass.

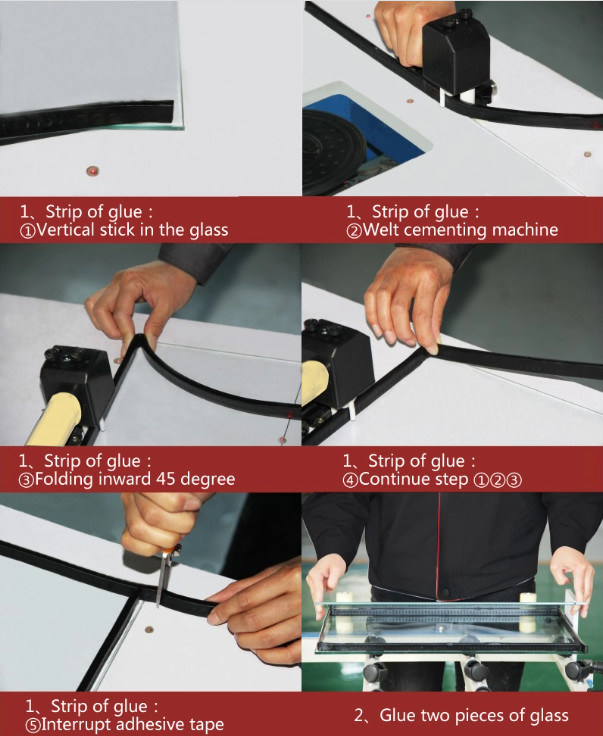

Usage and attention:
1.The glasss by the washing machine to clean after drying, the one on the corner of a piece of glass paste interval article,article straighten interval,
and edge of the glass to keep a distance of 2.5~3.0mm,and then from the edge of the glass will be around full article interval,Good sealing tape on interfaces,
Pincer-like device reserved 2mm-3mm gap,and about 20mm apart more joint,insert the sealing tape in space,then joint pressure sealing tape,pinched connectors.
2.Put another piece of glass paste good spacing bar glass above,two pieces of glass must be mutual alignment,up and down to the flat.
3.Will paste together of hollow glass into hot press,hot pressing temperature control between 110-140℃,the outlet temperature control between 50-60 ℃.
4.According to the structure requirement to normal play a two-component silicone sealant,thus insulating glass production.
5.This product seal must be carried out in accordance with the article butyl interval sealing operation schematic drawing process,otherwise may cause the seal leakage.
