Product Details:
|
Production Nam: | Automatic Insulated Glass Processing Line | Max Filling Gas Size: | 2500*3200mm |
---|---|---|---|
Application: | Double Glass , Triple Glass | Control: | PLC Control |
Insulating Glass Thickness: | 60mm | Motor: | Simens |
Gas Content: | >90% | ||
High Light: | 60mm Insulated Glass Processing Line,10m/min Insulated Glass Processing Line,2500*3200mm glass manufacturing machinery |

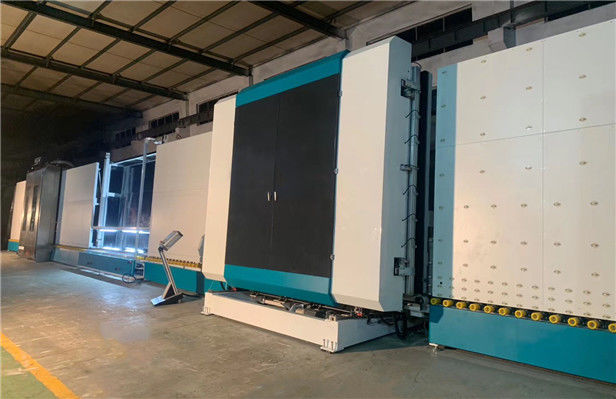

Overview of Automatic Insulated Glass Production Line
Insulated Glass Production Line main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.
Main Features:
• Insulated Glass Production Line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section
• PLC control system, touch screen interface
• Using Siemens servo motors
• Applicable to produce double glass, triple glass
• Step glass with optional edges and shaped glass
Details of Insulating glass Production line
• 01 transfer section
Automatic detection of offline Low-e film

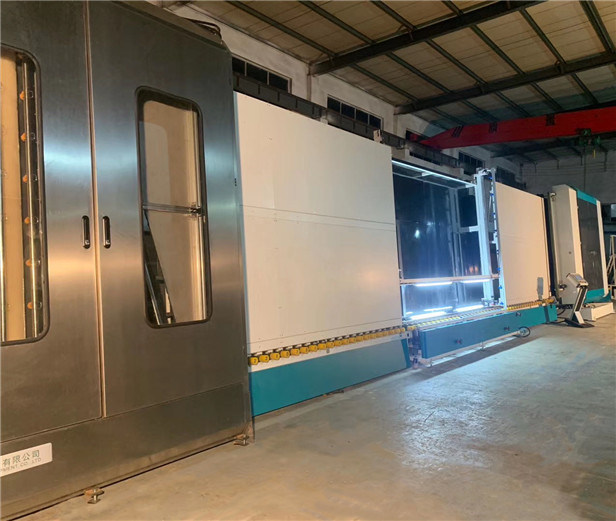

• 02 washing section
Advantages:
• Pre-washing (Optional)
• Using 3Pairs of soft brushes with 0.1mm soft hair, can wash low-e glass
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• Stainless steel material
• European silencer system
• 03 discharge section
• Storage glass
• 04 inspection and installation section
The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.
• 05 transfer section
Automatic measurement of glass thickness. It can be used according to actual needs when working.
• 06 pressing and filling section
Advantages:
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• Automatically fill argon gas with significant sealing effect, higher argon content
• Fast reacting sensor for permanent control of gas filling process
• Can set gas value and show the process of filling gas on the touch screen
• Gas concentration can reach more than 90%
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
• 07 discharge section
• Storage glass
• Can be connected to sealing machine
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Transfer motor | Taiwan | LINHAI |
Brush motor | Taiwan | LINHAI |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Germany | SICK |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Insulating Glass Production line with gas filling online |
Tech parameters
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
