Product Details:
|
| Name: | Vertical Insulating Glass Production Line | Glass Thickness: | 3-15mm / 19mm |
|---|---|---|---|
| Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
| Glass Conveyor Speed: | 45m/min | Washing Brushes: | 3 Pairs |
| High Light: | Vertical Insulating Glass Production Line,2500*3500mm Insulating Glass Production Line |
||

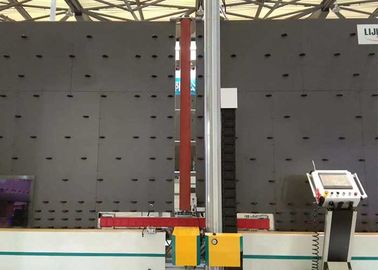

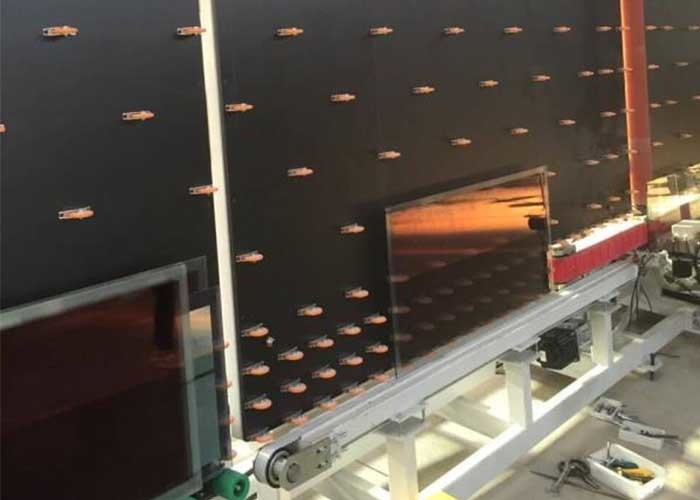

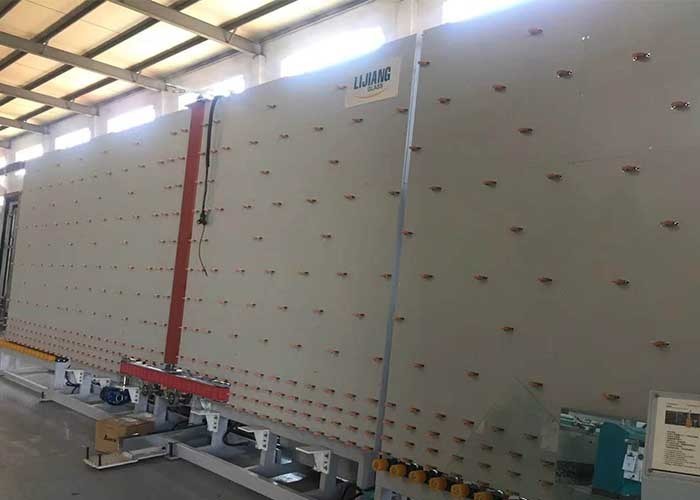

Vertical Insulating Glass Production Line is a completely automatic insulating glass production line can produce LOW-E insulating glass
.
Main Features:
• Insulating Glass Production Line Adopt SIEMENS control system to maintain stable performance
• Touch screen interface,PLC control system,
• Automatically adjust adhesive depth on digital display
• Minimum and maximum glass sizes are optional.
• Use servos to control system, modular and overlay capabilities
• Applicable to the manufacture of stepped IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
Washing section
Main feature:
• Use 3pairs soft brushes
• Cleaning online and offline Low-E glass and automatically recognizes Low-E film
• The cleaning part adopts the design of the upper and lower layered structure
• Variable frequency fan, energy efficient, excellent cleaning effect
• Use of intelligent intermittent energy-saving work methods
• The air knife can automatically adjust the width of the air knife according to the thickness
• Hierarchical cleaning system
• Water tank automatic temperature control, water replenishment system
• European silencer system
Pressing and filling gas parts
Main feature:
• The machine employs servo torque to push the glass
• Adjustable screwed push plate to ensure a long lasting precision tablet
• Equipped with a precisely adjustable front platen mechanism
• The system can diagnose fault information
• The push plate can be opened up to 400 mm width for easy maintenance
• Ultra-long insulating glass can be compressed twice
• Applicable for manufacturing 4-side step IG, triple IG, shaping IG
Filling argon gas automatically
• No need to drill holes in the spacer frame
• Automatically set gas data and display the data on the screen
• Automatically fill the press plate with argon gas with the correct gas concentration
• When filling molded IG, 450 mm (length) and 280 mm (height) expansion is required on the front side of the rectangular size.
• Standard gas is argon gas
• Fast reaction sensor for permanent control of gas filling process
Technical data
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Related Product
Automatic Vertical Edge Deleting Machine LJCM2545
Main feature
• Automatically measure size
• Two-way glass access
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
