Double Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine
Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine

Large Image :  Double Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine

Product Details:
Place of Origin: China
Brand Name: Kation
Certification: CE
Model Number: KationBS001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 100000m/month

Double Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine

Description
Name: Butyl Aluminum Sapcer For Double Glass Advantage: Warm Edge Thchnolgy
Size: Can Be Request Usage: Double Insulating Glass
High Light:

glass processing machines

,

insulating glass line

Hot Sell Warm Edge Thchnolgy Butyl Aluminum Sapcer For Double Glass



              Warm Adge Spacer - New Technolty Working with  IG Syetem



Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 0

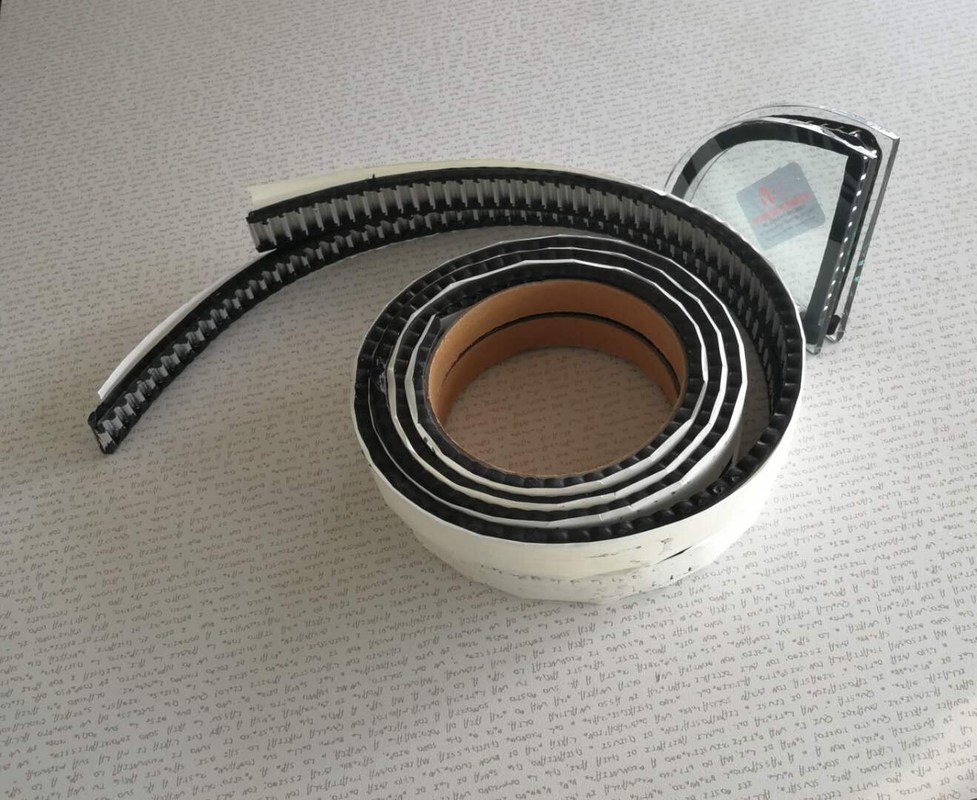

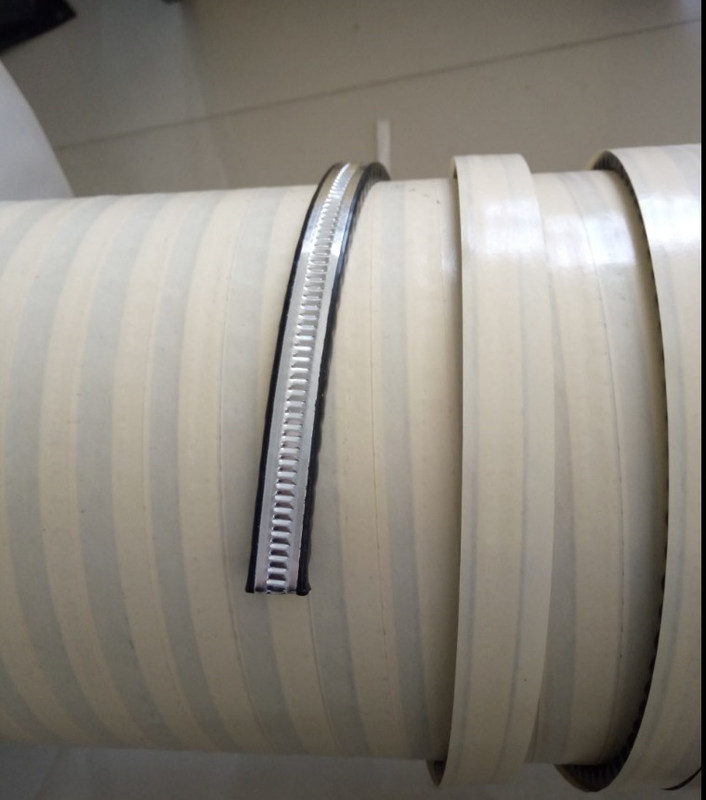

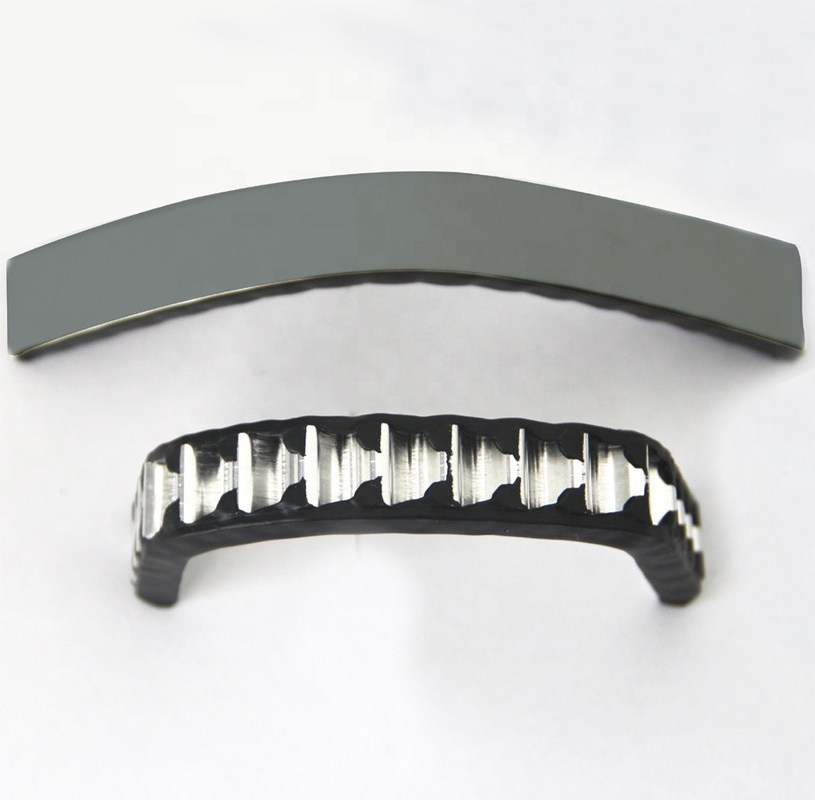

Warm edge spacer of insulating glass

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 1

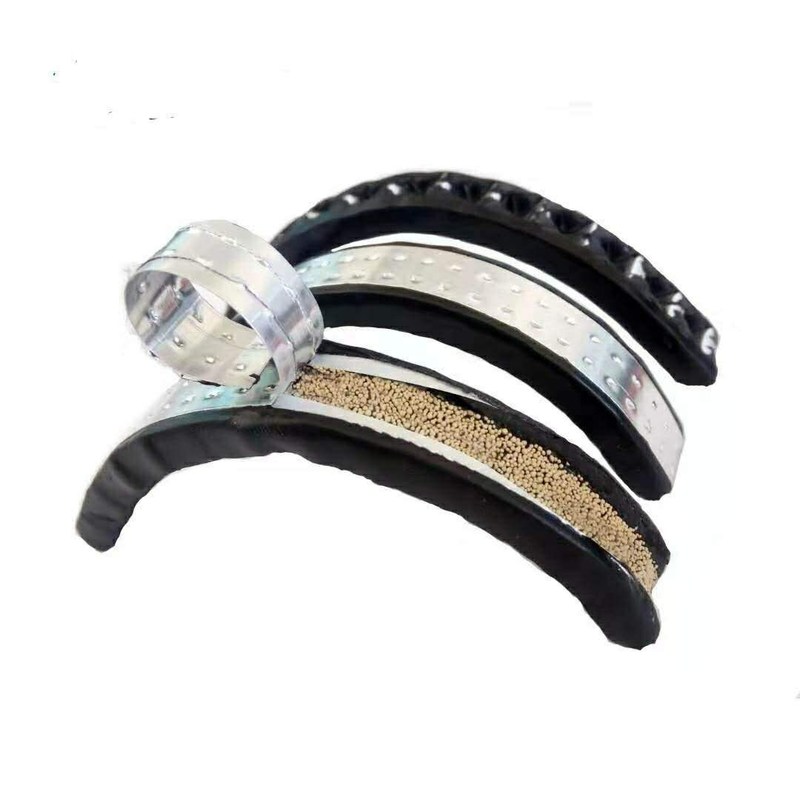

Butyl Spacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.



Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum

Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.


Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 2Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 3Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 4

Product Features:
1.Width:6-16mm by 1mm increment
2.Increasing sealing property during the glass : the sealing property of our spacer is better than other similar ones duing to the
application of the imported butyl rubber from Germany .
3.Fantanstic heat resistance property,increasing insulating glass ability to prevent the noise and heart into the room.
4.Fantansitc sealing ability,enhance the use life of insulating glass greatly.
5.The surface of the rubber spacer is smooth no bubbles.the sealing between the rubber and glass is very strong.
6.Warranty :10 years , For testing ,the butyl spacer can be used about 30 years .

7. Certification: CE. IGCC.SGS.AMOA

Item
Sealing spacer for Insulating Glass
Application
Instead of aluminum spacer bar to make Insulated Glass.
Brand
Kation
Type
Warm edge spacer, Flat spacer, Spacer with groove, Aluminum type spacer, Spacer for decorative glass, etc.
Dimension
6mm,7mm , 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm,17mm, 18mm, 19mm, 20mm.22mm
Terms of Delivery
EXW, FOB, CFR, CIF, etc.
Terms of Payment
L/C, T/T, etc.
MOQ
NO MOQ
Package
Standard export package, safety enough.
Lead Time
7~10days for 1x20container.

Service support

1.24 hours technical supporting by e–mails.

2. 24 hours calling service & online service.

3. Oversea door–to–door service available.

4. User manual and detailed operating video1CD available.



Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 5

Heat Roller Press Machine for Double Glass

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 6

1.Main features

1) Transmission adopts changeable frequency speed adjustment according to environment spot, the speed is adjustable freely to improve efficiency.
2) High efficiency power-saving design; control working temperature automatically.

2.Technical Parameters

Brand name LIJIANG
Model LJRY1500
Power voltage: 380V 50Hz
Total power: 18.75 KW
Max Glass Size: 1500*2000mm
Process thickness: ≤50mm
Glass carry speed: 1-5m/min
Overall dimmension 2750*1850*1350(mm)
Weight 1200kg



Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 7

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 8

Machine details

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 9Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 10

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 11Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 12









Horizontal Glass Washing and Drying Machine LJWBQJ1600A

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 13

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ1600A
Automatic Horizontal Glass Washing and Drying Machine LJWBQJ1600A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment. This is a High cost performance washer for insulating glass manufactuer and window and door processing factory. Fast working and easy to operate.
Maximum glass width
1600mm
Minimum glass specification
400mm×400mm
Glass thickness
3mm-12mm
Speed range
max=1-10m/min
Table height
900±25mm
Power source
380V 50Hz











Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 14Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 15

Double  Glass Production Line Warm Edge Thchnolgy Butyl Aluminum Sapcer and Heat roller Press Machine 16
