Product Details:
|
| Name: | Butyl Sealing Machine | Max Working Speeding: | 47m/min |
|---|---|---|---|
| Max Sapcer Width: | Can Be Request | Type: | Insulating Glass Production Line |
| High Light: | insulating glass line,glass processing machines |
||

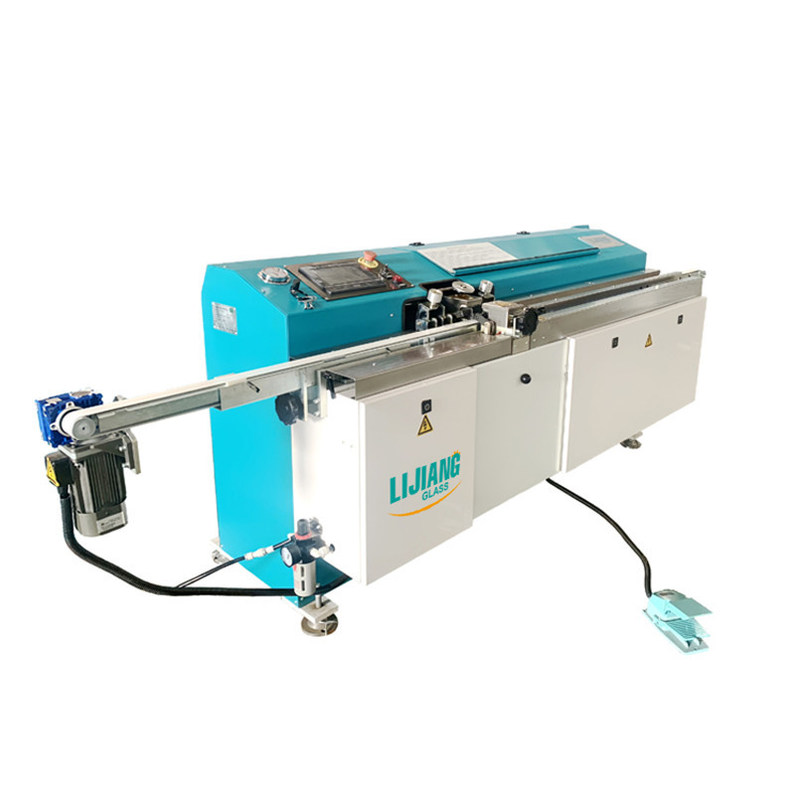

Product overview of Butyl extruder machine
High Speed Butyl Sealing machine for Insulating Glass with New Technolgy LJTJ01.Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
Butyl Sealing machine use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.It is very popular with energy-saving.
Butyl Coating machine squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer.
Butyl Extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main feature of Butyl Sealing machine
· Touch-screen operation, which makes the machine simple and practical
· According to the changed coating speed
· Stable temperature and it is convenient to adjust the sealing material automatically
· Recognize the aluminum spacer size automatically
· Easy to change butyl system
Shape spacer model
Automatic spacer width control
Germany Siemen system
Technical parameters
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Related Products
Automatic Butyl Extruder Robot
Main feature
· Automatic butyl volume display function.
· Circular arc butyl sealing structure.
· Extruder head height adjustment structure
· PLC control system, touch screen interface.
· Frequency control system
· Abroad technology, pneumatic and hydraulic supercharging system.
· Automatic centering and clamping structure.
· Separate extruder head structure.
· Preheating function Butyl cylinder swing mechanism
· Important control parts adopt imported brand.
Technical parameter of Butyl Extruder Robot
| Squeeze pressure | 10-14MPa |
| Temperature | 110-140ºC |
| Aluminum spacer width | 6-24mm |
| Speed | 0-27m/min |
| Diameter of butyl cylinder | 190mm |
| Air supply | Flow:0.4m/min |
| Air pressure | ≥ 0.8MPa |
| Total power | 220V 50HZ 2.5KW |
| Dimension | 3000*620*1102mm |
