Product Details:
|
Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm / 19mm |
Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
High Light: | glass processing machines,insulating glass line,glass processing machines 10m/min |

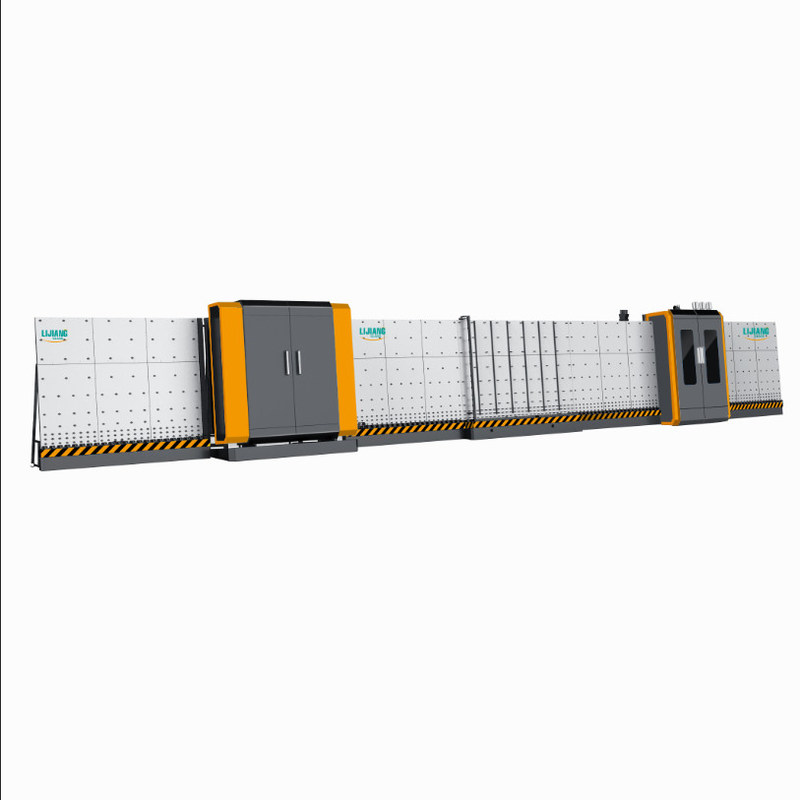

Vertical Insulating Glass Production Line LJBZ2535G
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Main feature:
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Features
• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.
• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.
• High-speed IG processing line
• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.
• Installing two spacer frames for two IGU by one workman.
• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.
• From transfer part to pressing part, each part is divided.
• Suitable for mass production in a factory, Ultra-fast speed.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research
and development, sales and service into a whole. As it is close to Beijing-Shanghai high
-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment
by learning from famous experts, establishing the research and development centers, cooperating
with domestic and foreign well-known enterprises, importing advanced technology and so on. Now,
our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua,
Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment
of the company, our products have been exported to Europe, America, South America, the Middle
East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked
with the well-known domestic research institutes, such as the North China Industrial Group, Shandong
University and others, to constantly improve the level of technical research. So far, we have independently
produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the
automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic
butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you
for win-win situation and jointly creating a new world.
