Product Details:
|
| Product Name: | Aluminum Bar Bending Machine | Type: | LJZW2020 |
|---|---|---|---|
| Max. Bending Size: | 2000mm*2000mm | Min. Bending Size: | 250mm*200mm |
| Aluminum Spacer Width: | 5.5-27mm | Dimensional Error: | ±0.5mm |
| Angle Error: | ±1º | ||
| High Light: | 5.5mm Aluminum Bar Bending Machine,Insulating Aluminum Bar Bending Machine,5.5mm glass bending machine |
||

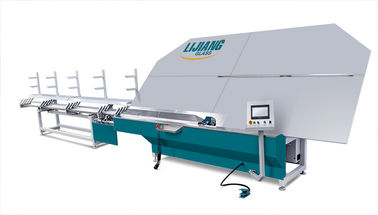

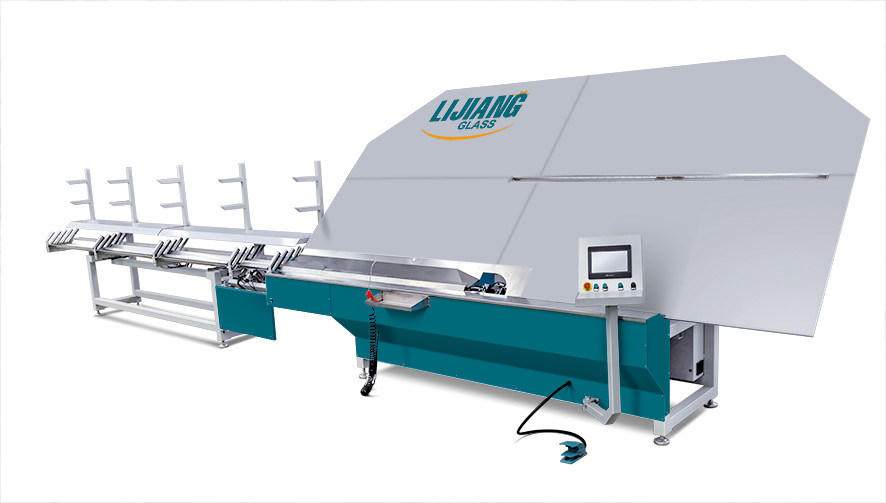

Insulating glass aluminum bar bending machine For Insulating Glass processing
Automatic gasket bending machine is a special equipment for manufacturing aluminum frame
Insulating glass replaces traditional manufacturing technology. The device can
Use one aluminum strip at a time to make various convex polygonal aluminum frames,
Thereby enhancing the strength of the aluminum frame, making the sealing effect of the aluminum frame
Hollow glass is better.
Using Siemens PLC control system
Siemens servo has 4
With 12 sets of racks, more gaskets of different sizes can be stored. Use Siemens
Servo changes to different racks.
Automatically cut and feed aluminum gasket
Continuously curved spacer frame
(1) Slot: Four storage slots can save one to four types of aluminum gaskets
The same width or different widths can be automatically accessed when the device is running.
The positions of the four slots can be switched freely;
(2) Charging platform: the charging platform will provide operators with an operating platform
Add material in the trough;
(3) Automatic feeding system: when the equipment is running, the automatic feeding system
Transfer the aluminum gasket to the preparation position; during the bending process, if the aluminum
The shim for bending has reached the end, the automatic paper feeding system will be completed
The following actions of the aluminum gasket to ensure the continuity of the bending work and realize
No tailing function;
(4) Slot changing mechanism: If the aluminum strip in the pre-groove is completed, it is
A system that can be used to replace materials to replace materials into troughs.
(5) Foot switch for changing slot: used to open the locking device and operate
The mechanism of change.
Automatic drill gas filling hole (Optional)
Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and
stainless steel ( Optional) and so on.
Printing paper label sticker function (Optional),could remove it easily.
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
