Product Details:
|
Product Name: | Cork Separator Pad | Type: | 18*15mm |
---|---|---|---|
Thickness: | 2-6mm | Material: | Composition Cork |
Surface Treatment: | Natural | ||
High Light: | 6mm Cork Separator Pads,18*15mm Cork Separator Pads,6mm insulating glass machine |

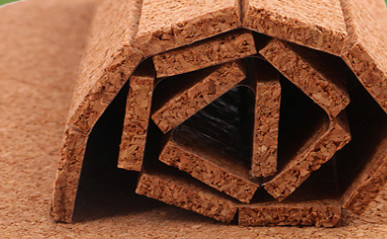

Cork Separator Pads of pressure and wear resistance for glass protection
It is mainly used for shock-proof packaging in the glass deep-processing industry, and is widely
used in architectural glass, automotive glass, furniture glass, stone, doors and windows, etc.
The glass is effectively separated during transportation, packaging, storage, etc., which comp
letely improves the various drawbacks of the previous paper packaging (prevents various phe
nomena such as glass scratching, mold, and cracking) and the product does not stick to the
glass. Trace, low cost, deeply loved by glass deep processing industry.
When the second piece of glass arrives at the photoelectric switch at the end of the frame checker, the glass will decelerate and stop at the glass location, the aluminum frame positioning system will be automatically removed, and the aluminum frame will be positioned and placed. If it is found that the glass has a problem, after it is removed, step on the foot switch again, start the transmission, the next glass over, still as the second piece of framing.
When assembling the aluminum frame, the user can adjust the glass side positioning and the adjusting handwheel positioning under the aluminum frame to realize the depth of the different pairs of glue.
Step foot switch of frame checking section,aluminum frame, glass positioning automatically retract, glass inversion, preventing the aluminum frame orientation to glass, aluminum frame assembly section and the flat press loading section starts. If the flat pressing section is not ready to enter the glass, the glass will be waiting at the end of the plane. After the plate is ready, the glass is automatically transmitted and the laminated beam is started. Transferred to set forward positioning distance, on the lateral positioning block off, the positioning is raised, in accordance with the board before the set pressure and torque moment glass together, to reach the set pressure of time, chuck release, before the board at a location, open to the moment of pressing the positioning, and then transfer system start up, front plate opens to the initial position.
If the glass exceeds the length, the secondary pressing is automatically started.
Click the "triple glass mode" on the working page. The production process of the triple glass is similar to that of the double glass. The difference is that the sucker continues to work after the second sheet of glass is pressed and landed, and the front panel is opened to the initial position. The third piece of glass decelerates to a stop at the location of the inspection framing section, and after the manual installation of the aluminum frame, the foot switch is activated to start the glass and stop at the photoelectric part at the end of the flattening material. After the flat part is opened, the pressure plate is opened, After setting the forward positioning distance, open the outer positioning block to close and lower the positioning to lift. The front plate starts to press the glass under the set pressing torque, and after reaching the set pressing time, the suction cup releases and the front plate Open, down position fall and then start the transmission system starts, the front plate open to the initial position. Three pieces of glass complete.
Operation procedure of shaped glass
Press the automatic button, press "Abnormity Mode" in the working page, and the automatic button of washing machine. After cleaning the glass into the check box machine, stop automatically at the end of the photoelectric switch, check the glass cleaning quality, if the glass is no problem, step on the foot switch, the glass started to enter the next paragraph; if the glass failed, remove it After step by step switch, transmission start.
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
