Product Details:
|
| Certification: | CE / UL | Name: | Aluminum Spacer Bending Machine |
|---|---|---|---|
| Voltage: | 380V 50Hz 3P | Product Name: | Automatic Spacer Bending Machine |
| Function: | Bending Aluminum Spacer Bars | Warranty: | 1 Year |
| Max Bending Size: | 2500mm*2500mm | Condition: | New Machine |
| Spacer Width: | 6mm - 27mm | ||
| High Light: | UL Spacer Bending Machine,PLC Spacer Bending Machine,PLC glass drilling machine |
||

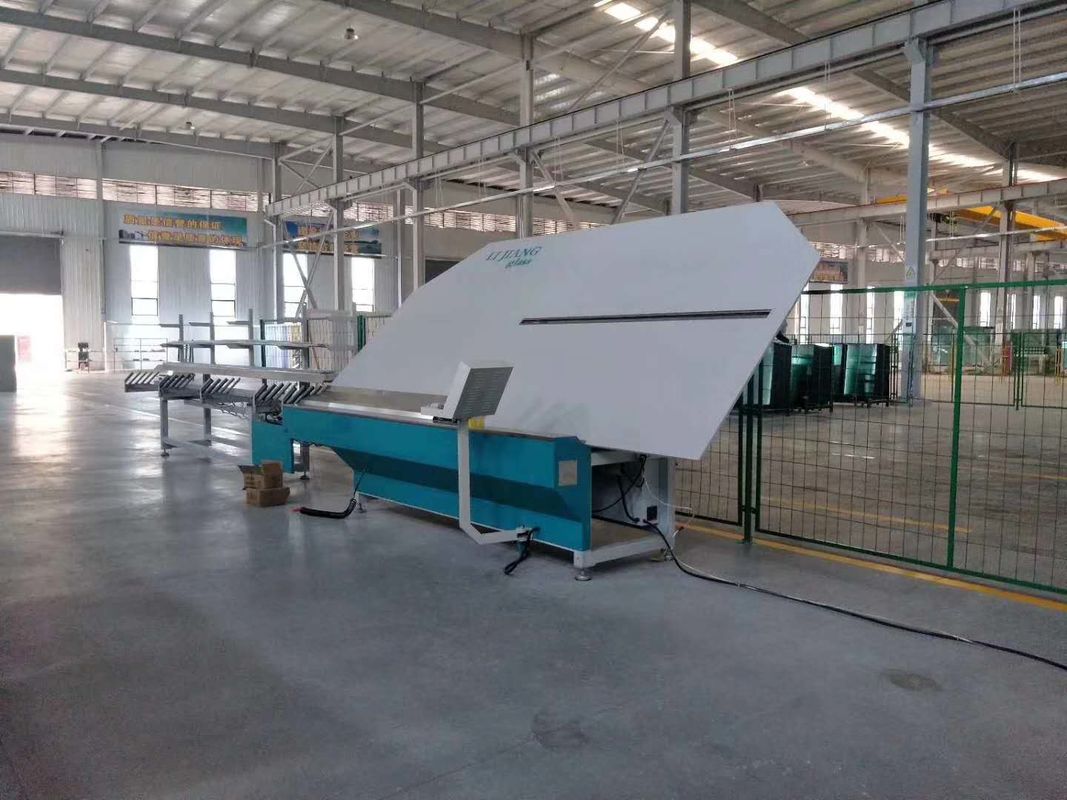

Aluminum Spacer Bars PLC Control Aluminum spacer Bending Machine
Main feature :
• Siemens 1200 PLC control system, fast working speed
• 4 groups of storage (2 or 12 groups of storage are optional)
•Automatically cut and feed aluminum gasket
• Automatically avoid pins when bending and cutting
•Continuous bending frame
•The size of aluminum gasket is 6A-27A
• Different bending tools for different size gaskets
• Suspend and reset equipment to handle equipment failures
• Curved aluminum gasket, smooth stainless steel, warm gasket
•Connect to ERP system (optional)
•USB input function, directly read excel format files
• Automatic drilling to fill argon gas (optional)
• Gasket printing code function (optional)
•Print label sticker function (optional)
• Curved shape frame. Use round wheels to bend round frames or frames with rounded corners. Minimum R60, maximum R150, gasket size: 6A-16A). Different size aluminum bars require different size tools (optional)
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Main performance features:
Except for start and stop operations, all operations are completed on the touch screen, and the operating platform can be moved. Chinese operation interface, easy to operate, natural and easy to understand.
You can set the size data of the glass plates of 4 specifications and 32 specifications (8 types for each specification). The equipment can automatically calculate and classify aluminum frame data according to each size. Continuous processing can greatly improve efficiency and speed.
Using CNC servo feeding system, the adjustable precision of aluminum frame size is 0.1M m/m
The CNC bending angle control system is adopted, and the adjustable accuracy is 0.1°.
The tailing-free design can not only realize cutting loss, but also realize part processing.

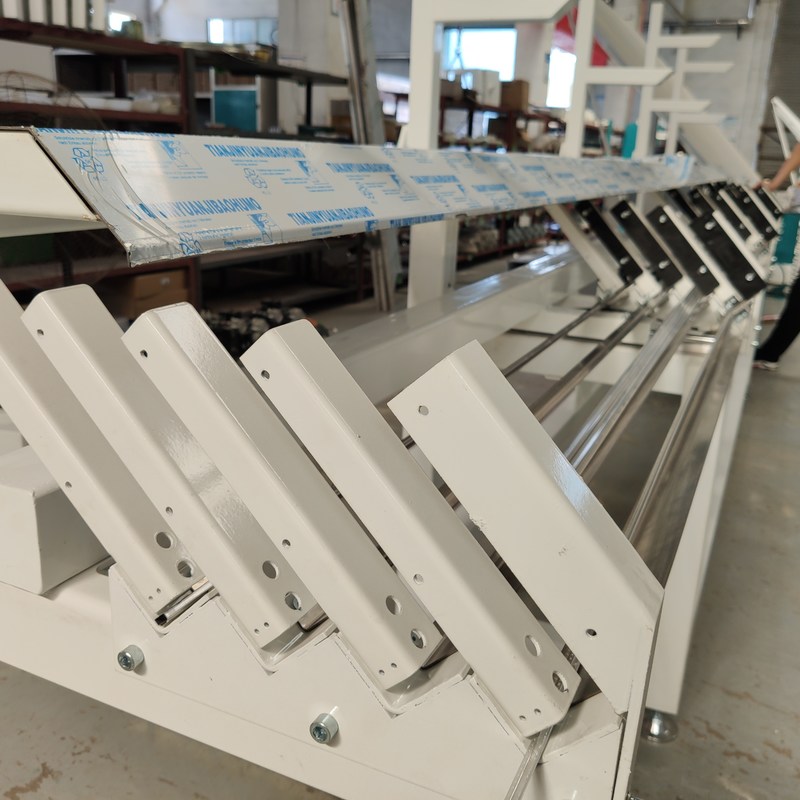

The four automatic storage tanks can store 4 kinds of aluminum strip materials with a length of 4-6m.
It has the function of high-speed automatic continuous cutting of aluminum strip.
The bending speed should be automatically adjusted according to the size of the aluminum frame to avoid deformation of the large frame and ensure a high-speed continuous small frame.
The aluminum strip is automatically connected, and the design of the aluminum strip joint avoids smart operations (avoid bending or cutting the joint part).
High-speed continuous production function, the operator only needs to ensure that there is material in the material tank, and remove the folded aluminum frame from the bending machine (the equipment has a fault alarm function, which can display the location and cause of the fault), and bend to the set amount The bending machine will stop automatically.
Sleep energy saving function and emergency stop protection.
All functions can be operated manually to meet the needs of debugging and maintenance.
There is no online material reminder, sleep reminder, fault reminder, work reminder, there is no material in the process, it will automatically stop waiting for the material, and continue to complete the process after feeding.
Reasonable judgment function of aluminum frame data, unreasonable data rejection and prompt.
The startup system is fully automatic reset.
The automatic cutting of the aluminum frame is completed.
Quickly maintain and adjust the panel design.
Function of curved aluminum frame and special-shaped frame (unilateral, bilateral, three-sided, quadrilateral, hexagonal, octagonal, etc.)
Output counting function, intelligent troubleshooting tips.
