Product Details:
|
| Production Name: | Aluminum Spacer Bar Bending Machine | Max Spacer Size: | 2000mm*2000mm |
|---|---|---|---|
| Spacer Types: | Aluminum Spacer / Ss Or Warm-edge Spacer | PLC: | Touch Screen |
| Warranty: | 1 Year | ||
| High Light: | 2000mm*2000mm frame bending machine,Inner bar bending machine |
||
Double Glazing Glass Inner Spacer Frame Bending Machine Automatically
After sales service from LIJIANG GLASS for automatic the aluminum spacer bending machine
Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
3. Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.

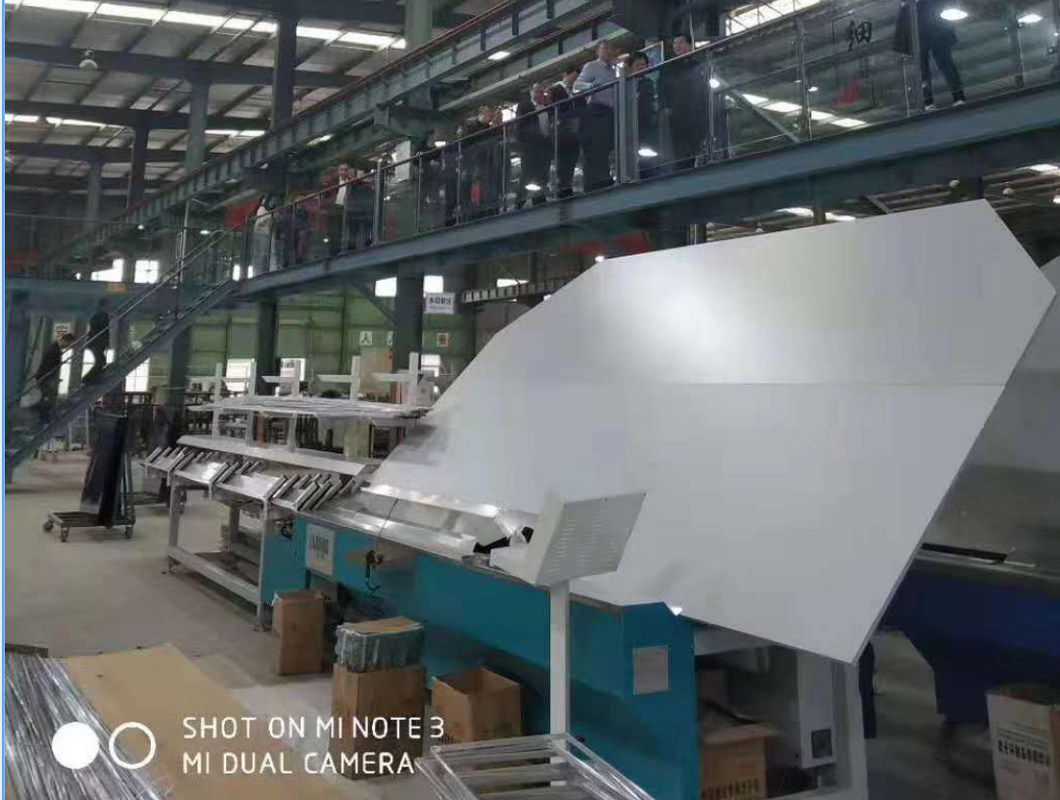

Automatic Spacer Bending Machine For Making Double Glazing Glass Inner Frame
• Siemens 1200 PLC control system with fast working speed

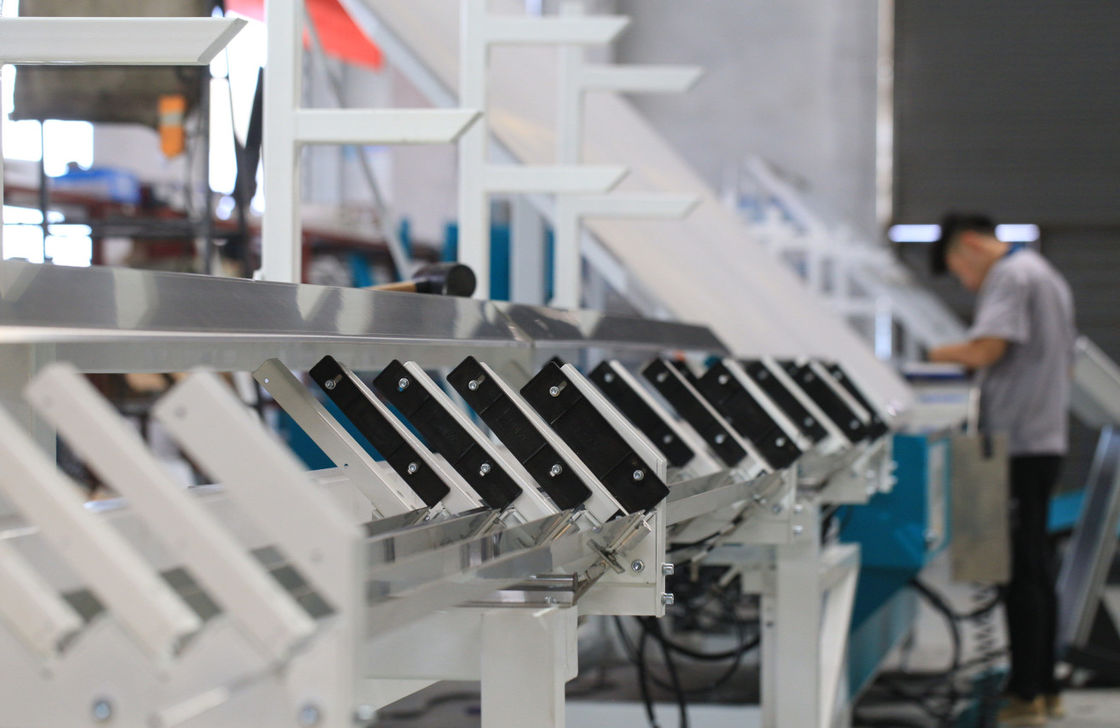

• 4 groups of spacer racks
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read the excel format file directly
Optional functions
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Tachnical Data:
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension 尺寸 | 10500mm*2200mm*2600mm |
