Product Details:
|
| Name: | Automatic Warm Spacer Bending Machine LJZW 2020A | Min. Bending Size: | 250mm*200mm |
|---|---|---|---|
| Aluminum Spacer Width: | 5.5-27mm | Dimensional Error: | ±0.5mm |
| Angle Error: | ±1º | ||
| High Light: | Servo edge bending machine,27mm glass bending machine |
||
² Application

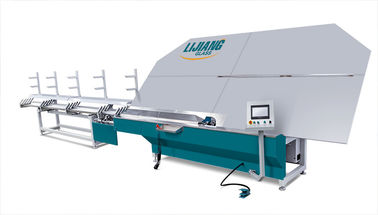

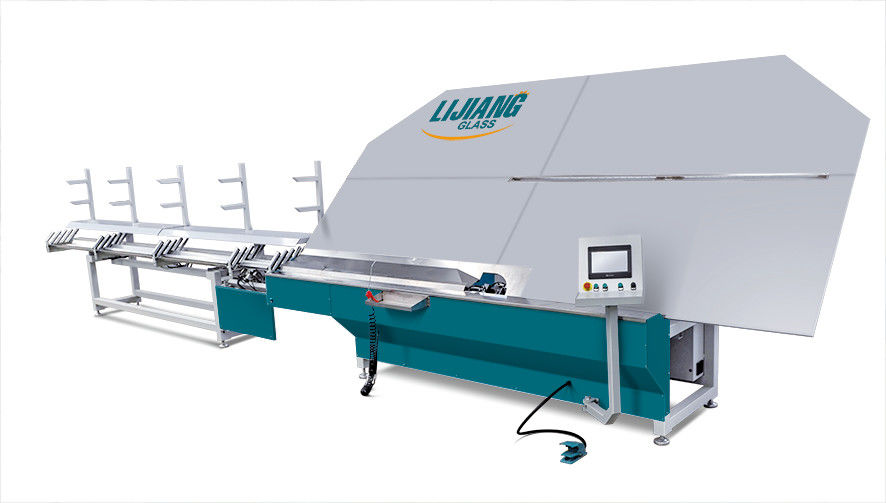

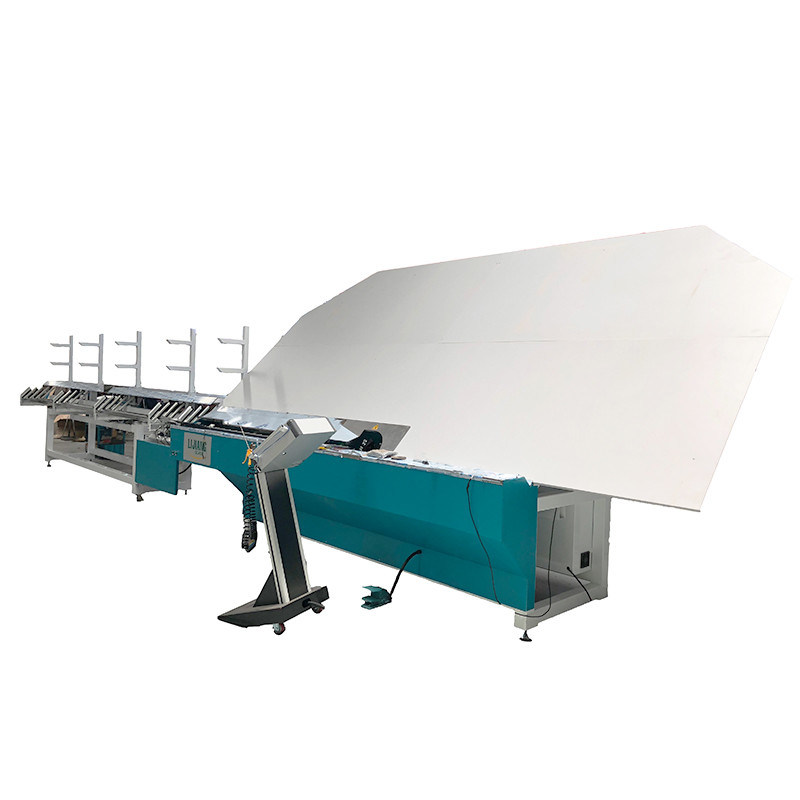

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass
, which replaces the traditional fabrication technology. Automatic spacer bending machine can make a variety
of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength
of the aluminum frame, making the sealing effect of the insulating glass more better.
Main feature
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures

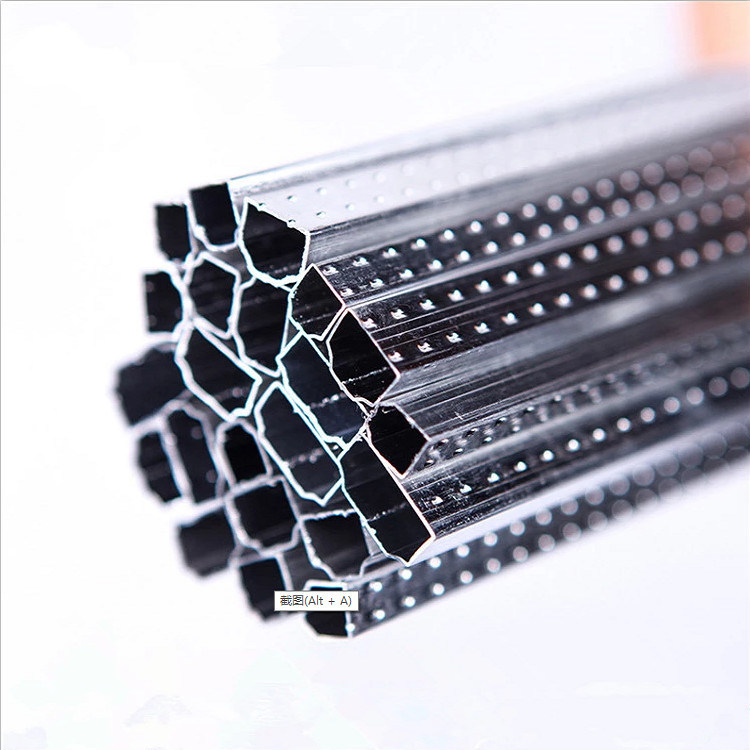

• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)

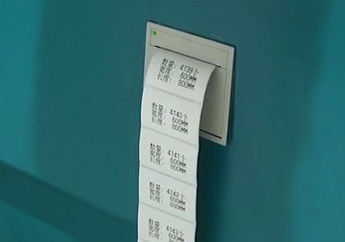

• Printing label sticker function (Optional)
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and
service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous
experts, establishing the research and development centers, cooperating with domestic and foreign well-known
enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing,
Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises.
Since the establishment of the company, our products have been exported to Europe, America, South America,
the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked
with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University
and others, to constantly improve the level of technical research. So far, we have independently produced the
vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer
bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine,
its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win
situation and jointly creating a new world.
