Product Details:
|
| Product Name: | Insulating Glass Aluminum Spacer Bar | Material: | Aluminum |
|---|---|---|---|
| Width: | 5.5-35MM | Package: | Carton |
| Used: | Insulating Glass Making | ||
| High Light: | Glass aluminium spacer bar,35MM aluminum spacer bar |
||

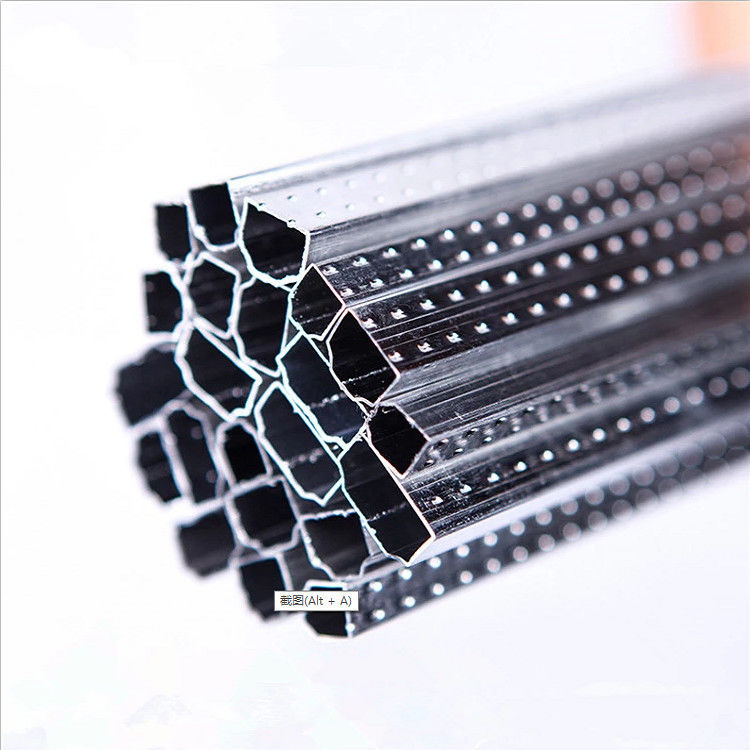

Insulating Glass Aluminum Spacer Bar 6A
Aluminum products made of high-purity aluminum as raw materials, after dozens of processes,
the surface is smooth, non-oxidizing, non-corrosive, does not have any effect on the desiccant,
effectively eliminates the atomization phenomenon, is a new type of environmentally friendly
building materials product.
Automatic aluminum spacer bending machine is controlled by PLC. By virtue of the mode of
human-machine interactive data input on the touch screen, the facility can get the expected
parameter data in different specifications of rectangular aluminum frames, or the convex
polygon’s edge and corner data composed of arc-shaped section or straight flange not more
than 8 edges. Simultaneously, acquire the quantity of the aluminum frames that are required
to be processed, as well as the parameter of other control equipment in accurate operation,
which essentially satisfy the required shapes of the current insulating glass.
Product Description and advantage:
1. Material:3003 alloy aluminum
2.5.5mm side welding line,100% guarantee bendable.
3. wall thickness is within 0.30~ 0.35mm,and tolerance is ±0.025mm.
4. Appearance:Surface is Bright smooth and has no knocking. Air hole is uniform and in order.
5. It conforms to the standard requirement of “Insulating Glass
6.Size:5.5mm-35mm.
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |

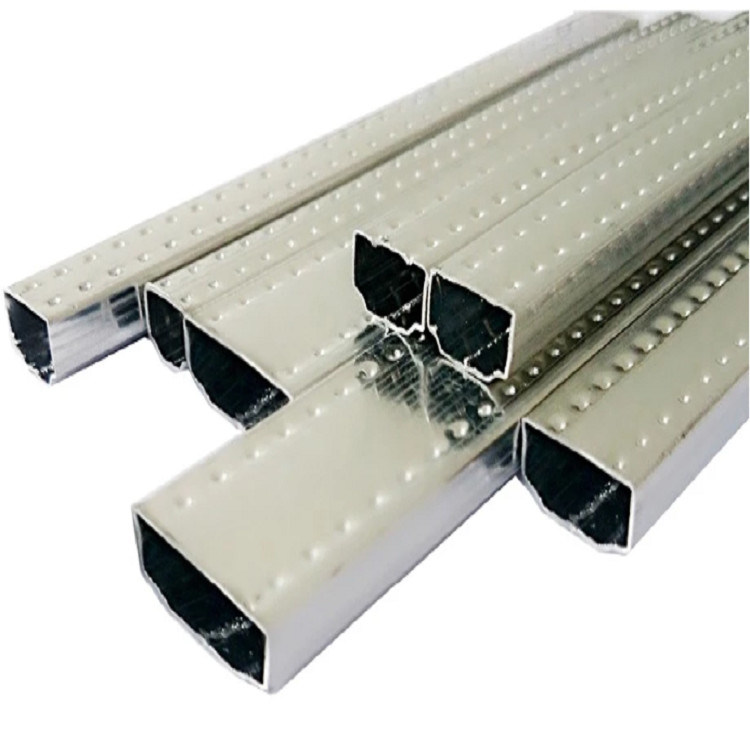

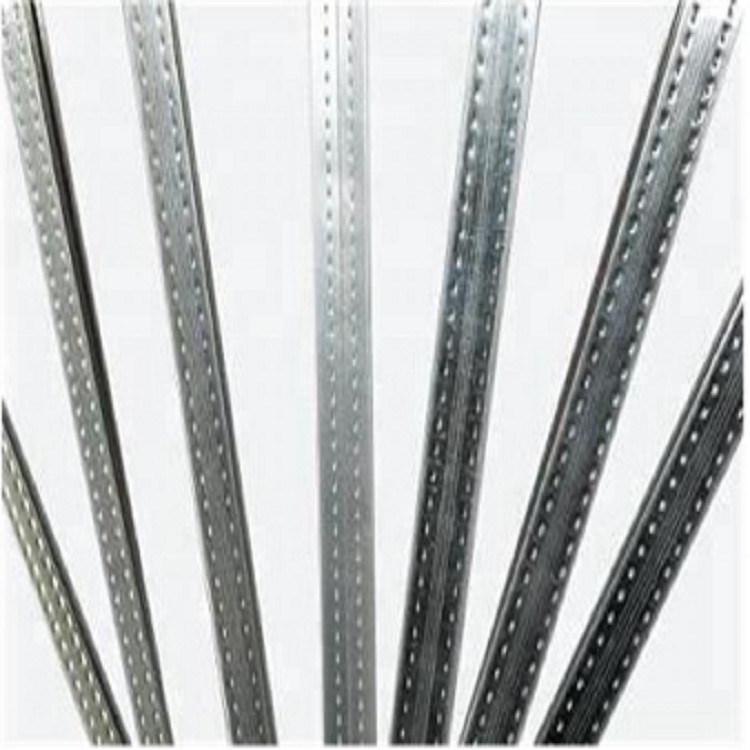

The high-frequency welding aluminum spacer has the international standard height and perfect
cross section, and the surface is bright, beautiful and single-sided double-row holes to ensure
the activity of the desiccant. Strictly control the procurement and production errors of raw
materials, no deformation, accurate and stable size, from product quality to product appearance
are perfect.
Automatic spacer bending machine is a special equipment for making aluminum frames of
insulating glass, which replaces the traditional fabrication technology. This equipment can
make a variety of convex polygonal aluminum frames by one aluminum strip in one time,
thus strengthening the strength of the aluminum frame, making the sealing effect of the
insulating glass more better.
•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
Bend spacer frames continuously
