Product Details:
|
| Name: | Double Glazing Glass Processing Line | PLC: | Siemens |
|---|---|---|---|
| Advantage: | Gas Filling On Line | Max Glass Size: | 2000*2500mm |
| Glass Thickness: | 3-15mm | ||
| High Light: | 3mm insulating glass line,Glazing insulating glass equipment,Insulating Glass Production Line 3mm |
||
LIJIANG GLASS- FOR WORLD GLASS MANUFACTURE SERVICE

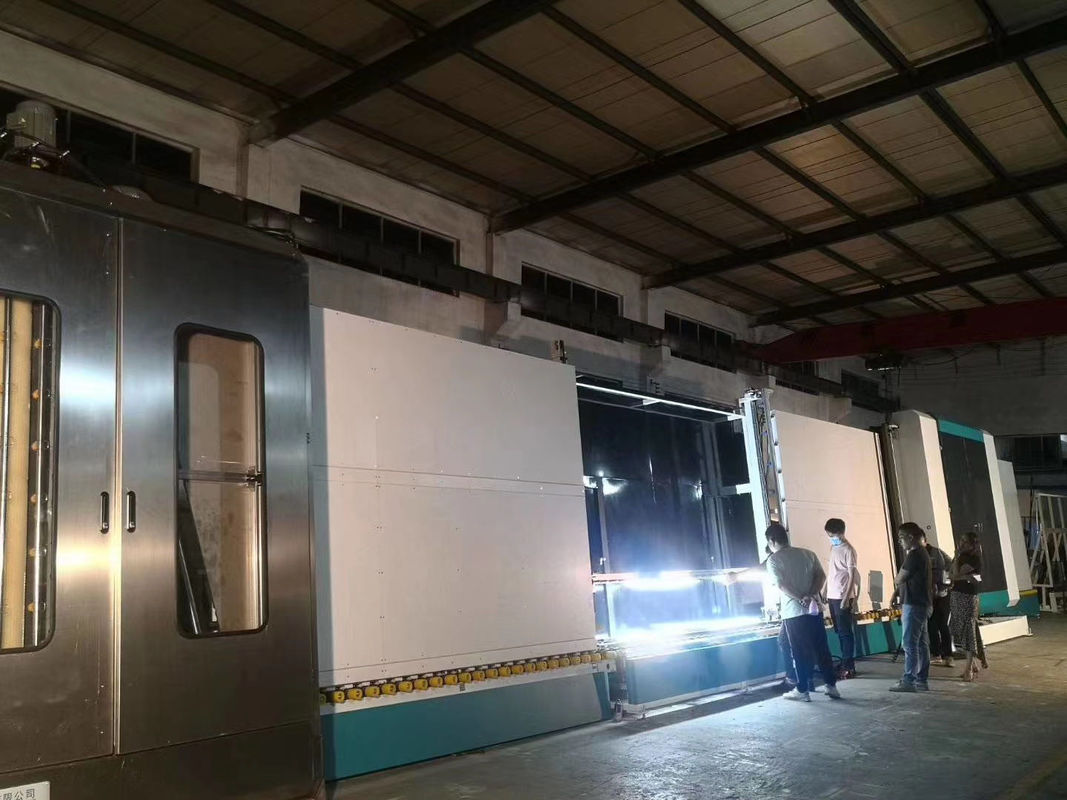

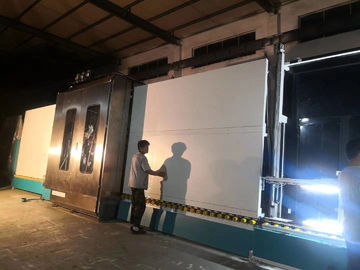

Production overview of insulating glass equipment
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

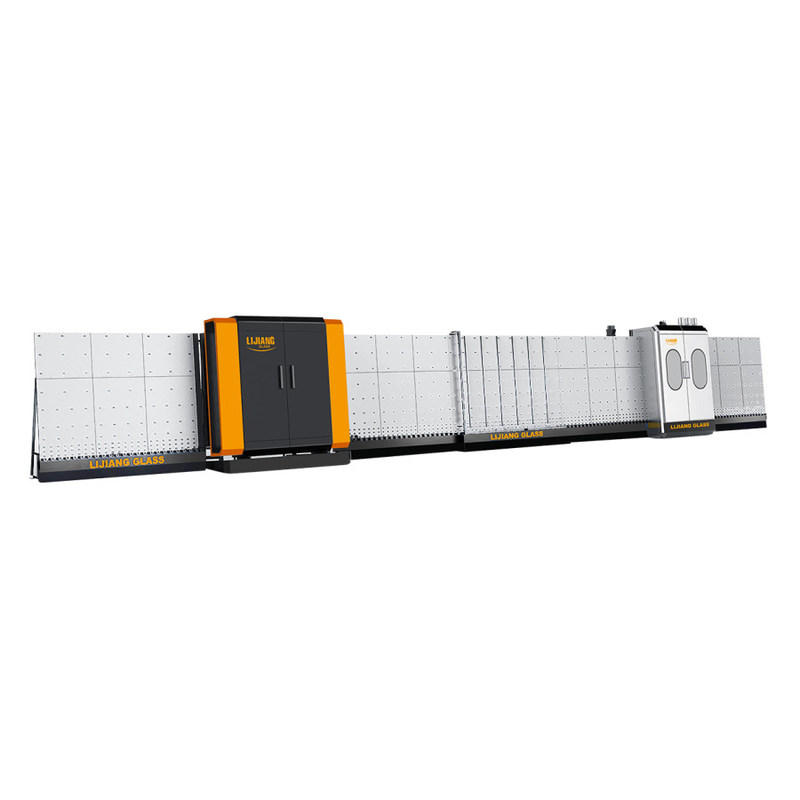

The whole line include 7 parts: (from right to left)
Features of glass production machinery
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading section
►SIEMENS CONTROL SYSTEM
►WATER TANKER SHOWING
►ROLLERS SHOWING
|
Max. glass size |
2500mm*3500mm |
|
Min. glass size |
280mm*400mm |
|
Glass thickness |
3-15mm / 19mm |
|
Insulating glass thickness |
50mm / 60mm |
|
Glass washing speed |
2-10m/min |
|
Glass conveyor speed |
45m/min |
|
Washing brushes |
3 pairs |
|
Water supply |
Water consumption:0.5t/h conductivity:40μs/cm |
|
Air supply |
Flow: 0.8m/min |
|
Air pressure |
≥0.8MPa |
|
Total power |
3P 380V 50HZ 40KW |
|
Dimension |
23500*3500*3700mm |
|
Weight |
6500kg |
Parts list
| Components | Brand | Remark |
| Servo motor | GERMAN SIEMENS | For stepped glass |
| Servo driver | GERMAN SIEMENS | For stepped glass |
| Servo motor | GERMAN SIEMENS | For transfer |
| Servo motor | GERMAN SIEMENS | For press |
| PLC | GERMAN SIEMENS | |
| Low voltage component | GERMAN SIEMENS | |
| Frequency converter | GERMAN SIEMENS | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Japan SMC | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan Tiande | |
Related product
Cantilever crane LJXJ300
feature of glass lifter
1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Tech Parameter
| Safety-absorption | 200KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
