Product Details:
|
Name: | Lijiang Argon Machine Insulated Glass Insulated Glass Production Line | Power Supply: | 380V,50HZ Or Customized |
---|---|---|---|
Total Power: | 40 KW | Washing Speed: | 2-10m/min |
Condition: | New | ||
High Light: | Argon insulating glass machine,1 000 Pcs glass production machinery,1000 Pcs Insulating Glass Production Line |

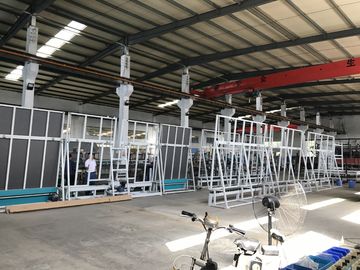

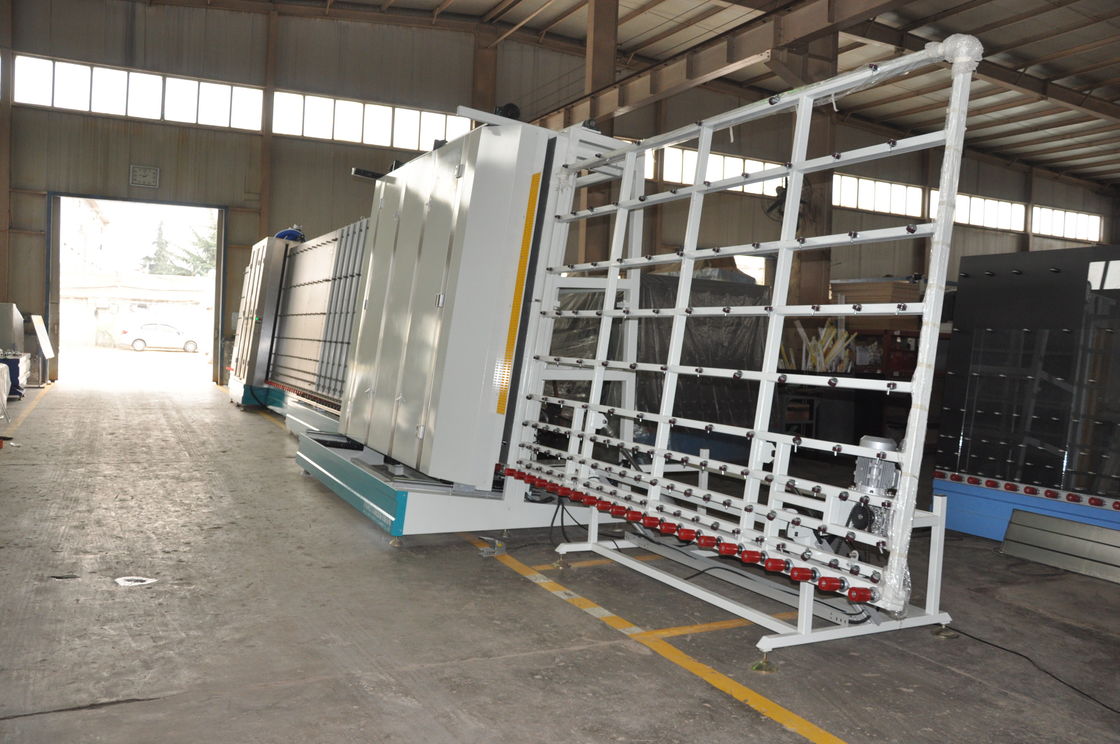

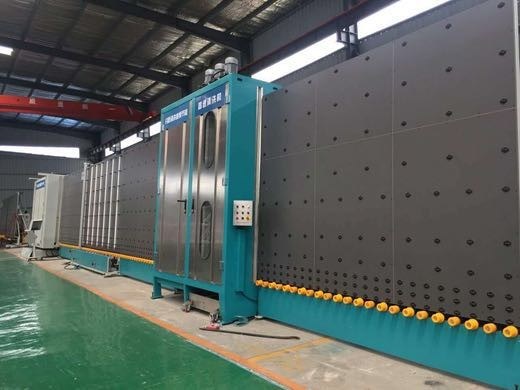

Lijiang Argon Machine Insulated Glass Insulated Glass Production Line
The insulating glass machine can perform the following functions: Glass cleaning, aluminum frame insertion, normal double glazing, simple triple glazing, shaped glass and double glazing secondary pressing.
Insulating glass machine is a special equipment in the production of insulating glass for aluminum strips, which has the advantage of low footprint, high efficiency, reliable operation and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, the concept of European design, simple and intelligent management;
2, world-famous key component brands, ensures stable operation and long service life;
3, for high quality glass processing, such as reflective glass, low E glass, tempered glass and laminated glass;
4, large-scale glass processing, a variety of models and applications;
5, high output capacity, 1,000 pcs. Output within one business day;
6, suitable for double-layer, triple-layer, stepped sheet and abnormally shaped glass;
7, automatic filling of argon air gas during glass sheet collection;
8, PLC control system, touch screen operation;
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Power Supply | 380V,50HZ or customized |
Total Power | 40 KW |
Washing Speed | 2-10m/min |
Max. working speed | 45m/min |
Min.Glass size | 450*280mm |
Max. Glass size |
2500*3200 2500*4500(second pressing) |
Washing glass thickness | 3-15mm |
Max. Insulating glass thickness | 50mm |
Weight | 8000kg |
Dimension (L*W*H) | 23600*3500*3700mm |
