Product Details:
|
| Name: | Argon Gas Panel Press Igu Line 2000 Insulating Glass Production Line | Power Supply: | 380V,50HZ Or Customized |
|---|---|---|---|
| Washing Speed: | 2-10m/min | After-sales Service Provided: | Field Installation, Commissioning And Training, Online Support, Video Technical Support |
| High Light: | Igu insulating glass line,2000 insulating glass machine,Argon Gas Panel Press Igu Line |
||

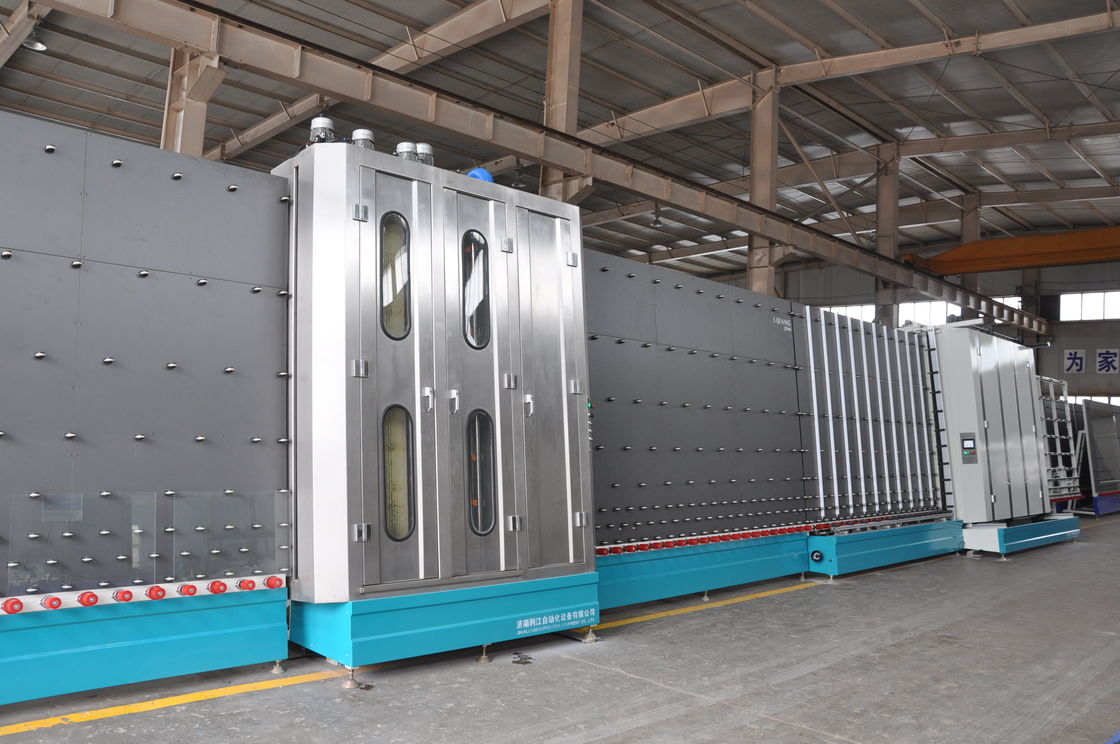

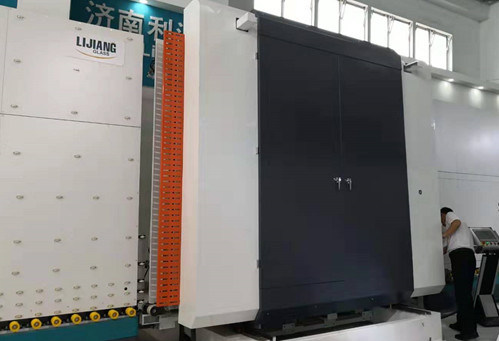

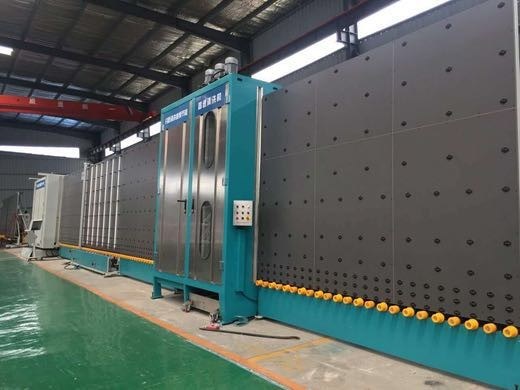

Argon Gas Panel Press Igu Line 2000 Insulating Glass Production Line
Insulatiing glass machine can complete the following functions: Cleaning glass, placing aluminum frame, normal double glass, ordinary triple glass, shaped glass and double press glass.
Insulatiing glass machine is a special equipment in the production of insulated aluminum strip glass, which has the advantage of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, World famous brand for the main components, ensuring stable operation and long service life;
3, Designed to process high quality glass, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large scale glass processing, various designs and customization are available;
5, Large output capacity, output 1,000 units in a working day;
6, Can process for double layer, third layer, stepping plate and irregularly shaped insulated glass;
7, Automatic argon gas charging while the glass plate assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
