Product Details:
|
| Name: | Vertical Glass Edge Grinding Machine | Usage: | Insulating Glass Processing |
|---|---|---|---|
| Application: | Insulating Glass Making | Max Glass Size: | 2500*4500mm |
| Min Glass Size: | 300*350mm | Grinding Wheel Width: | 10/12/15mm |
| Glass Thickness: | 3-15mm | Conveyor Speed: | 30m/min |
| Edge Deleting Speed: | 0-15m/min | Servo Control System: | 6 |
| High Light: | 45m/min insulating glass machine,15mm double glazing glass machine |
||

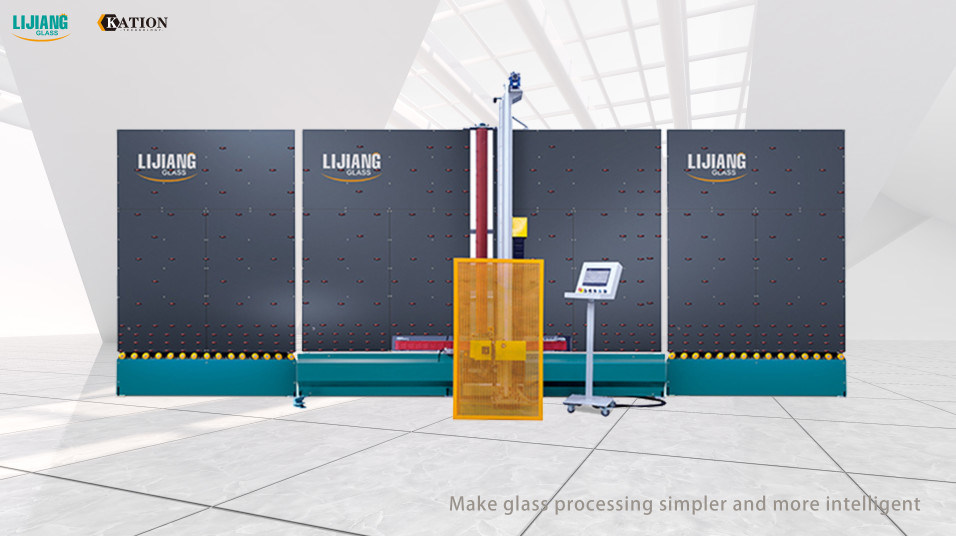

Description of Vertical Glass Edge Grinding Machine
Vertical Glass Edge Granding Machine LJCM2545 is used to remove low-e film from edges of the glass.Glass Edge Sanding Machine can be connected to the insulating glass production line and is necessary equipment in insulated glass processing
Main feature of Glass Edge Grinding Machine
1.PLC control system,touch screen interface
2.Two-way glass access
3.Edge deletion is adjustable
4.Automatically distinguish low-e surface
5.Intelligent control system, can recognize batch processing
6.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
7.Automatically measure size
8.High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Technical parameter of Low-e Glass Edge Grinding Machine
| Max.glass processing size | 2500*4500mm |
| Min.glass processing size | 350*500mm |
| Glass thickness | 3-15mm |
| Edge deleting width | 10-50mm |
| Glass conveyor speed: | 30m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air supply | Flow 0.2m3/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | 8000*2500*3400mm |

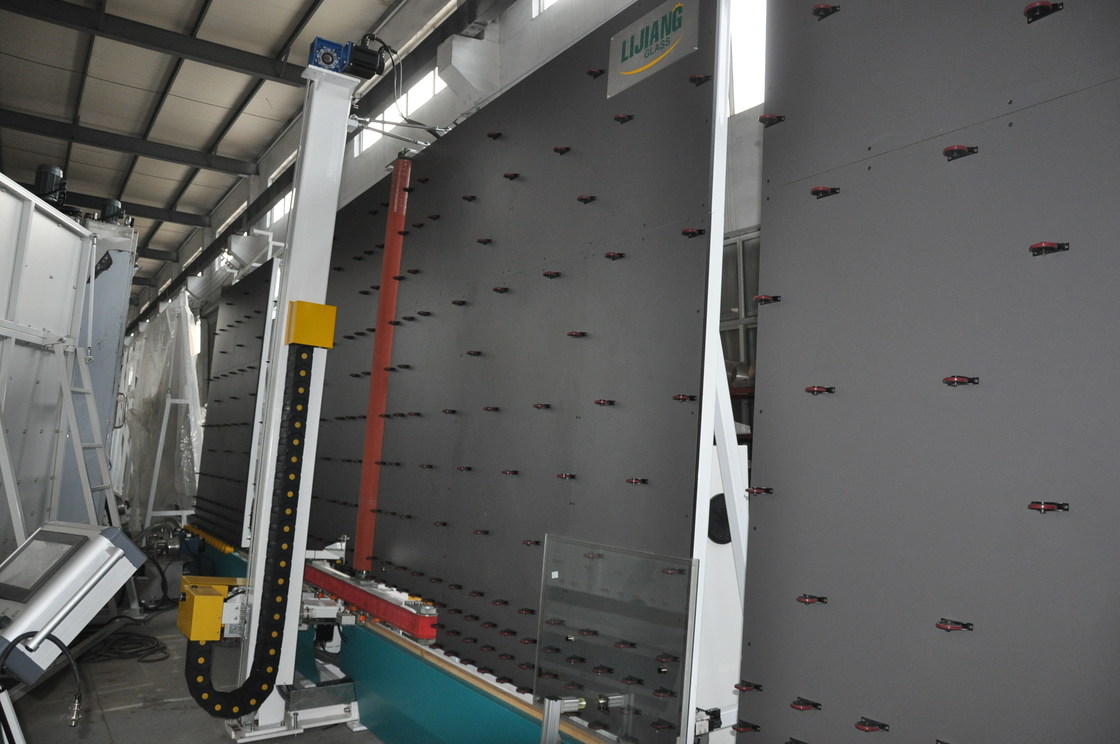

Detail picture of Low-e Glass Edge Deleting Machine
Related products
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
