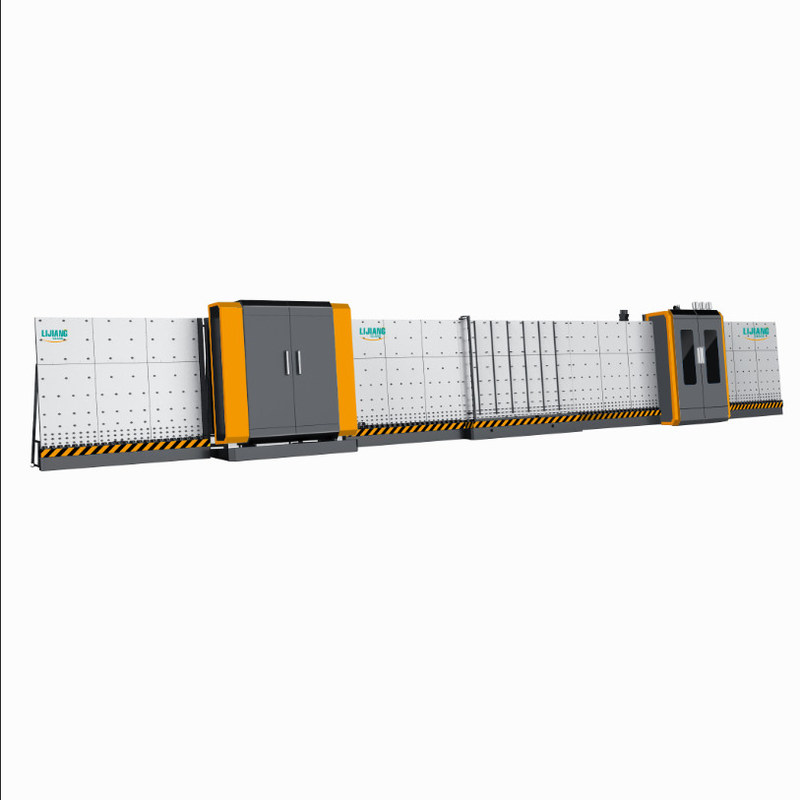

Product Details:
|
| NAME: | Automatic Vertical Double Glazing Production Line | Min Glass Size: | 450*280mm |
|---|---|---|---|
| Application: | Insulating Glass Making | Max Glass Size: | 2500*3500mm |
| Power(W): | 37kw | Dimension(L*W*H): | 19500*3500*3200mm |
| Glass Thickness: | 50mm( Can Be Special Design) | Weight: | 6000kg |
| High Light: | 45m/min insulating glass machine,15mm double glazing glass machine |
||
Description of Vertical Double Glazing Production Line
Insulated Glass Production Line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section.
Advantage of Vertical Insulating Glass Production Line
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function

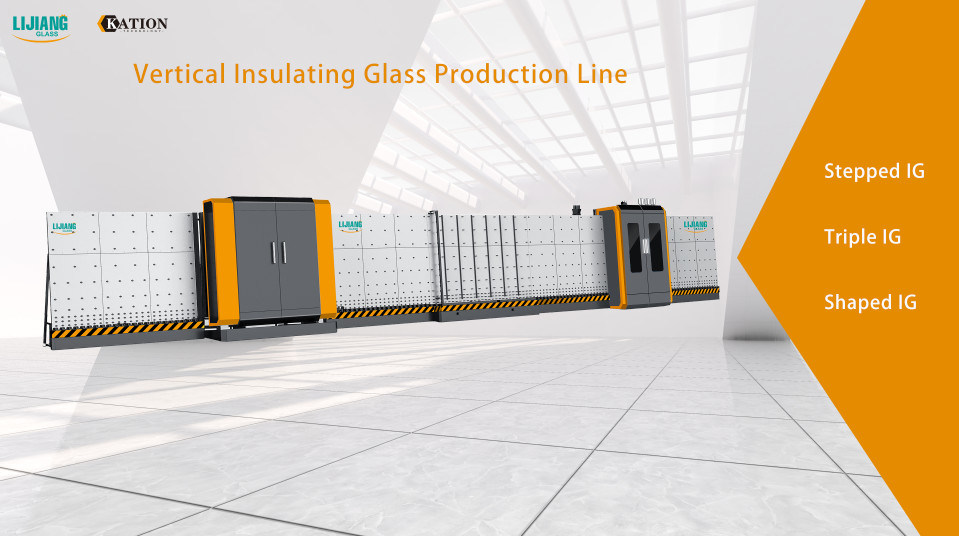

• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Glass washing part:
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
Filling argon gas automatically
• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• No need to drill holes in spacer frame
• Standard gas is Argon gas
• Fast reacting sensor for permanent control of gas filling process
• Automatically set gas data and display data on the screen
Detail of insulating glass Processing line
1.The machine adopts Siemens control system, equipped with high resolution touch screen.
2.The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
3.Automatic Insulating glass production line adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time.
4.Automatic inflating function inside the slab, automatically inflating according to the size of the glass, improving inflation efficiency and gas utilization rate.The IG line fills argon gas with 22s only for one piece of 1m*1m double glazing glass.
