Product Details:
|
| Voltage: | 380V 50Hz 3P | Product Name: | Automatic Aluminum Spacer Bending Machine |
|---|---|---|---|
| Warranty: | 1 Year | Max Bending Size: | 2000mm*2000mm |
| Spacer Kinds: | Aluminum Spacer, Stainless Steel | Spacer Width: | From 5.5mm To 26.5mm |
| Usage: | Making Spacer Frame For Double Glazing Glass | Big Size: | Optional |
| High Light: | glass bending machine,industrial bending machine |
||

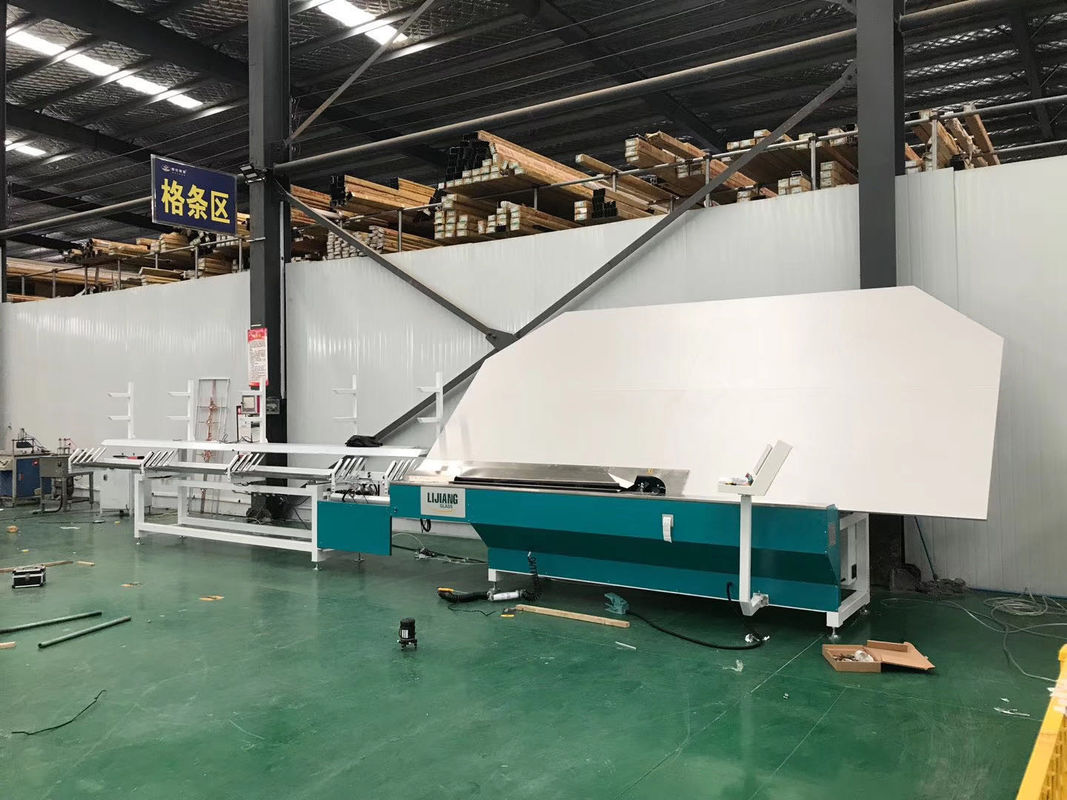

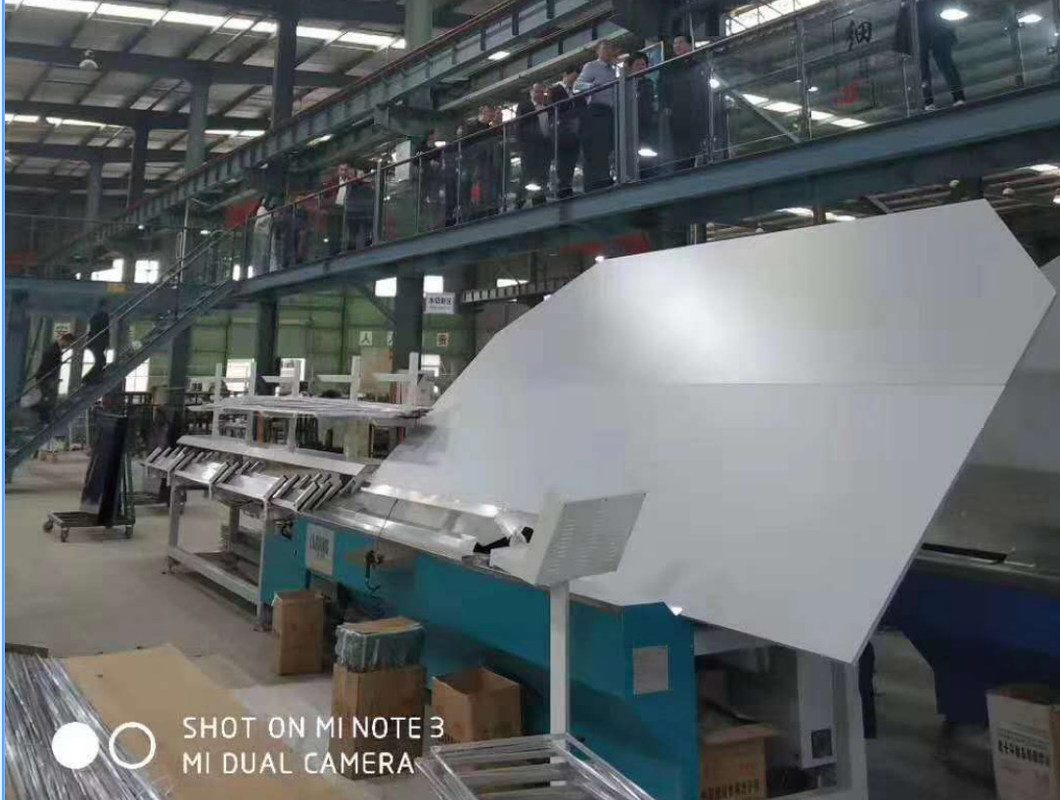

Automatic Aluminum Spacer Bending Machine With Spacer Size Of 5.5Mm To 26.5Mm
At present, the insulating glass is widely used in construction, transportation and other fields because of its good heat insulation and sound insulation effect. Aluminum frame for insulating glass is an important part of insulating glass. Aluminum frame can be produced with hollow aluminum strip with square section as raw material by aluminum strip bending machine.
Therefore, aluminum strip bending machine is the main equipment for aluminum frame production. However, at the upper corner of the exterior wall of many residential or commercial buildings, for safety or beauty reasons, arc-shaped hollow glass needs to be installed, which requires the shape of aluminum frame and glass to match, and aluminum frame also needs to be bent into arc. In order to make the hollow aluminum strip and glass have a higher degree of fit, the bending shape of hollow aluminum strip is required to be regular and uniform, and the existing hollow aluminum strip needs to be folded Bending machine can not meet this requirement, and the shape of hollow aluminum bar processed is irregular.
Main feature
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers, keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
The utility model aims to provide a hollow aluminum bar bending machine, which can quickly process hollow aluminum bars with regular and uniform shape.
The above purpose of the utility model is realized through the following technical schemes:
A hollow aluminum strip bending machine includes a base, a frame, a transmission mechanism and a processing mechanism, the base is fixed at the lower part of the frame, the processing mechanism includes rotating at least two side-by-side driven wheels arranged on one side of the frame and rotating a pressing wheel arranged directly above the clearance of the adjacent driven wheels, the driven wheel and the pressing wheel form a Y-shaped aluminum strip channel, and the transmission mechanism The transmission mechanism is connected to the shaft of the driven wheel and controls the synchronous rotation of the driven wheel.
