Insulating glass production line Adopt SIEMENS control system

Insulating glass production line Adopt SIEMENS control system
Insulating glass production line Adopt SIEMENS control system Insulating glass production line Adopt SIEMENS control system Insulating glass production line Adopt SIEMENS control system Insulating glass production line Adopt SIEMENS control system Insulating glass production line Adopt SIEMENS control system Insulating glass production line Adopt SIEMENS control system

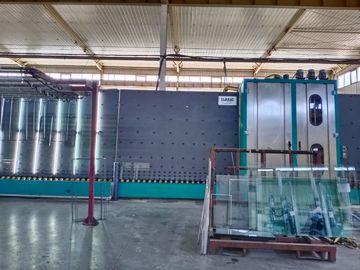

Large Image :  Insulating glass production line Adopt SIEMENS control system

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD120000/set
Packaging Details: container
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

Insulating glass production line Adopt SIEMENS control system

Description
Name: Vertical Insulating Glass Production Line Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*400mm Glass Thickness: 3-15mm
Insulating Glass Thickness: 50mm / 60mm Glass Washing Speed: 2-10m/min
Glass Conveyor Speed: 45m/min
High Light:

double glazing production

,

insulating glass line

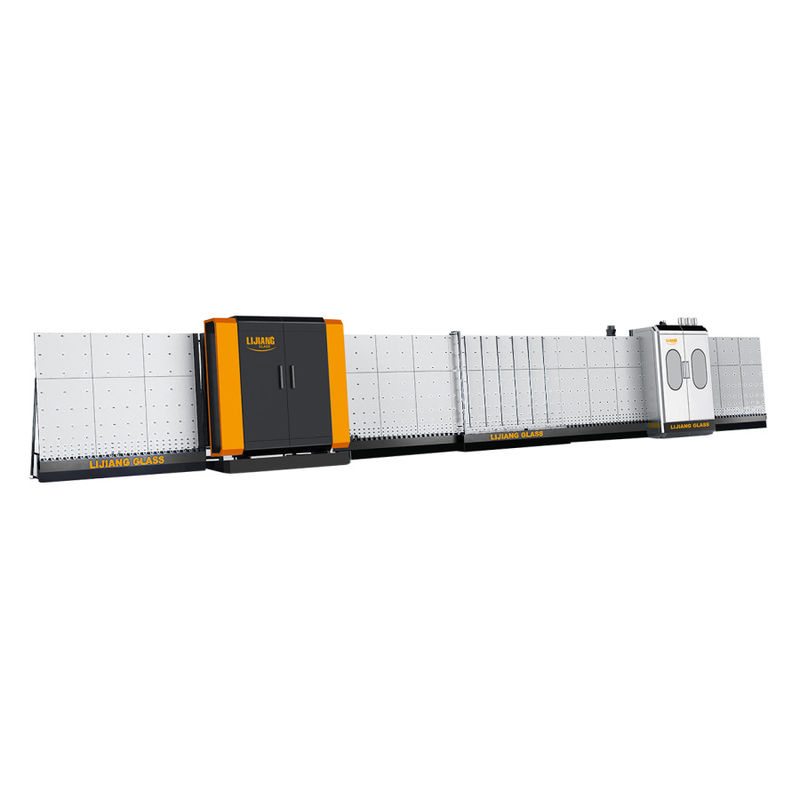

 Automatic Insulating Glass Production Line LJBZ2535

APPLICATION

Lijiang IG's production line uses the latest technology. Its main purpose is to create high-end quality, provide a lot of useful features, improve production efficiency, save production cost and generate maximum profit.

Currently, there are two hollow wires in Lijiang mainly with different technologies. One is to use transport wheels to transport glass, and the other is to use air levitation technology to transport glass. This new technology has been adopted to improve the high quality of IG production in order to prevent the glass from being contaminated by wheels and leaving no traces.

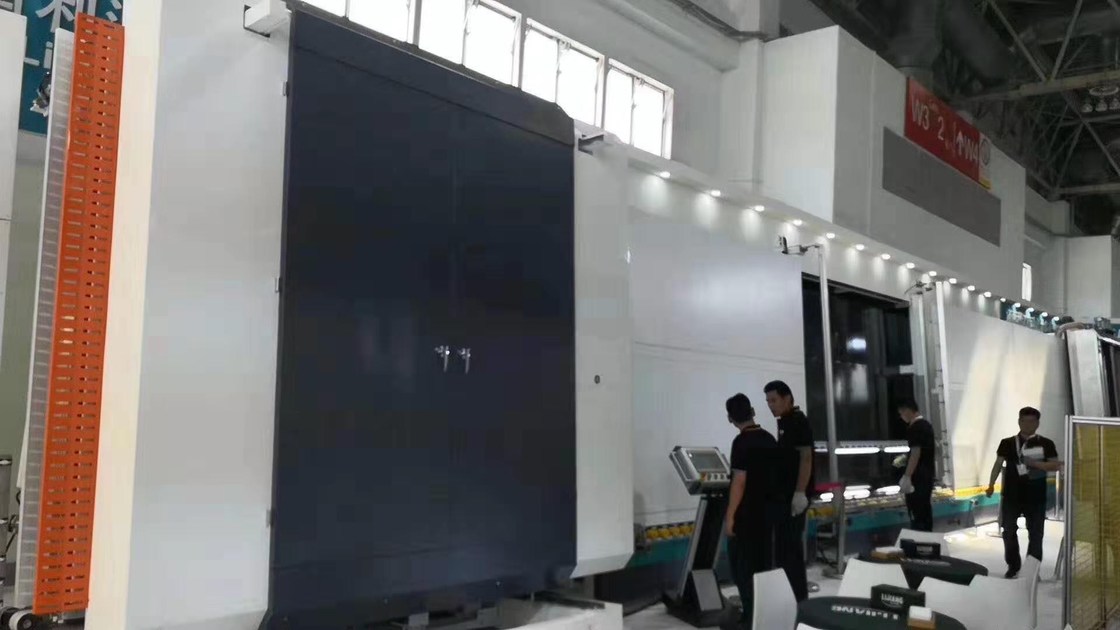

Insulating glass production line Adopt SIEMENS control system 0



Equipment advantages

  • Automatic inflation function in the board
  • High-strength polymer-sprayed backboard, folding structure
  • Full-range PLC control system, human-machine interface touch screen
  • Automatic recognition of coating and LOW-E glass
  • Can clean online and offline LOW-E glass
  • Washing machine graded cleaning system
  • Automatic temperature control and washing system of water tank
  • Noise reduction processing system with stainless steel air-drying system
  • Intelligent intermittent energy-saving working mode
  • Digital display glue depth adjustment device
  • Adjustable matrix separate plate pressing system
  • Glass automatic outside rotary positioning system
  • Aviation plug wiring
  • Automatic cooling system of electric control box
  • Three glass, special-shaped glass plywood automatic positioning system
  • Counterweight device for universal wheel of turning table
  • Servo-controlled large and small film system, modular function superposition function​

Main technical parameter



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg





NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS











































Product picture display





  1. The washing machine uses 304 stainless steel materials

The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts



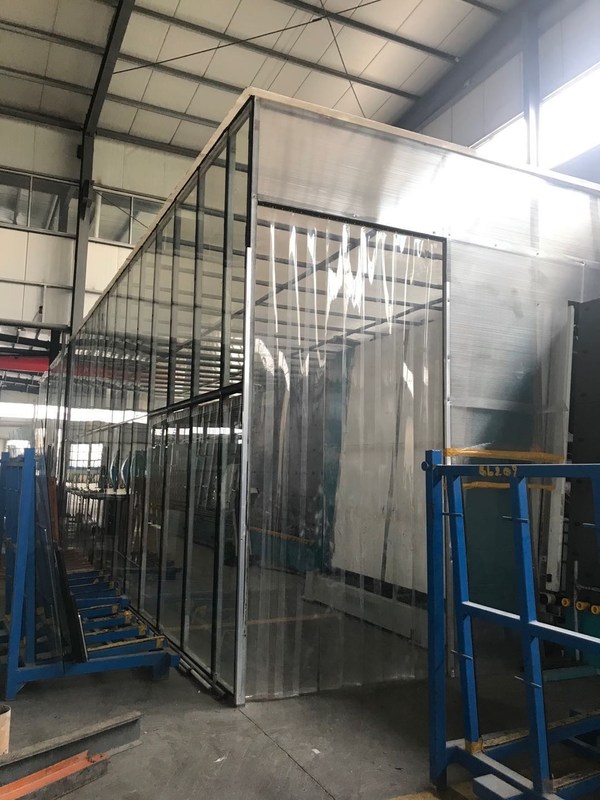

Insulating glass production line Adopt SIEMENS control system 1

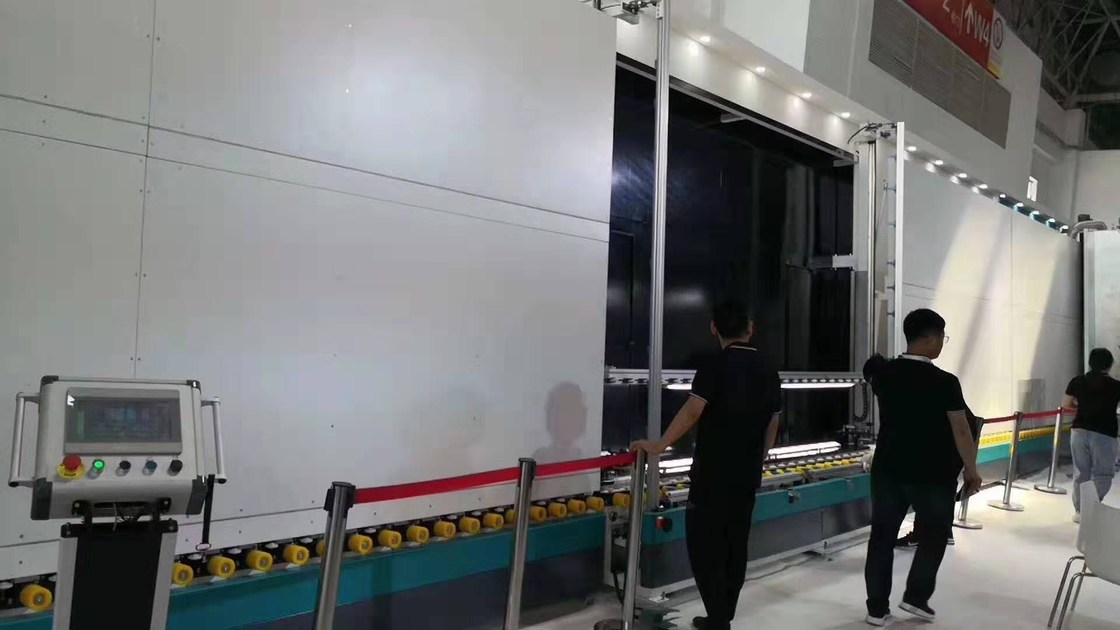

Insulating glass production line Adopt SIEMENS control system 2







2.The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.

It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

Insulating glass production line Adopt SIEMENS control system 3









4.Hot water system and water filtration system

Due to the different water quality in different countries, in order to ensure that the glass is clean enough, the air heating system is used, and the glass must be cleaned with soft water. In addition, the water filter system is used for water recycling to save water and keep the water quality clear.

Insulating glass production line Adopt SIEMENS control system 4







5.The pressing box uses servo motor and timing belt to support pressing IG units.

Servo motor can be accurately calculated the thickness of the glass and aluminum spacer. Compared with traditional hydraulic station, servo motor can guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.



Timing belt is jagged, making the pressing more accuratly.

Insulating glass production line Adopt SIEMENS control system 5

Insulating glass production line Adopt SIEMENS control system 6





6. This is the first tool in China that uses adjustable points to ensure that the pressure plate never deforms.

We use CNC technology in the pressure plate. We have designed adjustable points inside the pressure plate to keep the back plate straight. In China, with the exception of Lijiang, no one can guarantee that the platen will remain vertical and straight after 10 or 20 years of use. However, we have solved this problem.

Insulating glass production line Adopt SIEMENS control system 7

7.Pressure box energy saving
The press box uses 3 micro switches to divide the press part into 4 areas.

When each micro switch receives a signal, it will add a part of the working area. When the corresponding micro switch is not touched, this area does not work.

L When the glass L≤1.5m, zone 1 works.
When the glass L = 1.5m-2.3m, zone 1 and zone 2 work.
glass When glass 2.3m <L <3.2m, zone 1, zone 2 and zone 3 work.
glass When glass 3.2m = L ≤ 4m, all areas work together.

In addition, the sides and bottom of the sealed box will be sealed to ensure the inflation effect. It can save a lot of argon and electricity.







8. Automatic high-speed argon filling

The IG production line only fills 22s of argon with a piece of 1m * 1m double glass. The argon gas value can be set and displayed directly on the screen. From the screen, we can visually observe the argon content and filling rate.



When the two glasses are closed, it will begin to fill argon from the bottom of the glass. When the previous set value is reached, inflation will stop automatically.

Insulating glass production line Adopt SIEMENS control system 8





The main function
1). Make dual IG units
2). Making three-layer (three-layer) IG device
3). Production of low-emission IG devices
4). Production steps IG unit
5). Making hollow IG device
6). Automatically filled with argon



9. Variable wheel and air float technology

Both the front and rear transmission wheels have moved and have been actively transmitted. It can ensure the smooth passage of large and thick glass.

The new air floating technology uses air support glass and transfer glass. After washing the glass from the washing machine with a washing machine, it will not be contaminated when using air to transport the glass. Ensure that the insulating glass produced is of the highest quality.

Insulating glass production line Adopt SIEMENS control system 9









10. Low-e glass sensor in washing machine

The sensor is installed before the washing machine. It can quickly and accurately identify the Low-e glass surface automatically and prevent the glass from falling off the Low-e surface.



11. The special structure inside the washing machine can automatically recognize the glass thickness. Allows rapid transfer of glass of different thicknesses, thereby increasing production speed. According to the test, it takes only 22 seconds to produce 1m * m insulating glass.



1). There is a universal joint device. When the thickness of the glass is changed, the air knife will move back and forth to adjust the distance, so that the relative distance between the air knife and the glass is constant, so as to avoid the change in the thickness of the glass due to damage to the glass.

Insulating glass production line Adopt SIEMENS control system 10

There are chain gears on both sides of the bottom of the glass, which can actively transfer the glass to maintain high speed. Not only large-size but small-size glass can also pass quickly.
