Product Details:
|
| Max Bending Size: | 2000*2000 | Min Bending Size: | 250*200 |
|---|---|---|---|
| Air Supply: | 0.65MPa | Name: | Aluminum Bending Machine |
| High Light: | glass bending machine,industrial bending machine |
||

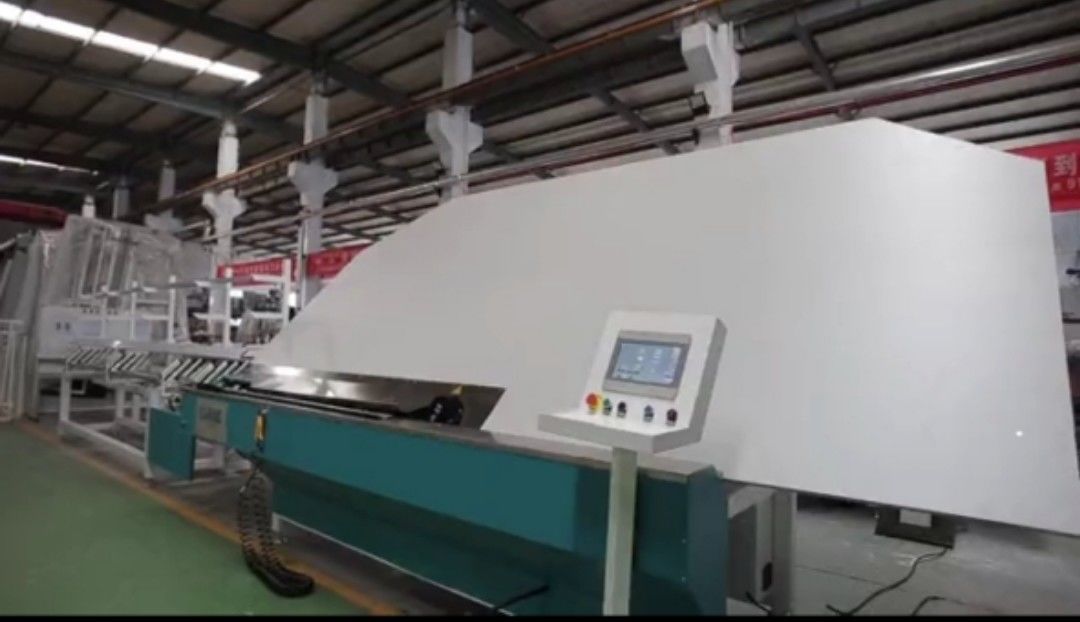

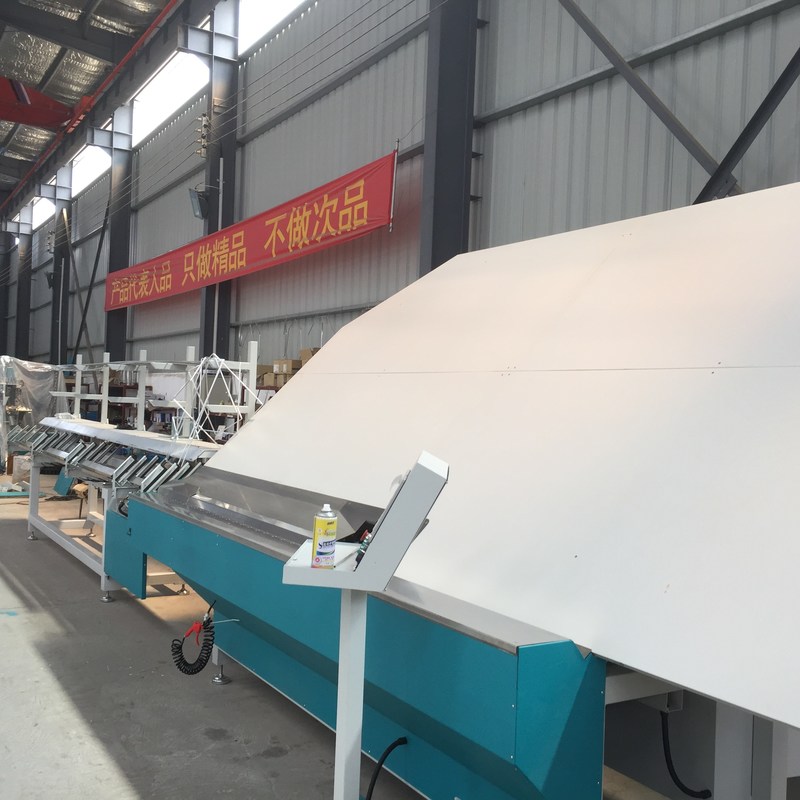

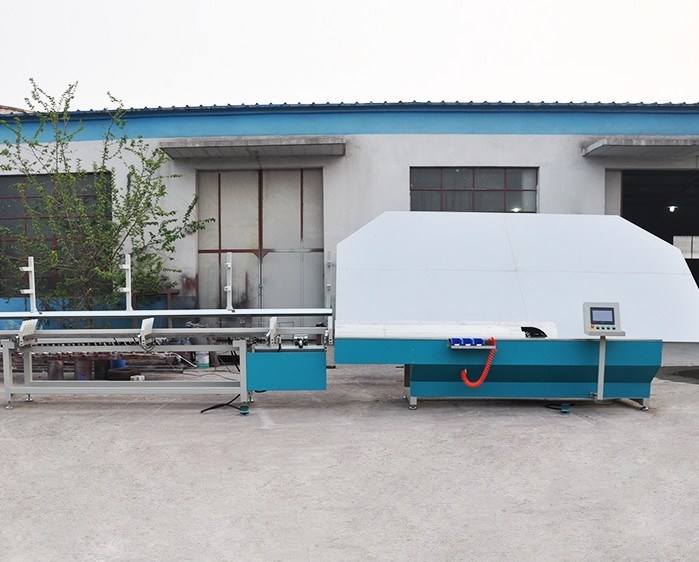

The automatic spacing bender is special equipment for the production of aluminum insulating glass frames, which replaces traditional manufacturing technology. This equipment can manufacture a variety of polygonal convex aluminum frames with a single strip of aluminum at one time, thereby strengthening the strength of the aluminum frame, thereby improving the sealing effect of the insulating glass.
Equipment details
Siemens PLC control system adopted
There are 4 Siemens servos
We adopt 4 sets of racks that can store spacers of different sizes. Use Siemens servos to replace different racks.
Aluminum spacers are automatically cut and sent
Continuously curved spacer frame
Automatically avoid connection corners when folding or cutting
Instead of grabbing the spacer from the bottom, the machine grips the spacer from the top, solving the old-fashioned flipping problem.
Uses industrial computer technology that allows industrial computer workers to draw on the spot and directly fold drawn graphics.
A dedicated mechanical hand device is used to fold the large spacing frame
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Founded in 2009, Kation-Tech specializes in R&D, production and sale of insulating glass machines and related auxiliary equipment for the deep glass processing industry and the door and window construction industry. The basis for professional processing of insulating glass machines, aluminum-plastic door and window machines and related auxiliary materials, etc. Until 2019, we were exporting glass machinery and materials to America, South America, Europe, the Middle East, India, etc., in nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and strived together to build an international brand famous in the world. Kation-Tech, with know-how, profession and honesty, wins the future with you together!
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
