Product Details:
|
Max Bending Size: | 2000*2000 | Min Bending Size: | 250*200 |
---|---|---|---|
Air Supply: | 0.65MPa | Name: | Aluminum Spacer Bending Machine |
High Light: | glass bending machine,industrial bending machine |

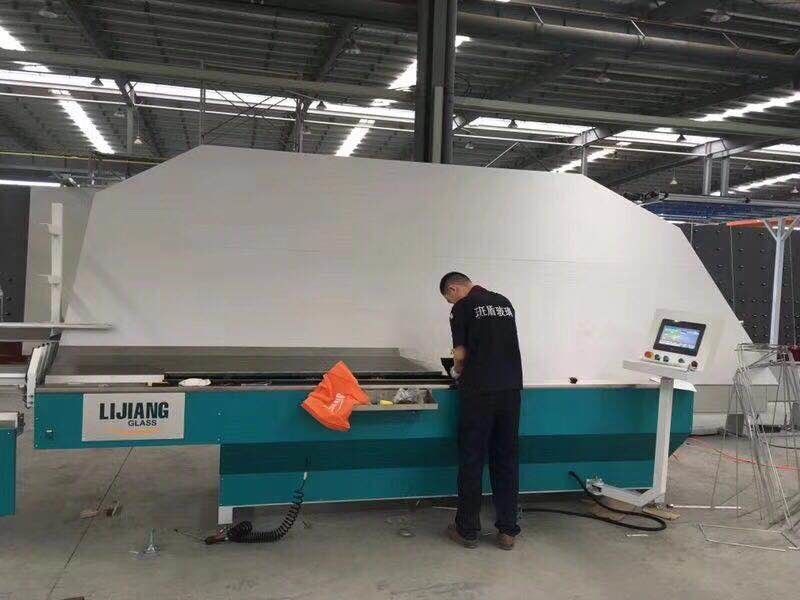

The Automatic Spacer Bending Machine is a special equipment for manufacturing aluminum frame of insulated glass, which replaces the conventional manufacturing technology. The device can create various convex polygonal aluminum frames with one aluminum strip at a time, which strengthens the strength of the aluminum frame and further enhances the sealing effect of insulating glass.
Equipment details
Adopted Siemens PLC control system
There are 4 Siemens servos

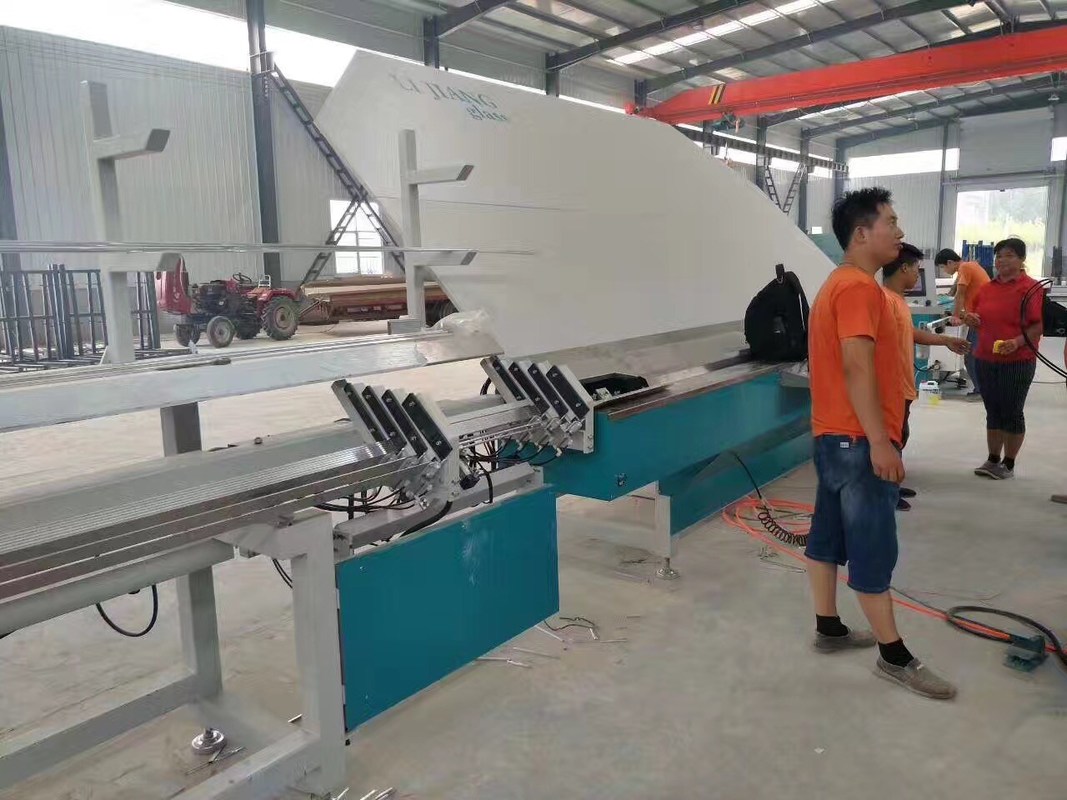

We adopt 4 sets of racks that can store spacers of various sizes. Use Siemens servos to replace different racks.
Aluminum spacers are automatically cut and sent
Continuously bent spacer frame
Automatically avoid connection corners when bending or cutting
Instead of grabbing the spacer from the bottom, the machine grabs the spacer from the top, solving the old-fashioned flip problem.
Uses industrial computer technology that enables workers on industrial computers to draw on-site and bend the drawn graphics directly.
A dedicated mechanical hand device is used to bend the large spacer frame
Technical data
Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
NAME | BRAND | NAME | BRAND |
PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
