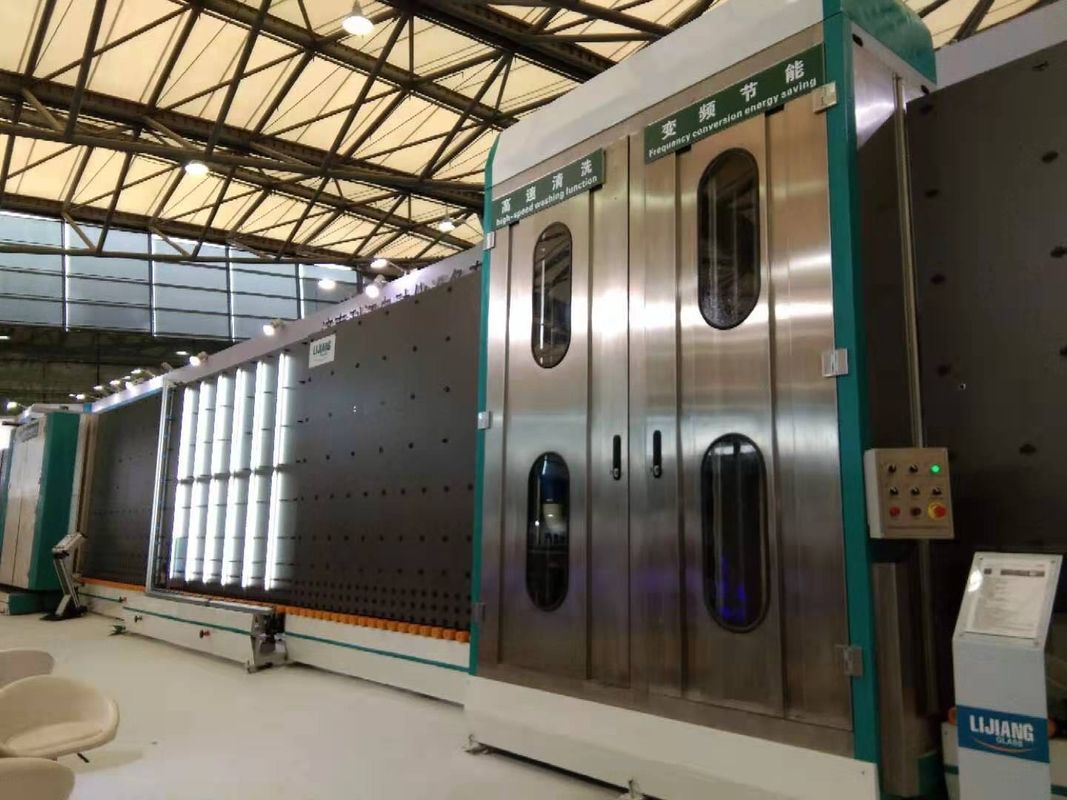

Automatic Vertical Insulating Glass Processing line by 2000*3000mm

Name: Automatic Vertical Insulating Glass Processing line by 2000*3000mm
Brand: Lijiang
SKU: LJBZ2030
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (123 reviews)

All Products

Insulating Glass Production Line
(639)

Insulating Glass Machine
(91)

Double Glazing Glass Machine
(42)

Vertical Glass Washing Machine
(103)

Sealant Extruder
(156)

Spacer Bending Machine
(273)

Desiccant Filling Machine
(210)

Butyl Extruder Machine
(264)

Argon Gas Filling Machine
(47)

Vacuum Hoist Lifting Systems
(83)

Aluminum Cutting Machine
(18)

Glass Edge Grinding Machine
(77)

Horizontal Glass Washing Machine
(44)

CNC Glass Cutting Machine
(41)

Insulating Glass Sealing Robot
(56)

Best Products

Insulating Glass Processing Machine Gas Filling Igu Line Machine

Insulating Window Double Layers Glass Making Glazing Glass Making Machine

2-10m/Min Insulating Glass Production Line

Certification

Customer Reviews

Our using experience proves that your equipment is of a high level. Especially thank you for your professional service, the service is quite good. We hope your company keep the way all the time.

—— Mr. Caner -CEO

Good machines, good service, Good people.

—— Mr. Flavio - CEO

lijiang machines is very stable , we purchase more than 3 IG line from them , it's good . service is very nice , 24 hours online with fast reply .

—— Mr Dilip

I am from vietnam , lijiang is my china machine supplier, from last three years we start cooperation ,till now all good .

—— Mr THO

This is Robin from birkan engineering company india , we are big manufacturer for rail way glass , last two year we bought one argon gas line , and other accessary machines, very nice machines , very nice service . it improved double time working efficiency . Thanks for lijiang support .

—— Mr Robin

It's my second time buy lijiang machines , their machine quality and service are excellent , so lucky have this good and honest supplier.

—— Mr Abdul

when buy the machines from oversea market, always wondering how is the quality , how is the service, how is their person , how should do if they are lier , But finially close order with them , everything is excellent .

—— MR Dave

Being in the glass industry for over 20 years ,the one thing i can tell you is that machines don't speak ,but you can tell a lot about the manufacturer that make them through using the machines. Well,there is nothing unpleasing i can tell about Lijiang Automatic Co.

—— Mr SANDEEP

What makes me a loyal customer of Lijiang is their professionalization ,efficiency ,punctuality and fast reaction on after-service .Hope we can always have this in the future.

—— MR BULBUL

A perfect combination of quality,price and service .Who doesn't like to work with a company like this ?

—— MS JENY

I'm Online Chat Now

Automatic Vertical Insulating Glass Processing line by 2000*3000mm

Large Image : Automatic Vertical Insulating Glass Processing line by 2000*3000mm

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJBZ2030

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	60days
Payment Terms:	L/C, T/T
Supply Ability:	10set/month

Contact Now

Automatic Vertical Insulating Glass Processing line by 2000*3000mm

Description

Name:	Insulating Glass Processing Line	PLC:	Siemens
Advantage:	Gas Filling On Line

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 0

LIJIANG GLASS- FOR WORLD GLASS MANUFACTURE SERVICE

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 1

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 2

LJBZ2030Vertical Automatic Insulating glass production line

APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

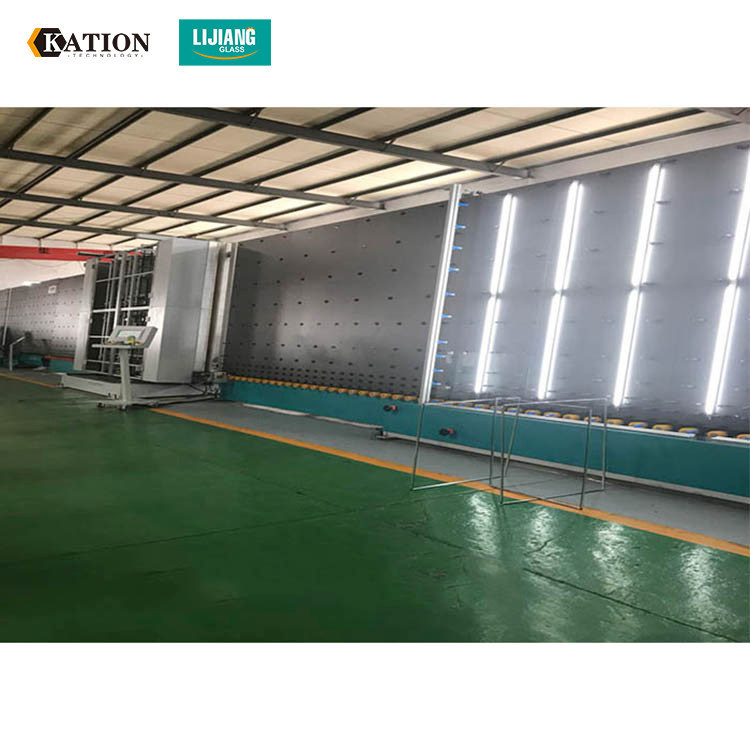

LJBZ2030 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)

The whole line include 7 parts: (from right to left)

1,Loading section(with low-e checking)

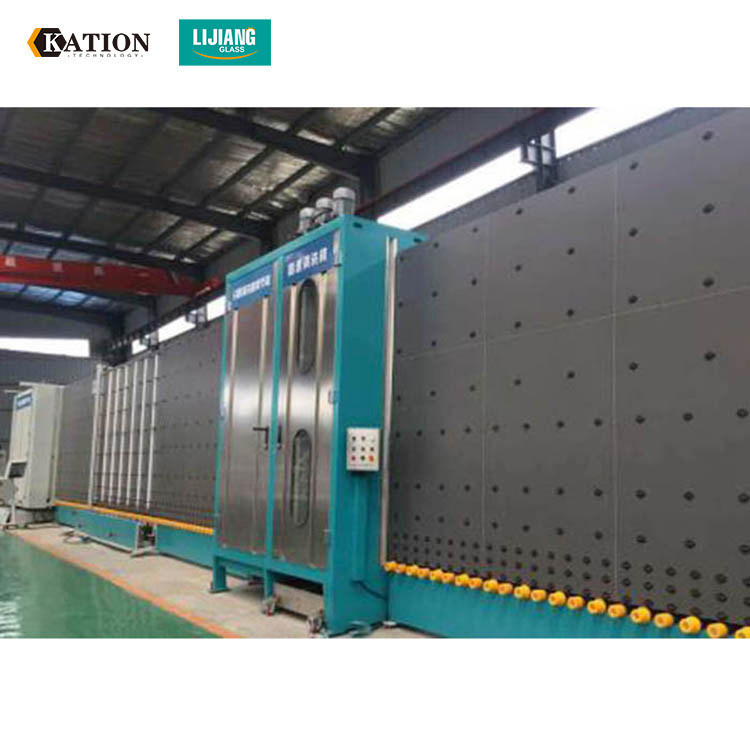

2,washing and drying section(can washing low-e glass)

3,conveyor section

4,checking and assembly section

5, conveyor , measure and sensor section

6,press part with gas filling

7,unloading section

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 3 ►SIEMENS CONTROL SYSTEM

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 4 ►ROLLERS SHOWING

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 5 ►WATER TANKER SHOWING
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:

Gas filling on line syetem(option)

About Gas filling online of LJBZ2030 Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing

process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

Parts list

			Components
			Brand
			Remark

			Servo motor
			GERMAN SIEMENS
			For stepped glass

			Servo driver
			GERMAN SIEMENS
			For stepped glass

			Servo motor
			GERMAN SIEMENS
			For transfer

			Servo motor
			GERMAN SIEMENS
			For press

			PLC
			GERMAN SIEMENS

			Low voltage component
			GERMAN SIEMENS

			Frequency converter
			GERMAN SIEMENS

			Switching power supply
			Taiwan MW

			Optoelectronic switch
			Korea Autonics

			Pneumatic component
			Taiwan Airtac

			Pneumatic component
			Japan SMC

			Touch screen
			Taiwan Wenview

			Travel switch
			Taiwan Tiande

Technical data

Main technical parameters

			Max.glass size
			2000*2500mm
Gas filling line 2025

			Min.glass size
			280*450mm

			Glass thickness
			3-12mm

			Insulating glass thickness
			60mm

			Glass washing speed
			2-10m/min

			Glass conveyor speed:
			48m/min

			Washing brushes
			3 pairs

			Water supply:
			Water consumption:0.5t/h conductivity:≤50μs/cm

			Air supply
			Flow: 0.8m/min

			Air pressure
			≥0.8MPa

			Total power
			3P380V 50HZ 34KW

			Dimension
			23500*3500*3700mm

Automatic Vertical Insulating Glass Processing line by 2000*3000mm 6
