Special Function Of Double Glazing Glass Processing Line And Sealing Robot

Special Function Of Double Glazing Glass Processing Line And Sealing Robot
Special Function Of Double Glazing Glass Processing Line And Sealing Robot Special Function Of Double Glazing Glass Processing Line And Sealing Robot Special Function Of Double Glazing Glass Processing Line And Sealing Robot

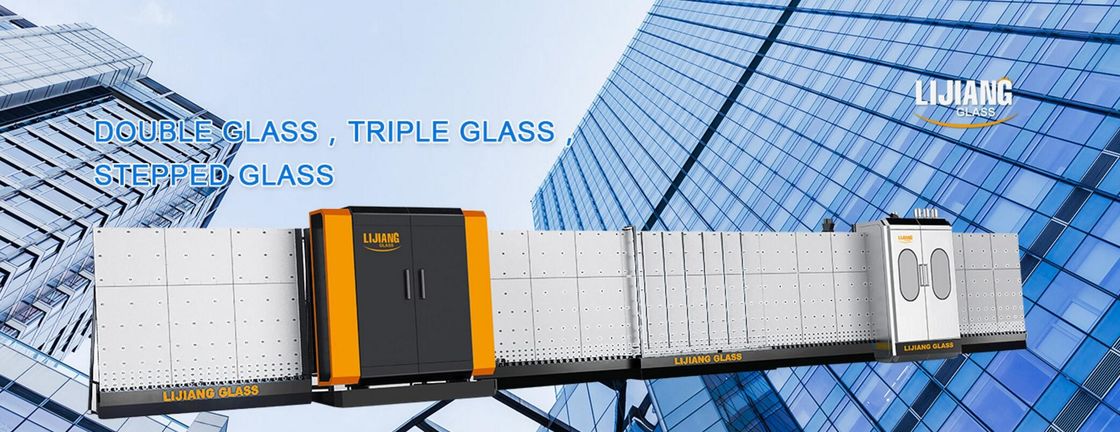

Large Image :  Special Function Of Double Glazing Glass Processing Line And Sealing Robot

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZK2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 65000 - 85000 per set
Packaging Details: 2* 40HQ containers
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Special Function Of Double Glazing Glass Processing Line And Sealing Robot

Description
Production Name: Double Glass Processing Line Application: Building Glass, Doors And Windows
Voltage: 380V 50Hz 3P Color: Blue , Optional
Certification: CE Material: Stainless Steel
Min. Glass Size: 400mm*380mm Usage: Making Insulating Glass
Glass Thickness: 3 - 18mm
High Light:

insulating glass line

,

glass processing machines

Special Function Of Double Glazing Glass Processing Line And Sealing Robot



Double glazing glass processing line is a kind of glass deep processing equipment, which is mainly used to process and make insulating glass. After the original glass is cut, the flat glass enters the double glazing production line. Mainly through washing, drying, making spacer frame, filling desiccant, first sealing (applying butyl rubber) inspection, installing spacer frame, pressing, second sealing (polysulfide glue or silicone glue), downloading.The processed products are of high quality and fast processing speed.

The insulating glass production line mainly consists of four sections: feeding section, washing and drying section, inspection section and pressing section. The four sections are placed vertically with the same dip angle, with compact structure, practical economy, high efficiency and convenient maintenance. The cleaning box is made of stainless steel, and the transfer roller is acid and alkali resistant rubber roller; the glass cleaning can be easily observed at any time through the perspex window; the feeding section and the cleaning and drying section are driven by manual stepless speed regulation motor, and the glass runs smoothly at the best speed. In the drying section, the glass surface can be dried by using a large wind force inclined blade. The inspection section is equipped with light tube, which can clearly check the cleaning quality of glass; the closing section is equipped with glass positioning and aluminum frame positioning device, which can complete the functions of glass positioning and aluminum frame positioning. The glass is supported and transmitted by the conveying rubber roller. The conveying roller is driven by the motor (roller section motor) through the frequency converter and the chain wheel. The glass enters this section at a low speed from the cleaning and drying section. After passing the inspection, it accelerates to the next working section to improve the working efficiency. The frequency converter controls the running speed of this section's speed regulating motor, and the photoelectric switch controls the glass to enter the next working section.



The cleaning water system of the insulating glass production line is a circulating system, and the water tank is equipped with a constant temperature water heating device, and the water temperature can be automatically maintained in a reasonable range.

The water is pumped out from the water tank by the water pump, sprayed on the glass surface by the spray water pipe, cleaned the glass and then returned to the water tank for recycling. If the water quality is poor, it needs to be equipped with a water treatment device (provided by the user). After treatment, the water will enter the water tank and be recycled according to the above steps. Air path system: through a pair of inclined air knives, the fan can blow dry the glass.

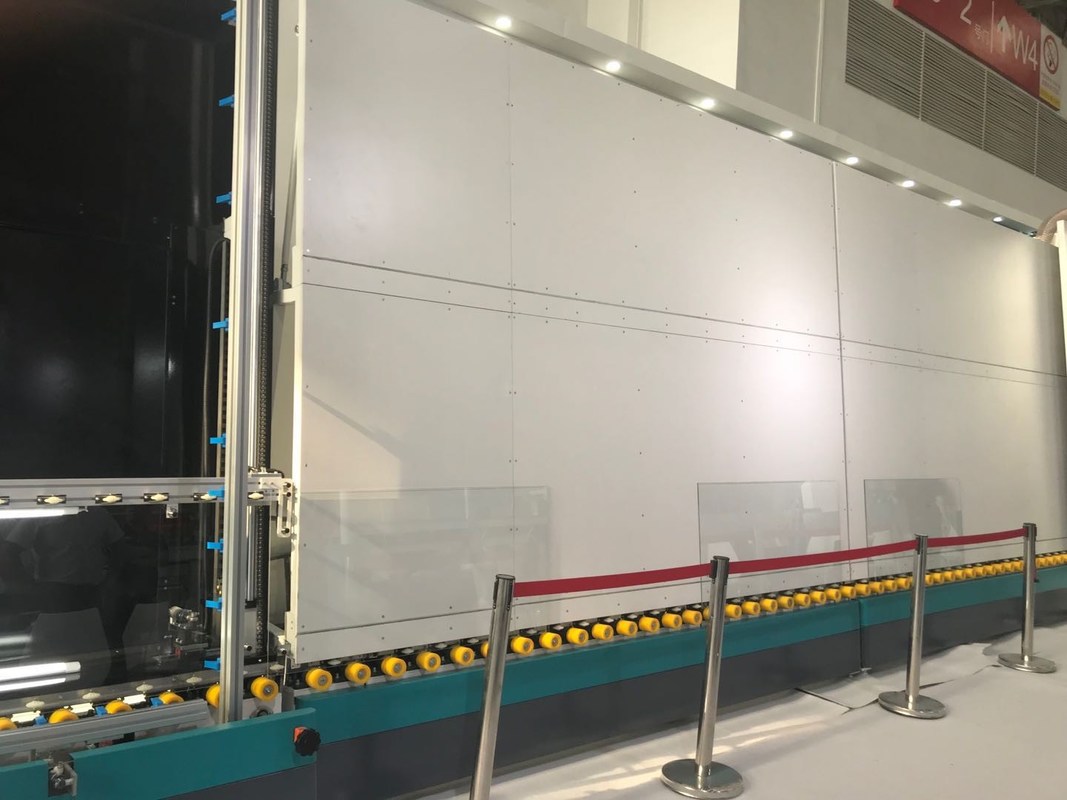

Special Function Of Double Glazing Glass Processing Line And Sealing Robot 0

Special functions :
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
•Pressing and filling 2 pieces of IG units, totally 8 sections

Main Features :
•Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%
•Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly
•High-speed IG processing line, we have obtained patent rights in China in 2019
•Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman
•Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)
•From transfer part to pressing part, each part is divided
•Suitable for mass production in a factory. Ultra-fast speed

Special Function Of Double Glazing Glass Processing Line And Sealing Robot 1

Soecification:

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor for step glass Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
IG line without filling gas online



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online
