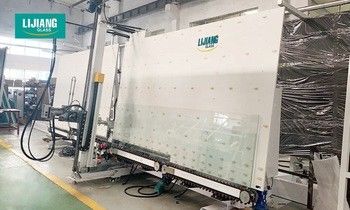

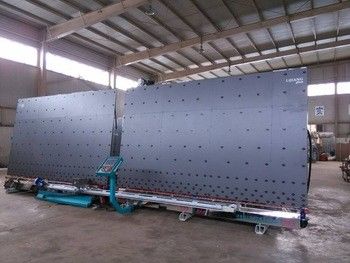

380V 12kw 2500mm Sealant Extruder

380V 12kw 2500mm Sealant Extruder
380V 12kw 2500mm Sealant Extruder 380V 12kw 2500mm Sealant Extruder 380V 12kw 2500mm Sealant Extruder 380V 12kw 2500mm Sealant Extruder 380V 12kw 2500mm Sealant Extruder 380V 12kw 2500mm Sealant Extruder

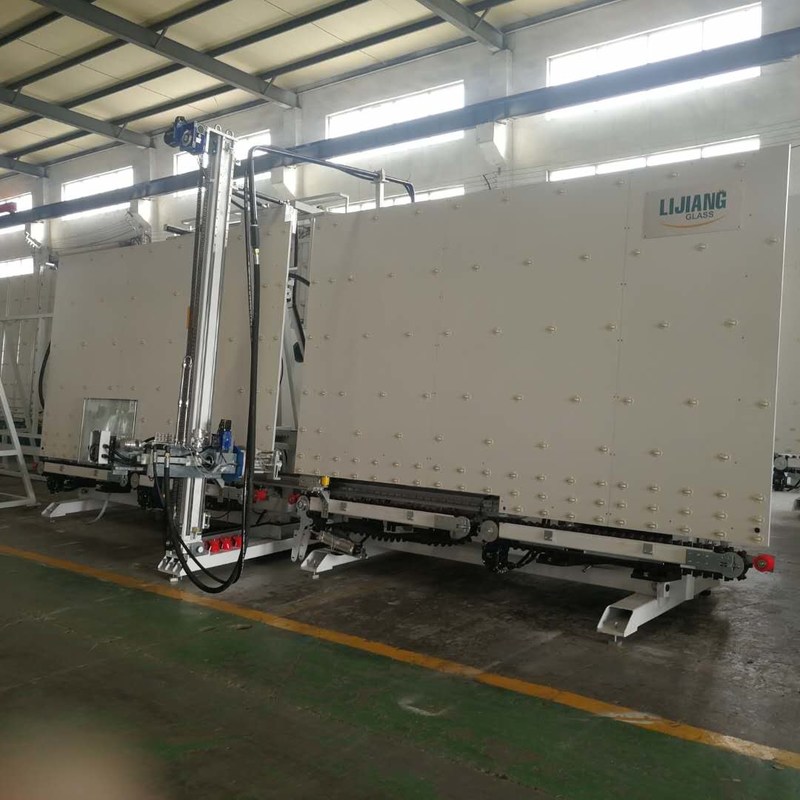

Large Image :  380V 12kw 2500mm Sealant Extruder

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

380V 12kw 2500mm Sealant Extruder

Description
Name: Vertical Insulating Glass Sealing Robot Max.glass Size: 2500mm
Min.glass Size: 170mm*400mm (2000mm Machine) Glass Thickness: 12-56mm
Working Speed: 5-40m/min Air Pressure: 0.6-0.8MPa
Squeeze Pressure: <350kg/m³ Plane Angle: 6°- 9°
Max Glass Weight: 400kg Voltage Power: 380V 12kw
Overall Dimension: 8700mm*2000mm*3500mm
High Light:

silicone extruder machine

,

double glazing equipment

Vertical insulating glass sealing robot



+

Equipment advantages

  • Choice of minimum and maximum glass sizes
  • Use 8 servo motors
  • Adopt Japan Yaskawa servo control system, stable performance
  • Linear adjustment can automatically measure glass size, glue depth and glue speed
  • Using synchronous belt, stable transmission and accurate position
  • Highly standardized spare parts and high precision ensure that the machine can be used for a long time
  • Glass corners are filled, no bubbles, smooth surface, no need
  • Automatic high efficiency machine
  • The new scraper design is particularly suitable for making the train IG have very flat sides and corners, and no bubbles.
  • Automatically repair bright glass corners
  • Stable delivery without scratches and pollution
  • Single-function parts have manual functions and are easy to adjust
  • Special-shaped IG unit (optional)
  • Stepped IG unit with four sides (optional)
  • Double and triple IG equipment​

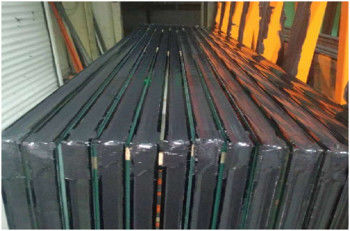

Sealing the insulating glass twice, sealing and bonding the insulating glass, and also protecting the first sealing layer.

Main technical parameter





Max.glass size 2500mm*4000mm
Min.glass size 170mm*400mm (2000mm machine)
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm





Main components list

Name Brand
Switch SIEMENS
Servo motor Japan YASKAWA
I/O model Japan MSYSTEM
Lower voltage component Siemens
CPU Japan YASKAWA
Frequency converter Japan OMRON
Switching power supply Taiwan MW
Pneumatic component Japan SMC
PLC Siemens
Guideway Siemens



Product picture display

Eight Servos

The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.





380V 12kw 2500mm Sealant Extruder 0









The Device of Sealing Part

The Japanese Yaskawa servo motor is used to control the 360 ° rotation of the seal. Set up a scraper to scrape off excess glue without having to repair the glass corner a second time.

380V 12kw 2500mm Sealant Extruder 1





 Two Sets of Pump A & Pump B

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

380V 12kw 2500mm Sealant Extruder 2







Intelligent Sensor

Automatically position the glass and sensor glue deep, the coating speed can be adjustable online.

380V 12kw 2500mm Sealant Extruder 3







Stepped glass (Optional)

We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.

380V 12kw 2500mm Sealant Extruder 4

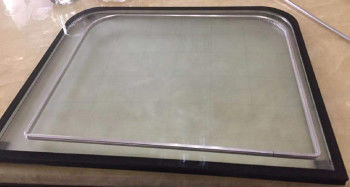

Shaped Glass and Triple Function (Optional)

With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.

380V 12kw 2500mm Sealant Extruder 5







380V 12kw 2500mm Sealant Extruder 6380V 12kw 2500mm Sealant Extruder 7380V 12kw 2500mm Sealant Extruder 8380V 12kw 2500mm Sealant Extruder 9380V 12kw 2500mm Sealant Extruder 10
