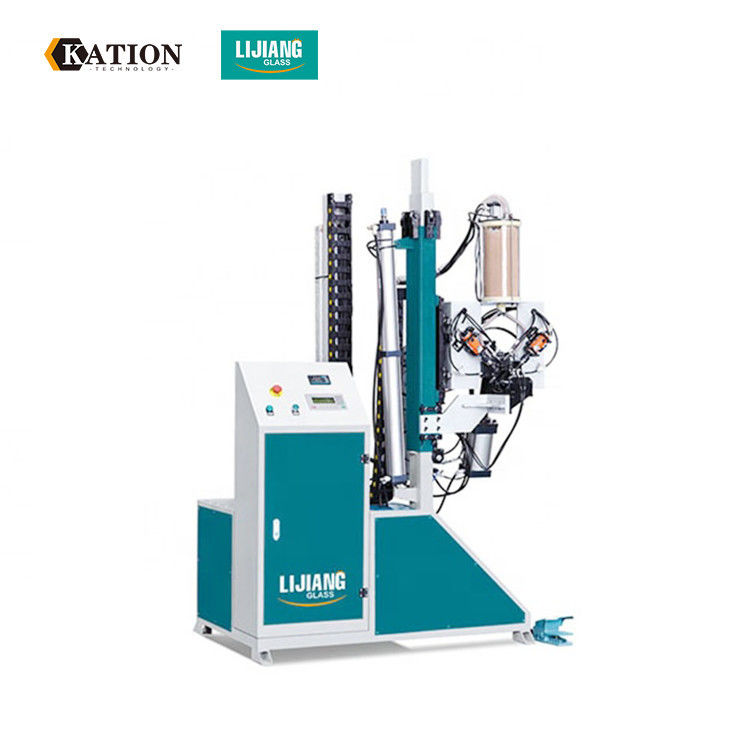

Instulating Glass Processing Automatic Filling Machine

Instulating Glass Processing Automatic Filling Machine
Instulating Glass Processing Automatic Filling Machine Instulating Glass Processing Automatic Filling Machine Instulating Glass Processing Automatic Filling Machine

Large Image :  Instulating Glass Processing Automatic Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJGZ 2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Usd 5000 - 6500
Packaging Details: 1100mm*1100mm*3600mm Wooden packing
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per month
Contact Now

Instulating Glass Processing Automatic Filling Machine

Description
Name: Desiccant Filling Machine Type: LJGZ2020
Max. Frame Size: 2000mm*2000mm Min. Frame Size: 300mm*250mm
Aluminum Specifications: 6A- 27A Air Source: ≥0.65MPa
High Light:

glass filling machine

,

desiccant filler

Desiccant Filling Machine LJGZ2020

Instulating Glass Processing Automatic Filling Machine 0

Instulating Glass Processing Automatic Filling Machine 1

Desiccant Filling Machine can automatically achieve actions of drilling holes automatically
in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system
adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the
valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass,
it’s a necessary equipment in the process of insulating  glasses.
Instulating Glass Processing Automatic Filling Machine 2
1, Protection device for machine head.

Instulating Glass Processing Automatic Filling Machine 3

2, Easy and safe for adding glue.

Instulating Glass Processing Automatic Filling Machine 4

3,Electrical component are all Germany Brand-Siemens.

Instulating Glass Processing Automatic Filling Machine 5

4,Machine height can be adjusted according to the size of spacer frame.

Instulating Glass Processing Automatic Filling Machine 6

5,Desiccant automatically loading from the Materials bucket.(When the material was used up
the sensor will alarming,desiccant will automatically loading )

Instulating Glass Processing Automatic Filling Machine 7

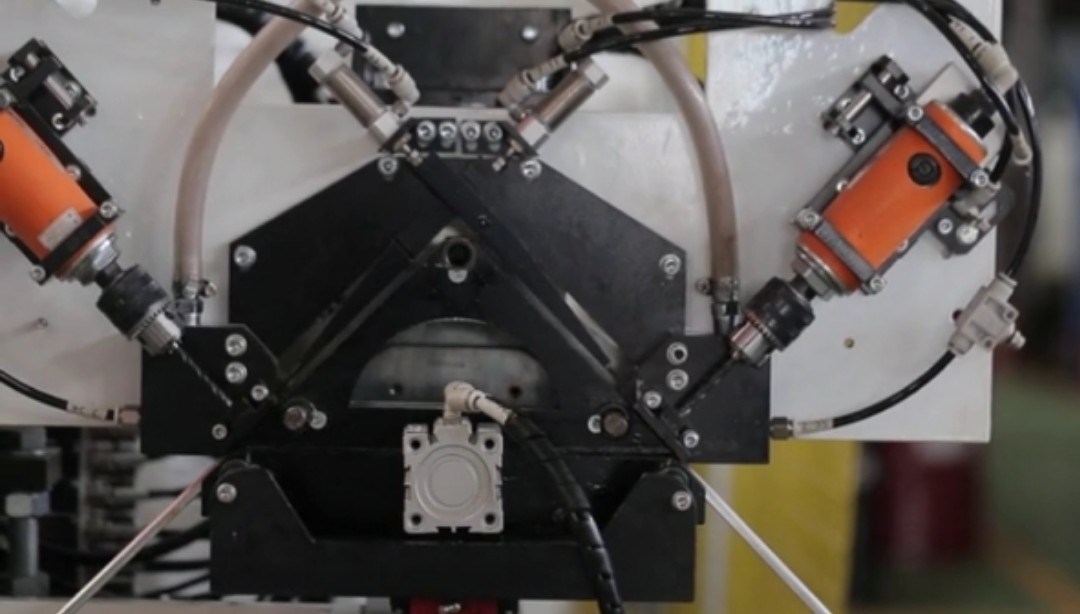

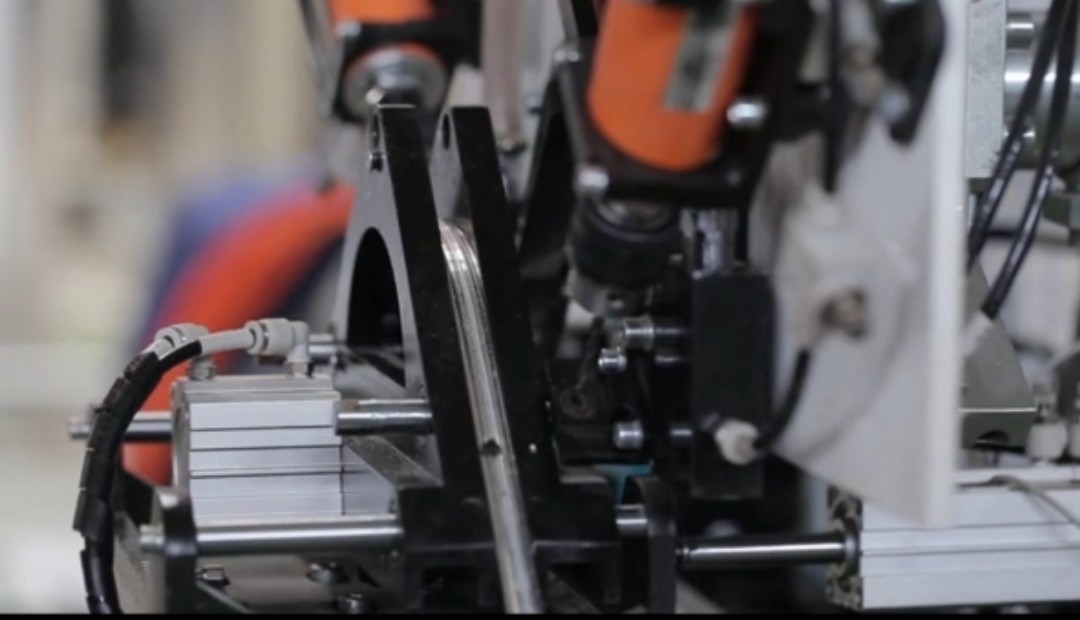

6, Auto drilling, filling and sealing function

Instulating Glass Processing Automatic Filling Machine 8

7,Touching screen interface, simple and visible;Filling time can be adjusted according to the
size of spacer frame in the touch screen

Instulating Glass Processing Automatic Filling Machine 9


8, All the electrical wires have the ID number,it can match with specification , also it will be very

easy for the further communication in the after sales service .



Instulating Glass Processing Automatic Filling Machine 10




Instulating Glass Processing Automatic Filling Machine 11
Max. frame size 2000mm*2000mm (2500mm*2500mm)
Min. frame size 300mm*250mm
Aluminum specifications 6A- 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.9 mm or 1.0 – 1.5mm
Dimension 1100mm*1100mm*3600mm







Main feature

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)



Main technical parameter



Name Brand Name Brand
PLC German SIEMENS Triplet TAIWAN AIRTAC
Low voltage electrical apparatus German SIEMENS Solenoid valve TAIWAN AIRTAC
Sensor Korea AUTONICS Gas driller Taiwan BOA
Guide Taiwan TBI Switch power Taiwan TEND





Instulating Glass Processing Automatic Filling Machine 12

Instulating Glass Processing Automatic Filling Machine 13
