Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly

Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly
Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly

Large Image :  Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooder
Delivery Time: 30
Supply Ability: 35sets

Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly

Description
Name: Butyl Extruder Machine Squeeze Pressure: 10-18MPa
Temperature: 110~140℃ Aluminum Spacer Width: 4-30mm
Speed: 0-47m/min
High Light:

double glazing production

,

insulating glass line

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl



LJTB01 Butyl Extruder Machine





 Application

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames

evenly with hot melt butyl. This equipment use large electrical control panel which makes

the operation more easier. The conveyor of aluminum is controlled by frequency converter,

and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.

It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic

supercharging system, which makes the squeezing pressure more stable. The dispensing

cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong

the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.

The distance of squeezing head can be adjusted automatically according to different aluminum

spacer. The machine has reached the worldwide technology with the characteristic of complete

function and stable working mode.

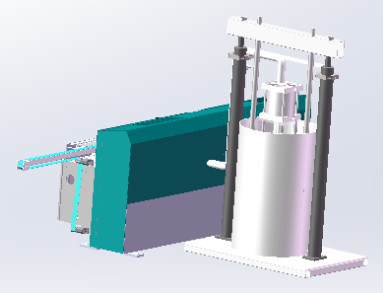

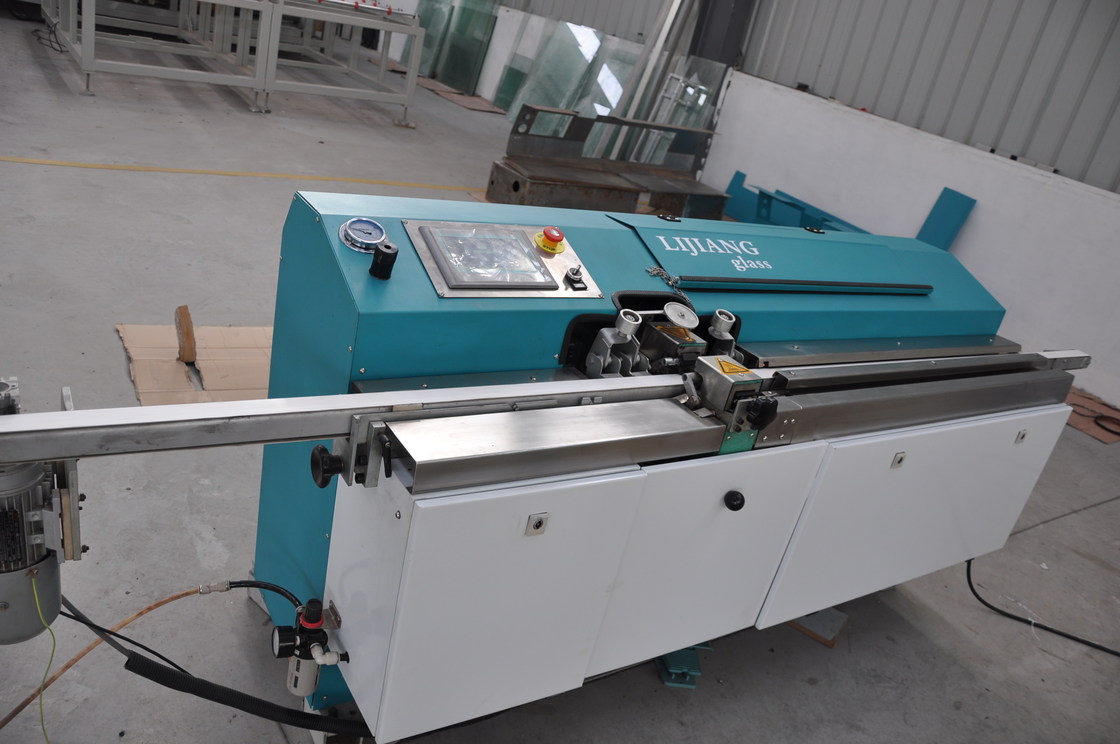

Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly 0



Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly 1



² Technical Data

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg







² Other features

1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.

2. Quickly speed of warming, improve work effect.

3. Adjustable coating speed, can up to 0-47m/min.

4. Can save about 40% materials, only 5g/m.

5. Extruder head height adjustment structure.

6. Automatic centering and clamping structure.

7. Stable temperature and it is convenient to adjust the sealing material automatically.

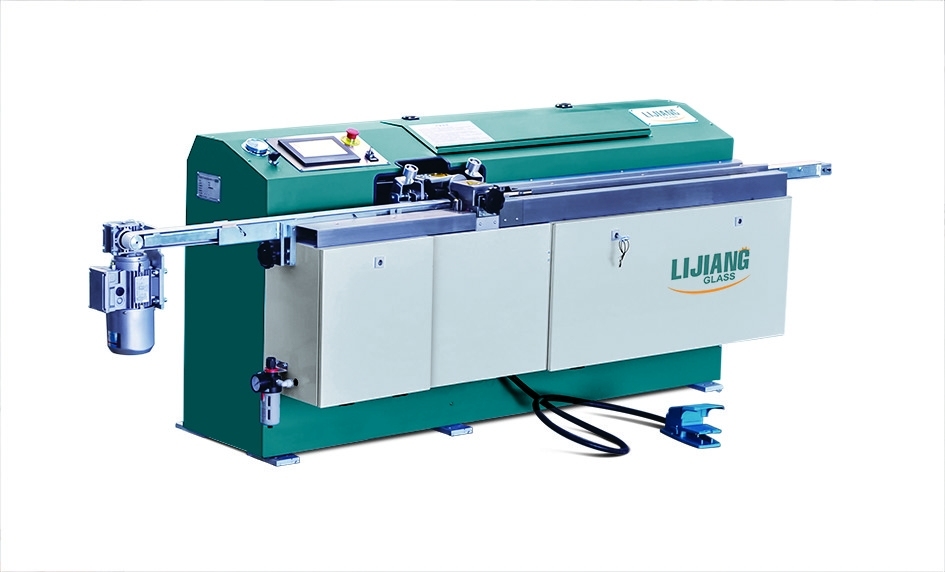

Hot Melt Butyl Extruder Machine For Spreading Aluminum Spacer Frames Evenly 2
