Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass
Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass

Large Image :  Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJST02A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass

Description
Name: Sealant Pump Of Insulating Glass Using Advantage: Easy Operate And Ecnomic Cost Solution
Pump: Korea Pump
High Light:

double glazing production

,

insulating glass line

Manual sealing machine included silicom pump freezer and rotated table for insulating glass



             LIJIANG GLASS- FOR WORLD GLASS MANUFACTURE SEIVICE



Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 0

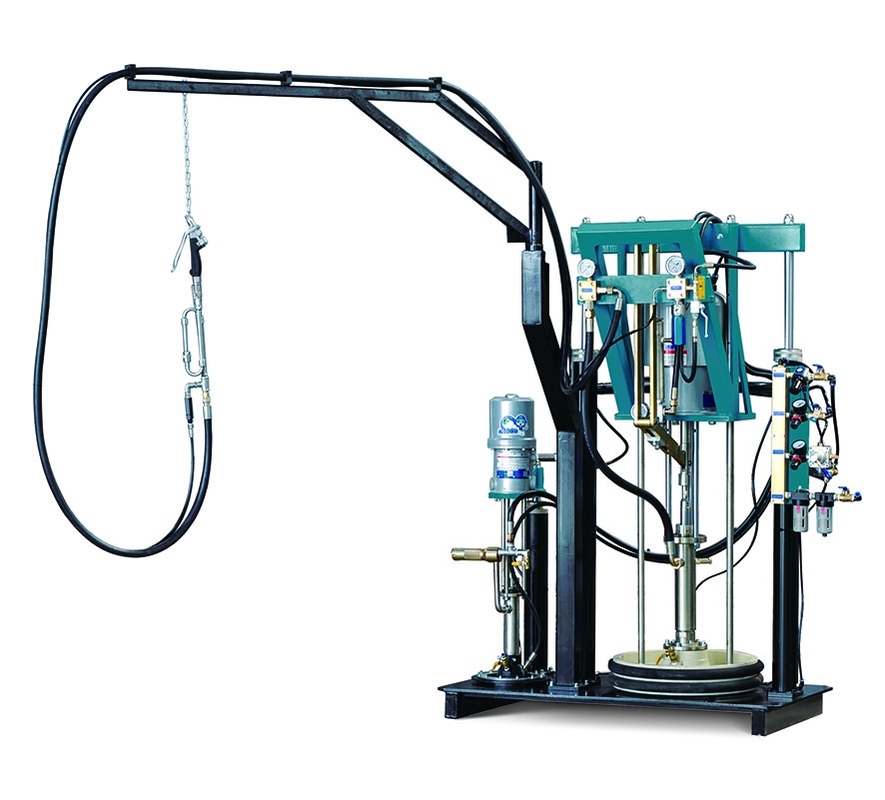

Sealant-spreading Machine LJST02A

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 1



Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm






APPLICATION

This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.

Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.



Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 2Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 3

►►►►►KOREA PUMP USING

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 4Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 5



►►►►►SEALING GUN ADN SEALING REASULT SHOWING



Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 6



Freezer OF INSULATING GALSS PROCESSING LJSGF01

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 7Main feature

• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass

• Storing at low temperature,to prevent sealant solidify

• Apply to polysulfide and silicone

• Can be effectively reduced waste when cleaning the glue

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 8

Max refrigerating temperature 70ºC
Min heating temperature -40ºC
Total power 3.8kw
Refrigerating <150min
Overall dimension 1550*60*1300mm






Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 9

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 10

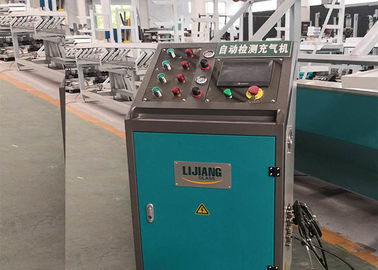

LJCJ03 Gas filling machine



1.Four pieces IGU can be gas filled at the same time within 20s (1m*1m glass).

2.Pressure alarm device:when the gas filling is up to adjusted value,it will alarm and stop automatically.

3.The filling process can display on the touch screen.

4.Gas content setting: the customer can set the argon content in the IGU according to his own needs.

5.The whole filling process and argon gas content can be displayed on the screen, and the argon gas content can be observed in real time.

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 11

Manual sealing machine included silicom pump freezer and rotated table for insulating glass

Argon gas filling machine LJCJ02

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 12



  • High effectively, allowing for four IG glass
  • When the gas is full,it will alarm and stop automatically
  • Main technical parameter

    Power supply 220V 50Hz
    Total power 0.1kw
    Dimension 620*439*700mm

















Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 13

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 14

Manual Sealing Machine Included Silicom Pump Freezer And Rotated Table For Insulating Glass 15
