High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes
High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes

Large Image :  High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJWBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes

Description
Name: Horizontal Glass Washing Machine With Soft Low E Brushes Advantage: Easy Operate
Material: Stainless Steel Touching Water Part
High Light:

double glazing production

,

insulating glass line



             LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE



High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 0

Horizontal Glass Washing Machine with Soft Low e Brushes LJWBQJ2500




High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 1

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500



Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.




High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 2



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100mm
Weight 3940kg

Structural characteristics:


This cleaning machine adopts horizontal structure, which is used for cleaning and drying plate type glass;


-The main part consists of inlet, cleaning, drying, and out of film
-Conveyor adopts chain transmission
-The machine has 1 water tank. primary washing
-There are 4 groups of brushes and 3 groups of absorbent cotton within the machine

-Reliable, good cleaning effect, easy to adjust;

-Conveying glass Frequency Control, easy to control, is more conducive to connect the bilateral edging production lines, glaze line, insulating glass production line, safety glass production lines

-special cleaning requirements or attached features can be customized

- the transmission adopts gear transmission, variable frequency speed regulation, digital display, easy to operate, it is conducive to connecting the production line

- the cleaning department and the wind cadres overall lifting, the highest lift is 400mm, easy to clean the internal rubber roller and maintenance

- by three to two on the hard brush brush cleaning, in front of the available cylinder lifting, cleaning all kinds of Low-e glass on soft brush with third.

- wind cadres use professional design of two pairs of wind knife, wind knife wind dry better effect!

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 3High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 4

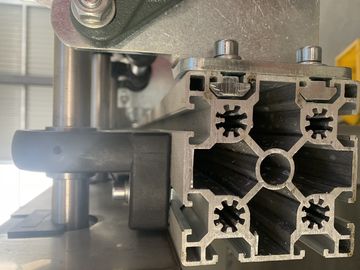

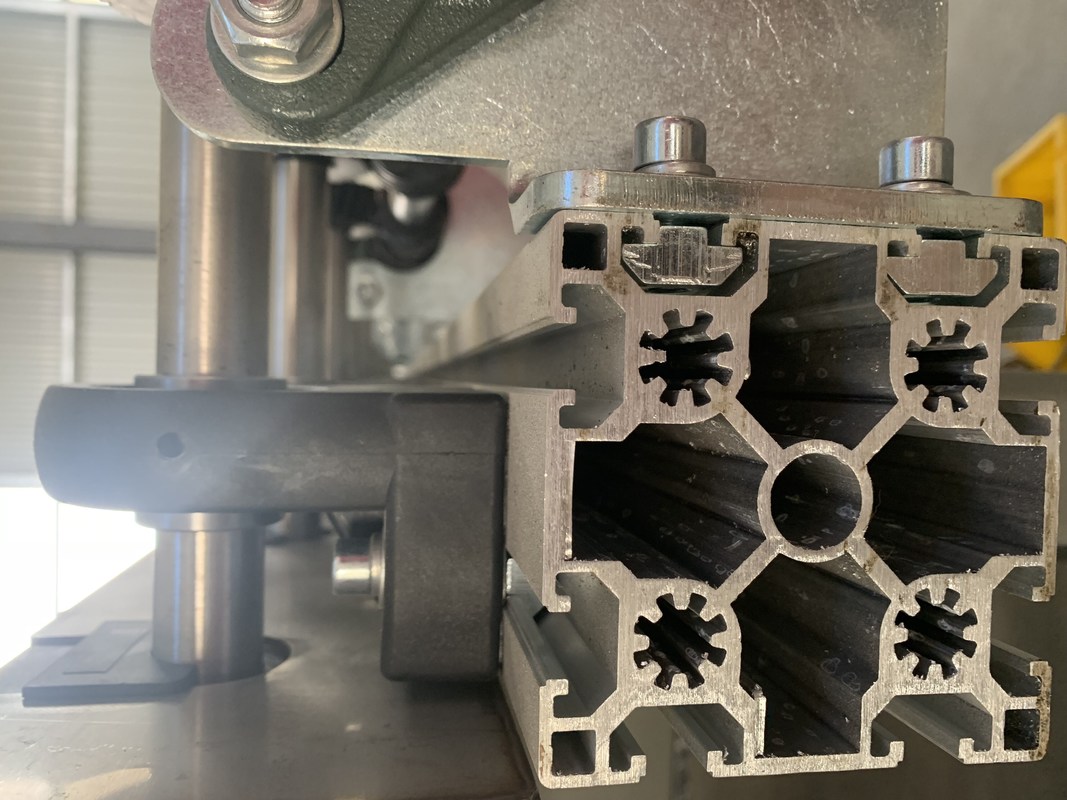

►Stainless Steel parts showing



High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 5The drying section is composed of 2 sets of high-pressure professional air knives.

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 6

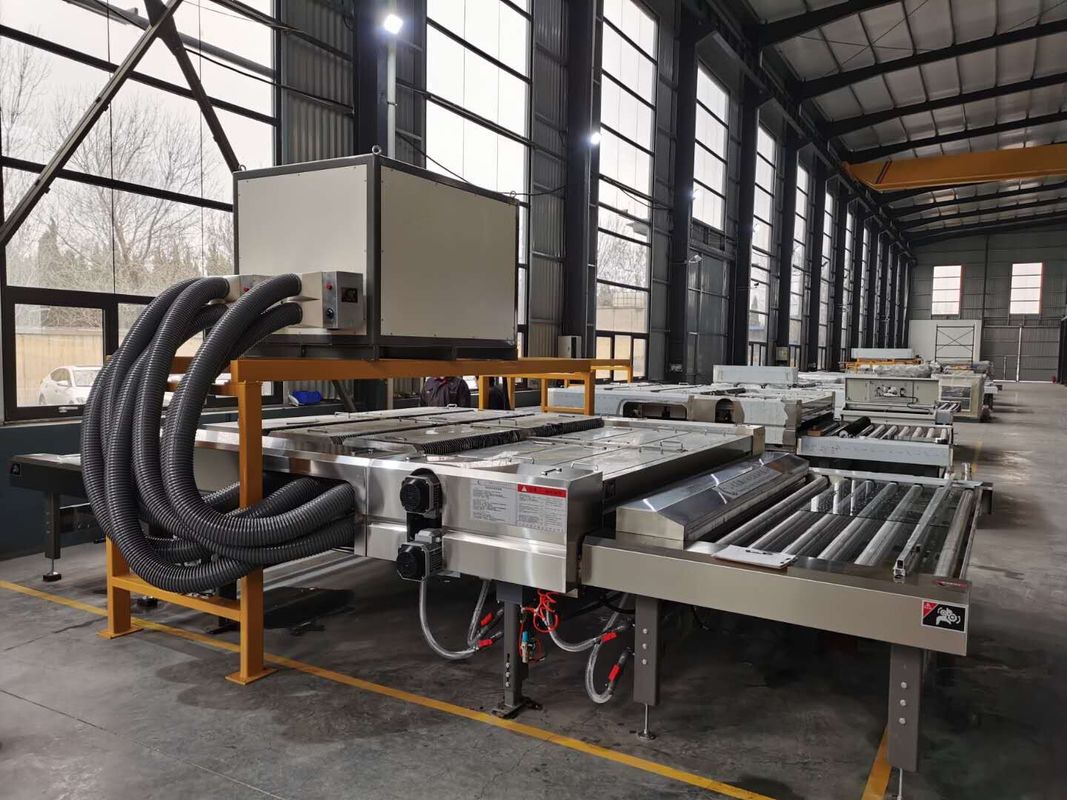

►Glass washer installition in workshop



High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 7

We could supply one section cleaning, two-section cleaning or multi-sections cleaning.



High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 8

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 9

High Efficient Horizontal Glass Washing Machine With Soft Low E Brushes 10
