Product Details:
|
| Name: | Horizontal Glass Washing And Dring Machine | Material: | Stainless Steel Touching Water Part |
|---|---|---|---|
| Max. Glass Size: | 1200mm*2000mm | Min. Glass Size: | 150mm*150mm |
| Glass Thickness: | 3mm-19mm | Speed: | 1-3.5m/min |
| High Light: | 3mm Glass Washing And Drying Machine,Glass Washing And Drying Machine Horizontal,Glass Washing And Drying Machine 3.5m/min |
||

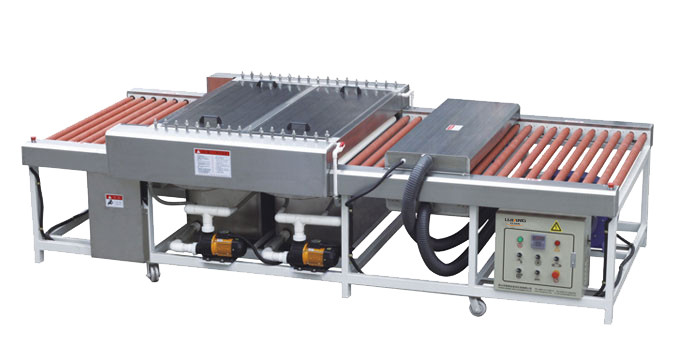

Horizontal Glass Washing Machine for insulating glass processing
Structural characteristics of Horizontal Glass Washing Machine
1. Glass Washing Machine adopts horizontal structure, used for cleaning and drying plate glass;
2. Glass Washing Machine is mainly composed of inlet segment, cleaning segment, drying segment and outlet segment;
3. The main drive is chain drive, stepless speed regulation;
4. All guard and collar gold are made of stainless steel;
5. Glass Washing Machine conveying rubber is made of superior butyl fine rubber (vulcanized rubber all-wrapped rubber structure);
6. Four pairs of brush, four pairs of sponge, one tank configuration
Technical parameters of Glass Washing Machine:
1. The overall dimension is about 3300mm*1750mm*1100mm (length x width x height).
2. Maximum glass range: 1200mm*2000mm.
3. Minimum glass size: 150mm*150mm (limited to single row on left and right sides).
4. The thickness of glass is 3mm-19mm.
5. Speed range: 1-3.5m/min.
6. Table height: 810 pull 10mm.
7. Total power: 12kw.
8. Weight: about 800kg.
9. Power Supply: 380V 50Hz.
10. Water source: self-circulation, tap water (conforming to civil water standards) and deionized water supplement (deionized water equipment shall be prepared by the demander)
