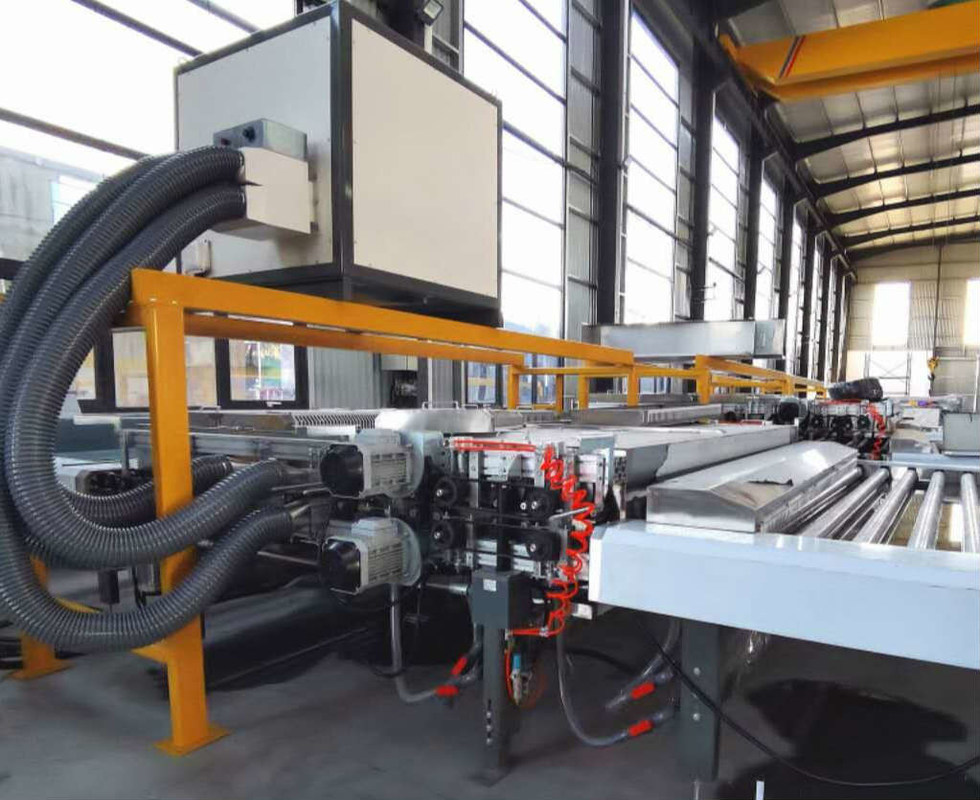

Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine

Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine
Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine

Large Image :  Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJWQ2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 25000 - 35000 per set
Packaging Details: Container
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine

Description
Production Name: Horizontal Glass Washing Machine Brushes: Soft Brushes
Material: Stainless Steel Glass Width: 2500mm
Glass Size: Option Warranty: 1 Year
Brand: LIJIANG GLASS
High Light:

2500Mm Horizontal Glass Washing Machine

,

2600Mm Horizontal Glass Washing Machine

,

2600Mm window glass cleaning machine

Horizontal Glass Washing Machine With 2600Mm Glass Width And 2500Mm Length



CP-2500A (12 m/min) glass washing machine technical parameters

Technical parameters:
1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min

5. Main drive, brush speed regulation method: frequency control

6. Table height :900±25mm

7. Total power: 42KW(water-bearing wind heating: 15KW)

8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)

9. Power source: 380V 50Hz

10. Dimensions (length × width × height) : approximately 6260×4800×3100

11. Weight: about 3940kg



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg

1. USES:

The horizontal glass washing machine CP-2500A is used for cleaning and drying the upper and lower surfaces of ordinary  glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Soft Brushes 2600Mm 2500Mm Horizontal Glass Washing Machine 0

2. Structural characteristics:

1. Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving 70% efficiency;

2. The rest of the sheet metal parts are sprayed with advanced mechanical

paint or powder;

3. The rubber roller is made of vulcanized rubber with stainless steel shaft;

4. The washing part in contact with water is made of stainless steel;

5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);

8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;

9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass;

10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain;

11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.

12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

Main drive motor Zhejiang province
Brush motor Zhejiang province
High pressure air blower Guangdong province
The water pump Shanqing
brush Anhui province
Rubber roller Guangdong province
Frequency converter VEICHI/Rexroth
Electric parts Schneider
