Product Details:
|
| Name: | Automatic Insulating Glass Sealing Machine | Max Size: | 2500*4000mm |
|---|---|---|---|
| Advantage: | Shaped Glass Steeped Glass | ||
| High Light: | double glazing production,insulating glass line |
||
Full Automatic and high-efficienc Silicon Sealing Robot for Insulating Glass Processing
Vertical Insulating Glass Sealing Robot LJTJ2545
Vertical Insulating Glass Sealing Robot adopt manmachine interface, the operation is more convenient and intuition with the simplified thinking design interface.High automation, high efficiency, suitable for glass deep processing enterprise to use.
Vertical Insulating Glass Sealing Robot Adopt 8 servo motors, adopts world famous brand(Japan Anchuan), the performance is stable.Adopt timing belt to keep smooth convey with accurate position.
Min & Max glass sizes can be optional in the Vertical Insulating Glass Sealing Robot .
Vertical Insulating Glass Sealing Robot can Automatically measure glass size, glue depth and glue speed with linear adjustmentElectric and compressed air switch valve in the Vertical Insulating Glass Sealing Robot.Ensure electrical automatic switch, stable performance and uniform coating.
Vertical Insulating Glass Sealing Robot Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on), stepped glass.
Vertical Insulating Glass Sealing Robot Can coat triple glass by one time.

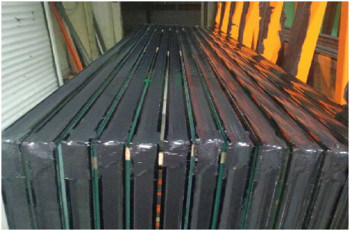

The glass comersare edge and corner full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.

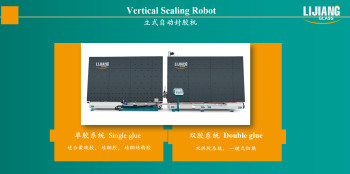

Vertical Insulating Glass Sealing Robot Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.(optional)
The spare parts in Vertical Insulating Glass Sealing Robot are produced with high standardization and high precision, ensure the machine can be used with long-term stability,Full automatic and high-efficiency machine.
Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
* Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.
Main technical parameter
|
Max.glass size |
2500*40000mm |
|
Min.glass size |
300*300mm |
|
Glass thickness |
12-56mm |
|
Working speed |
5-40m/min |
|
Air pressure |
0.5-0.7MPa |
|
Squeeze pressure |
32MPa |
|
Voltage power |
380V 12kw |
|
Overall dimension |
8000*1500*2700mm |
►►►V-model convery belt showing
Main components list
| Servo motor | Japan Yaskawa |
| Servo driver | Japan Yaskawa |
| CPU | Japan Yaskawa |
| Low voltage component | Siemens |
| Guideway | Taiwan Hiwin |
| Switching power supply | Taiwan MW |
| Optoelectronic switch | Korea Autonics |
| Pneumatic component | Taiwan Airtac |
| Touch screen | Taiwan Wenview |
| Travel switch | Taiwan Tiande |

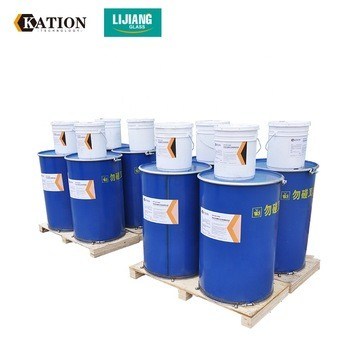

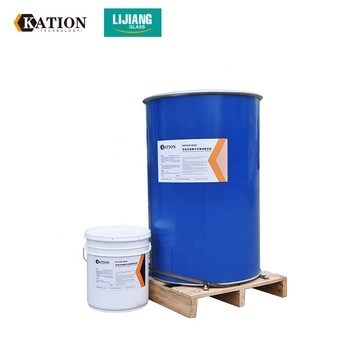

| Product Name | Chinese factory insulating glass two component silicone sealant |
| Type | Two part silicone sealant |
| Mixed Specific Gravity | 1.38-1.39g/ml |
| The mixing ratio | A:B10:1 |
| Density | 1.5(g/cm3) |
| Usage | Construction, insulating glass/ hollow glass |
| Material | silicone |
| packaging | drum or customized |
| Color | black and white |
| Port | Qingdao |
| Product Keywords | insulating glasstwocomponentsilicone sealant,twocomponentbig drum neutralsiliconesealants190L 19L,insulating glasstwocomponentneutralsiliconesealant |
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
* Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.
