Automatic Vertical And Horizontal Washer Chinese Factory Derictly Sales

Large Image : Automatic Vertical And Horizontal Washer Chinese Factory Derictly Sales

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJLBQJ2500

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	20days
Payment Terms:	T/T, L/C
Supply Ability:	10set/month

Contact Now

Automatic Vertical And Horizontal Washer Chinese Factory Derictly Sales

Description

Name:

Vertical Washing And Drying Machine

Material:

Stailess Stell Touching Water Part

Advantage:

Brush For Low-e

Feature:

Easy Opration

High Light:

glass processing machines

double glazing production

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

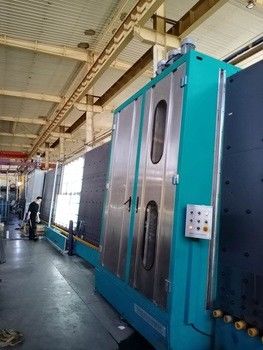

Automatic Vertical And Horizontal Washer Chinese Factory Derictly Sales 0

Glass Washing Machine LJLBQJ2500

Automatic Vertical And Horizontal Washer Chinese Factory Derictly Sales 1

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

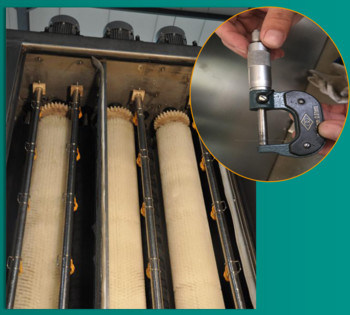

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
The material in the washing and drying section all made by stainless steel.
The main power consumption is mostly appear in the washing and drying section of the IG line.
The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
The who drying machine use the sound insulation design.can reduce the noise.

►The drying roon system

►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

Glass Washing Machine LJWBQJ2500
LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Structural characteristics
1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；

			Maximum glass width
			2500mm (effective maximum: 2650mm)

			Minimum glass specification
			400mm×400mm (limited to single row on left and right sides)

			Glass thickness
			3mm-25mm (digital display)

			Speed range
			glass thickness within 3-25mm Vmax=1-12m/min

			Main drive, brush speed regulation method
			frequency control

			Table height
			900±25mm

			Total power
			42KW(water-bearing wind heating: 15KW)

			Water source
			self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)

			Power source
			380V 50Hz

			Weight
			3940kg
