Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors

Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors
Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors

Large Image :  Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang-glass
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden cases
Delivery Time: 2-3 Months
Payment Terms: T/T
Supply Ability: 30 Sets Per Year

Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors

Description
Max.glass Size: 2.5m*2.5m Glass Thickness: 12-56mm
Servo Motor: Siemens PLC: Siemens
Color: Blue And White Service: Global Door-to-door Service
High Light:

glass processing machines

,

double glazing production

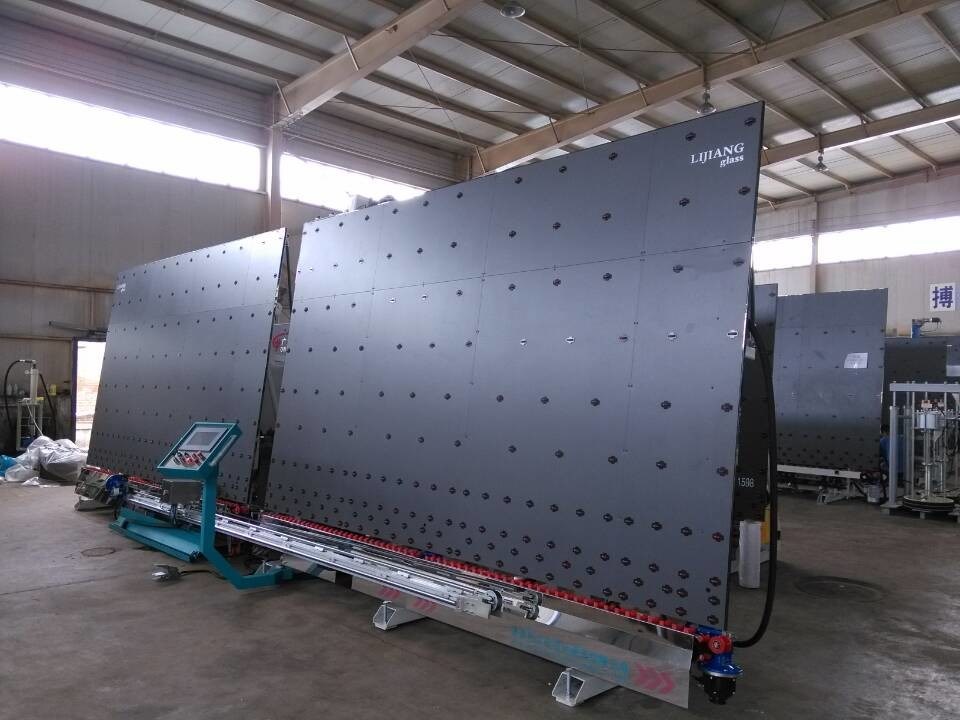

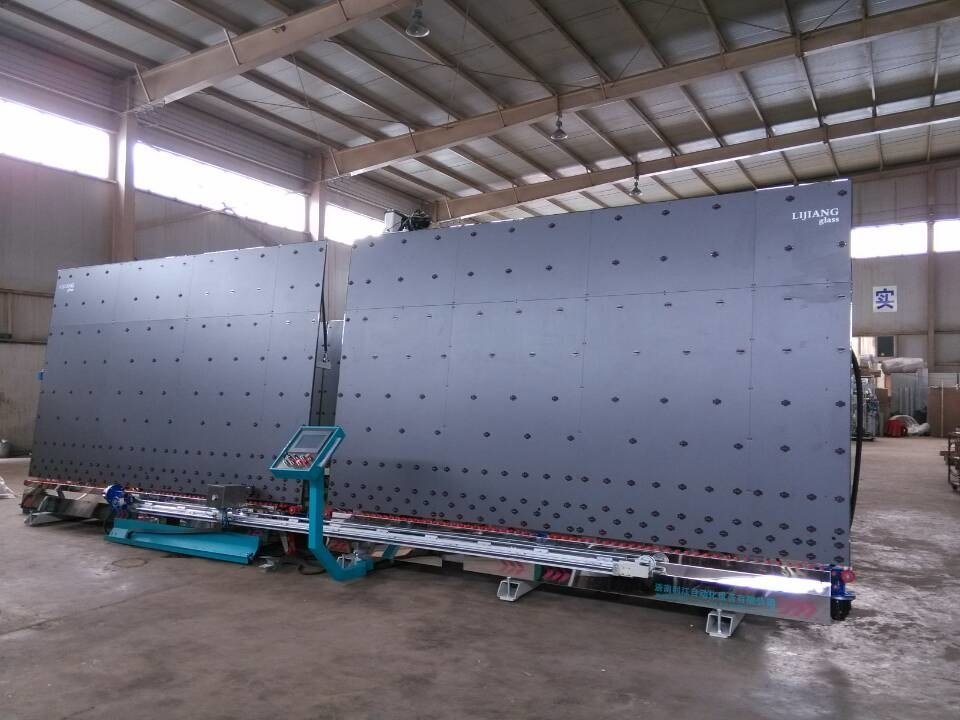

Ji Nan Lijiang Vertical Insulating Glass Sealing Robot LJTJ2540





Minimum and maximum glass sizes can be optional



8 servo motors are used



Miemens servo control system with stable performance is adopted



Automatically measure glass size,glue depth and glue speed by linear adjustment



Timing belt is adopted to ensure smooth transportation and accurate position



Round glass corners,no bubbles,smooth surface,no need



Fully automatic high-efficiency machine



The new scraper design especially makes the ig train very even on the sides and corners without any bubbles



The utility model relates to an automatic repair of glass corner with beautiful surface



Smooth transportation,no scratches and pollution



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 0



Detail

  • A set of pumps A and B

With A single A component and A single B component.Glue A, B automatic mixing, automatic ratio.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 1



  • Two sets of pump A and B

Equipped with two sets of component A and two sets of component B, can be used for silicone rubber, polysulfide rubber, silicone structure rubber and other two different sealants.And so on.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 2



  • The back glue device

When the pressure increases, more glue B will automatically return, saving material.

  • Double chuck device

Two suction cups are used to prevent the glass from moving during sealing.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 3



  • Sealing assembly

Siemens servo motor is used to control the 360° rotation of the sealing part.Set the scraper blade to scrape out extra glue without repairing the glass corner a second time.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 4

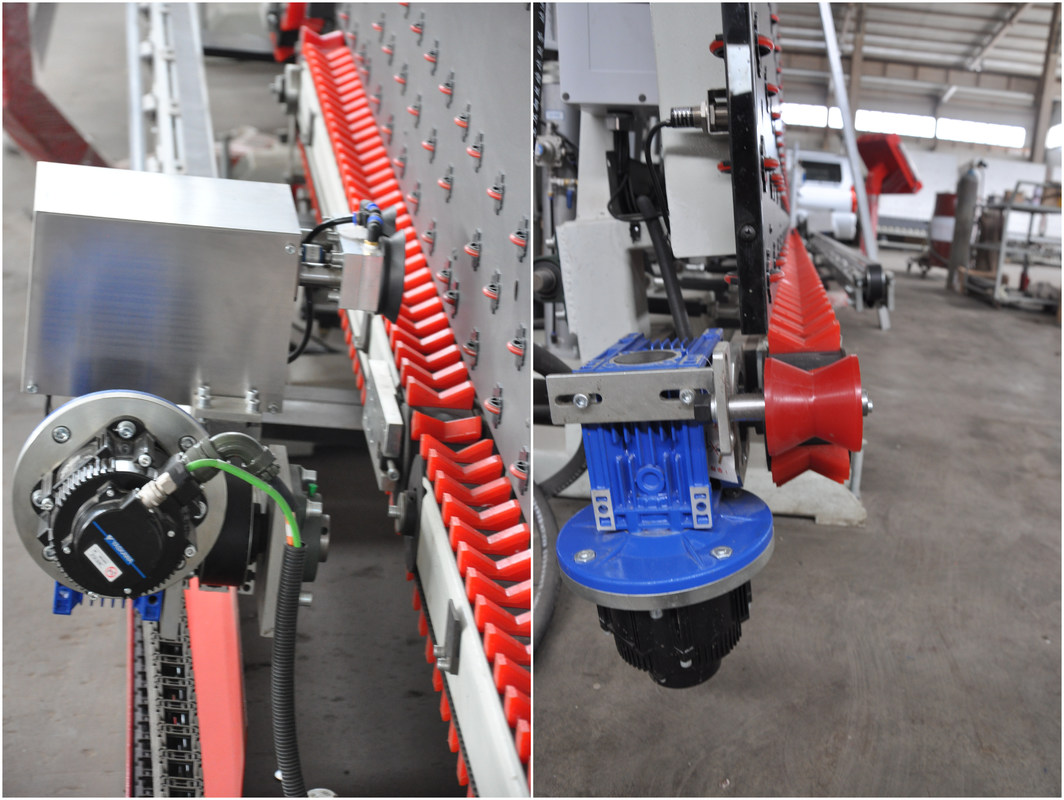

  • Synchronous gear belt

The time belt device of the invention guarantees the smooth transmission and accurate positioning of the glass.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 5



  • Intelligent sensor

Automatic positioning of glass and photosensitive adhesive depth, coating speed can be adjusted online.

  • Storage capabilities

When the glass size is less than 1.8m, it can store three pieces of insulating glass.



Vertical Insulating Glass Production Line / Insulating Glass Sealing Robot 8 Servo Motors 6



  • Shape glass and triple function (Optional)

With the development of new technology, the sealing robot can coat glass in eight shapes according to the needs of the glass market.

  • Stepped glass (Optional)

We put the nose in front, which will make it easier to make stepped IG units.It can connect to the IG wire.

  • Manual device

Each individual unit is equipped with manual operation for easy adjustment.

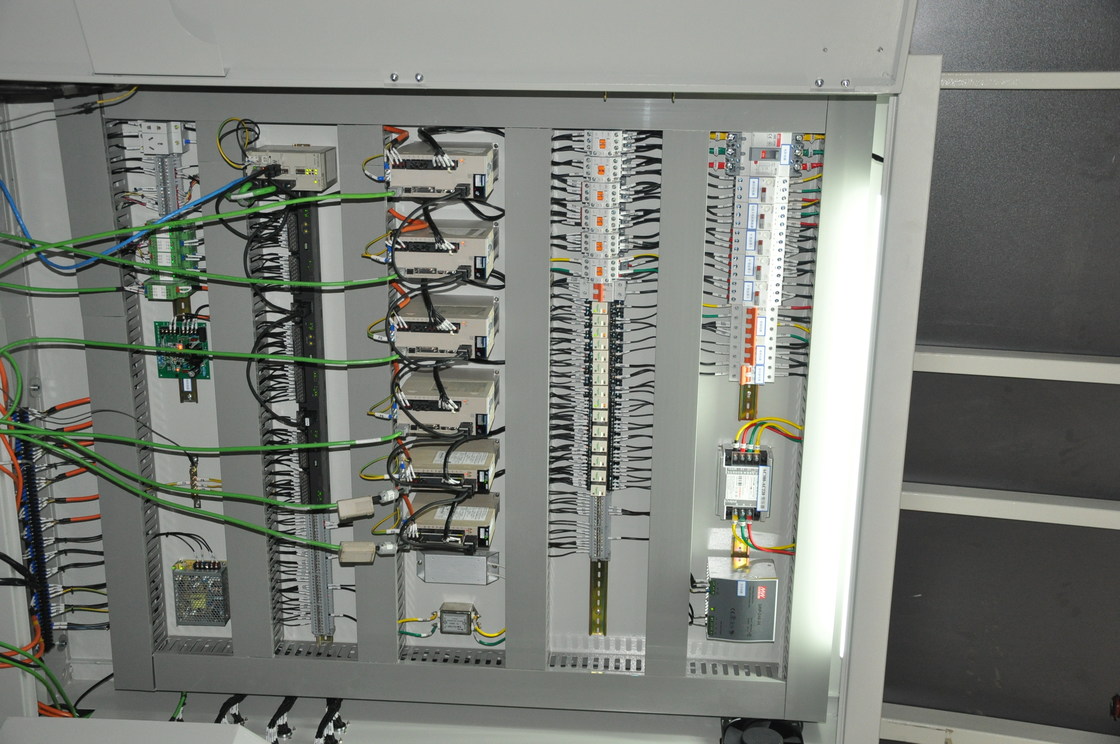

Main electrical components



The main electrical parts adopt Siemens, SMC and other famous spare parts to keep more stable performance.



Technical data, detailed technical data



Max.glass size

2500mm*2500mm

Glass thickness

12-56mm



List of major components



Servo motor

Siemens

PLC

Siemens
