Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole

China Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole supplier

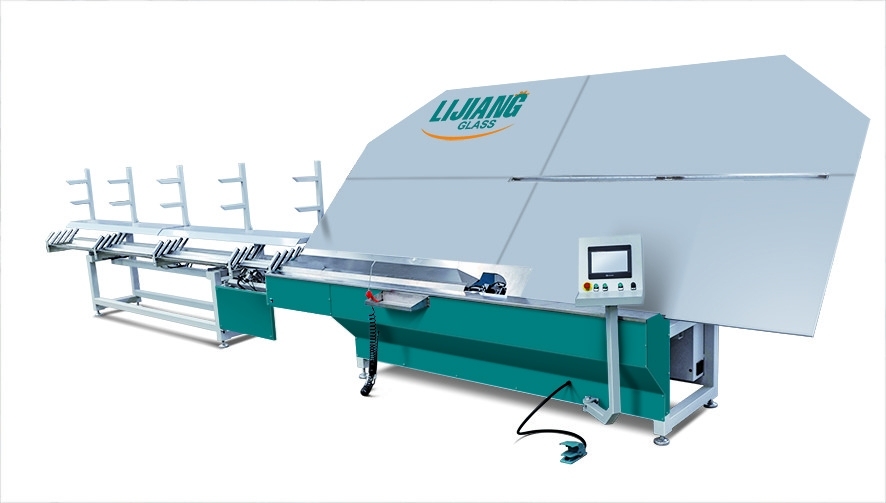

Large Image :  Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole

Product Details:

Place of Origin: JiNan China
Brand Name: LiJiang Glass
Certification: CE
Model Number: LJZW2020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 23000-28000
Packaging Details: Wooden box
Delivery Time: 15-30 Days
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Color: Green Air Supply: ≥0.65MPa
Total Power: 2.5KW Voltage: 220/380V
Frequency: 50Hz Dimension: 10500Mm*2200Mm*2600Mm



Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole



Technical data



Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm







Main feature

  • Germany Siemens PLC control system,touch screen interface
  • Japan FUJI CNC servo control system
  • Four spacer size storage units
  • Using servo system to control feeding mechanism



  • Automatically cut and feed aluminum spacers
  • Auxiliary function of adjustment for bending large aluminum frame
  • Aluminum spacers are available in different sizes and sizes
  • Bend shaped spacer frames continuously
  • Separated guard board outside of bender
  • Automatically avoid the connection while bending and cutting
  • Pause and Reset device for handling equipment failures
  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer)



  • USB input function, read the excel format file directly etc (Optional)
  • Stainless steel (Optional)
  • Automatic drill gas filling hole (Optional)
  • Connect to ERP system (Optional)
  • Spacer printing code function (Optional)
  • Printing label sticker function (Optional)



Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole





Fully Automatic Spacer Machine For Big Frame Rectangle Arc With Gas Filling Hole
