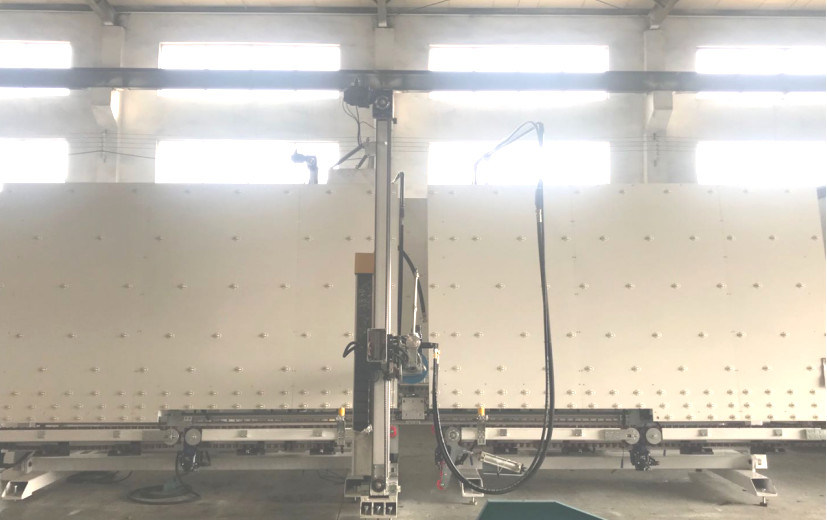

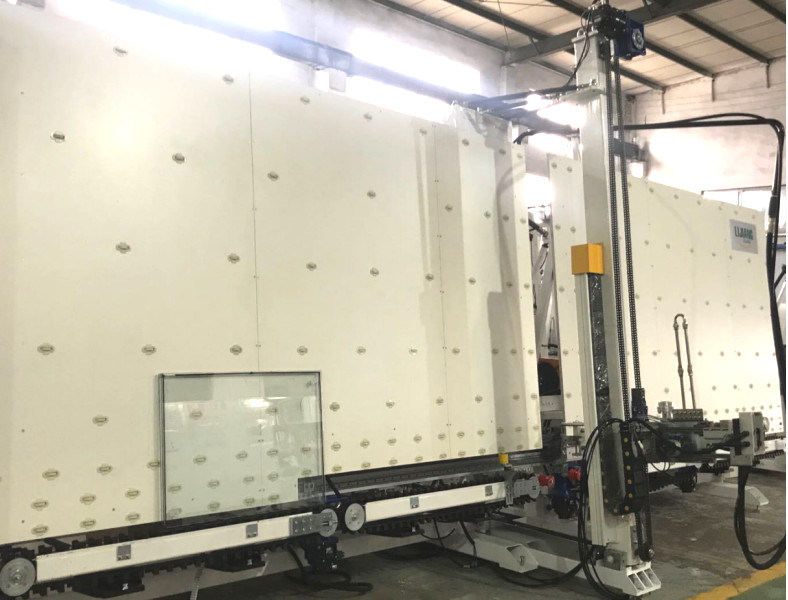

Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot

Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot
Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot

Large Image :  Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30days
Supply Ability: 6sets/month

Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot

Description
Switch: SIEMENS Servo Motor: Japan YASKAWA
Max.glass Size: 2500mm Min.glass Size: 170mm*400mm (2000mm Machine)
Glass Thickness: 12-56mm Working Speed: 5-40m/min
Air Pressure: 0.6-0.8MPa Squeeze Pressure: <350kg/m³
Plane Angle: 6°- 9° Max Glass Weight: 400kg
Voltage Power: 380V 12kw Overall Dimension: 8700mm*2000mm*3500mm
I/O Model: Japan MSYSTEM CPU: Japan YASKAWA
Name: Sealing Robot Machine
High Light:

glass making machine

,

double glazing glass machine

Sealing robot Sealing robot,Sealing robot machine ,Sealing machine,Sealing ,Vertical Insulating Glass Sealing Robot



Application

Min & Max glass sizes can be optional

Adopt 8 servo motors

Adopt Japan ANCHUAN servo control system with stable performance

Automatically measure glass size, glue depth and glue speed with linear adjustment

Adopt timing belt to keep smooth convey with accurate position

Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

The glass corners are full without air bubbles, smooth surface, no need to

Full automatic and high-efficiency machine

New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

Automatically repair glass corners with beautiful surface

Smooth convey without scratch and pollution

Single-function parts are equipped with manual functions, easy adjustment

Shaped IG units (Optional)

Stepped IG units with four sides (Optional)

Double and Triple IG units



  Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot 0                        Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot 1

Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.When the pressure increasing, more Glue B will flow back automatically, saving materials.The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.



 Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot 2                        Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot 3                Servo Motors Driven Sealing Robot Machine / Vertical Insulating Glass Sealing Robot 4





Technical data

Max.glass size 2500mm
Min.glass size 170mm*400mm (2000mm machine)
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm
