2500Mm Insulating Glass Processing Line With Filling Argon Gas Online

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online
2500Mm Insulating Glass Processing Line With Filling Argon Gas Online
2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 2500Mm Insulating Glass Processing Line With Filling Argon Gas Online

Large Image :  2500Mm Insulating Glass Processing Line With Filling Argon Gas Online

Product Details:
Place of Origin: JINAN CHINA
Brand Name: JINAN CHINA
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 70000 - 120000 per set
Packaging Details: Containers
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online

Description
Production Name: Insulating Glass Processing Line Max Glass Size: 2500mm*3500mm
Min Glass Size: 400mm*280mm Glass Thickness: 3 - 15mm
Washing Machine: Stainless Steel Pressing Machine: Adjustable Points
Warranty: 1 Year Brand: LIJIANG GLASS
High Light:

2500Mm Insulating Glass Processing Line

,

Stainless steel Insulating Glass Processing Line

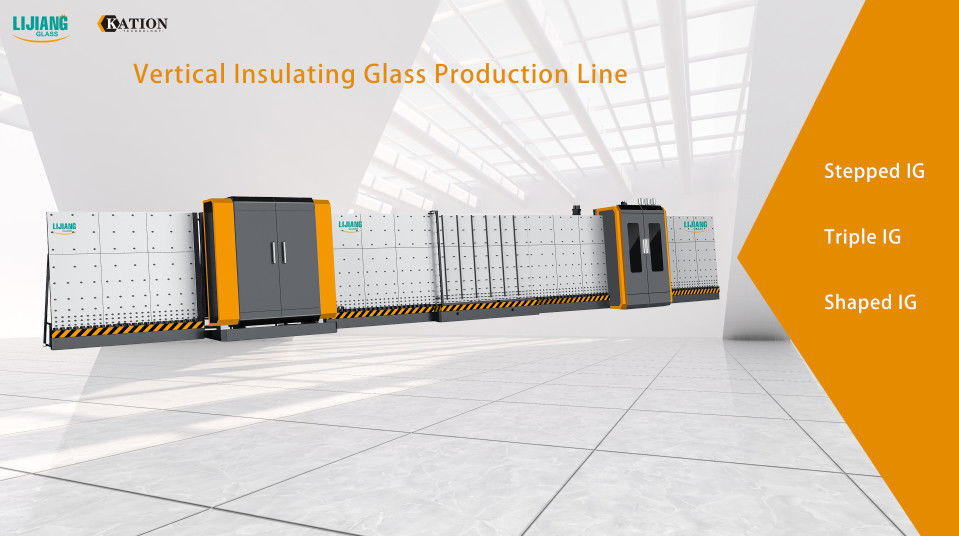

Automatic 2500 Mm Insulating Glass Processing Line With Filling Argon Gas Online

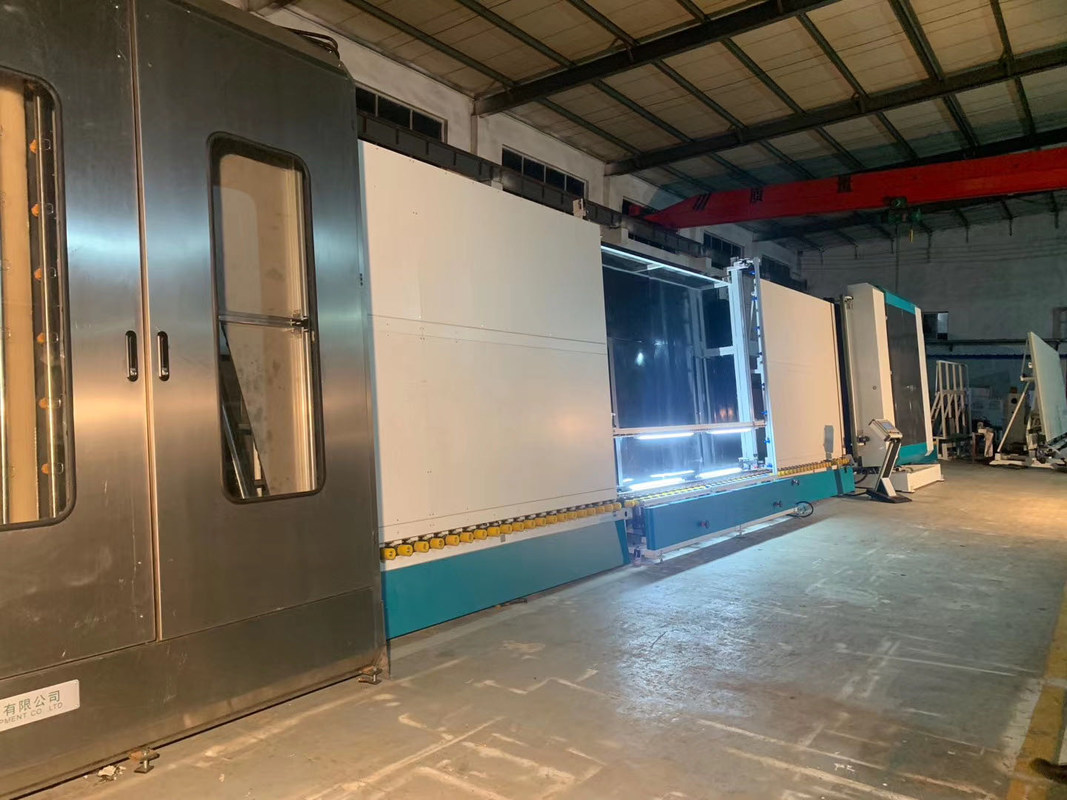

The Insulating glass processing line contains glass washing and drying machine, double glass pressing machine.

Main features of the glass washing and drying machine:

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 0

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

Main Features of glass pressing machine:

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 1

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

Main Features of the super fast IG line

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 2

Details introduce of the LJBZ2535G



Main components of production line:

The line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 3

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

02 washing machine



03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

06 pressing and filling section



2500Mm Insulating Glass Processing Line With Filling Argon Gas Online 4

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data



Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online
