Product Details:
|
| Production Name: | Butyl Extrusion Coating Machine | Application: | Coating Spacer Frame With Butyl Glue |
|---|---|---|---|
| Glue: | Butyl Glue | Voltage: | 380V 50Hz 3P |
| Condition: | New Machine | Warranty: | 1 Year |
| Function: | Making Double Glazing Glass | ||
| High Light: | 40m/Min hot melt butyl extruder,Assembly insulating glass machine |
||

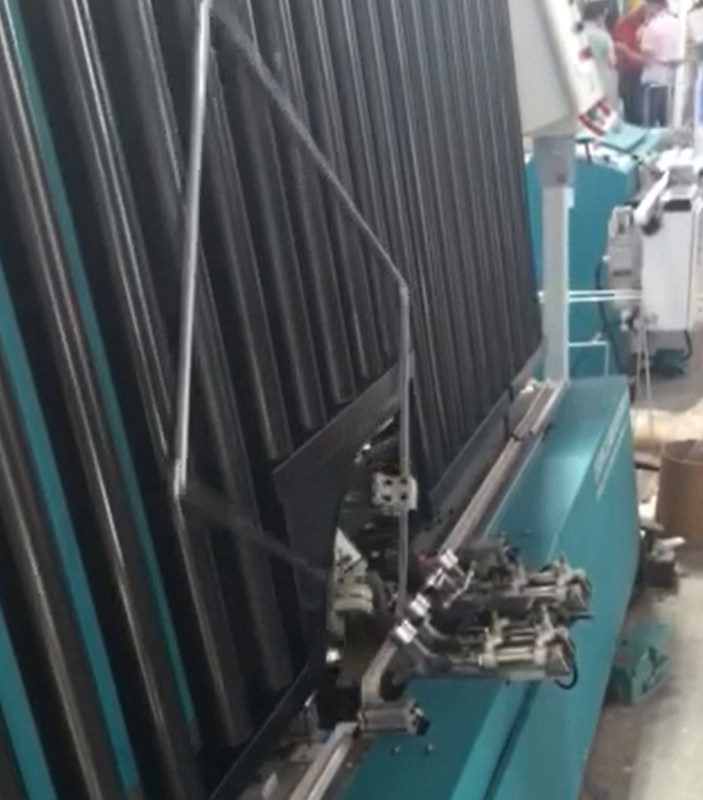

Fully automatic butyl coating machine can line with the insulating glass assembly line to realize fully automatic production, Automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system,the whole coating process does not need manual work.
Main features
(1) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
(2) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(6) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Related product
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
• Arc frame coating structure
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Fast coating speed, can up to 47m/min
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Alarm system, reminding adding butyl glue
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
