Product Details:
|
| Name: | Suction Lifting Equipment | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Liftting Wight: | 300kg | Rotated Angle: | 90° |
| High Light: | 90° suction lifting devices,Processing glass vacuum lifter |
||

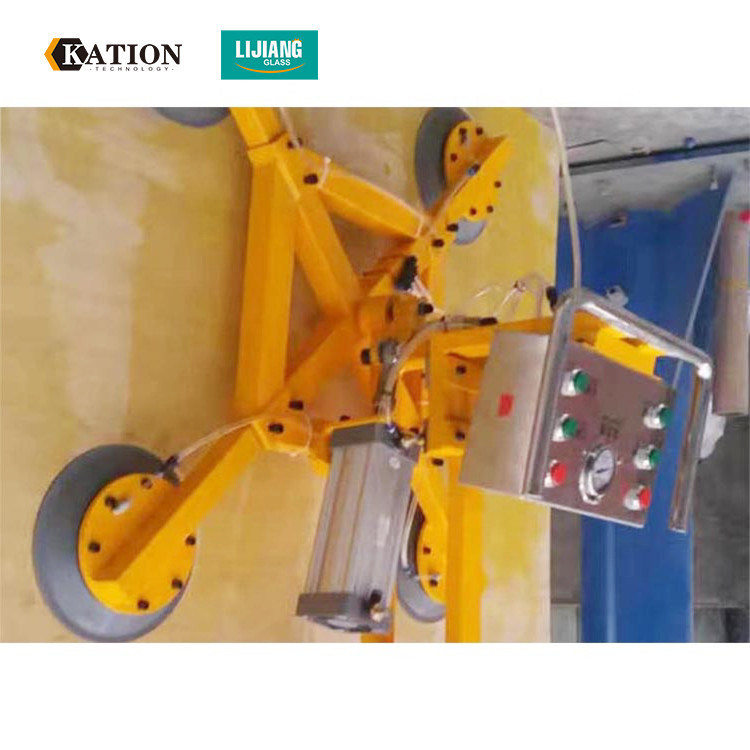

Production overview of vacuum glass lifter
1. This glass lifter is able to lift the glass sheet with300kg
2.This vacuum glass lifter is for handling insulating glass sheet.
3. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
4.It is equip with 5 suckers. But the sucker can be add according to need of the client.
5.The equipment is Stable, Easy to use and safe.
Tech Parameter of vacuum lifts hoists
| Safety-absorption | 300KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
Detail of cantilever crane
Application of glass lifter
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
Related product
Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
. Butyl Extruder Machine LJTB 01
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
• with preheating function
Related product
Smart Vertical Low-E Edge Deleting Machine
Vertical Low-E glass edge deleting machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.
►Main technical parameter
| Transmission speed | 2~29m/min |
| Edge finish speed | 2~29m/min |
| Glass thickness | 3~15mm |
| Diameter of grinding wheel | 200mm |
| Width of grinding wheel | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Min.Glass | 400×400mm |
| Max. Glass | 2500×4000mm |
| Conveyor height | 500mm |
| Total air consumption | 100L/ min |
| Total weight | 3700KG |
| Dimensions | 9700×2500×3400mm |
►Main feature
1.Two-way glass access
2.Auto-modified function
3.Auto distinguish coating side of low-e glass(optional)
4.Auto measure the size and the thickness
5.The pressure of edge deleting is stable and adjustable
6.Safety protection device auto-dedusting function
7.PLC control system,touch screen interface
8.Six servo control systems
