Product Details:
|
| Name: | Glass Cantilever Crane With Lifting Sucker | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Liftting Wight: | 800kg | ||
| High Light: | Low E vacuum lifts hoists,Sucker vacuum glass lifter |
||
Customization Glass Cantilever Crane with lifting sucker and Low-E deletion machine

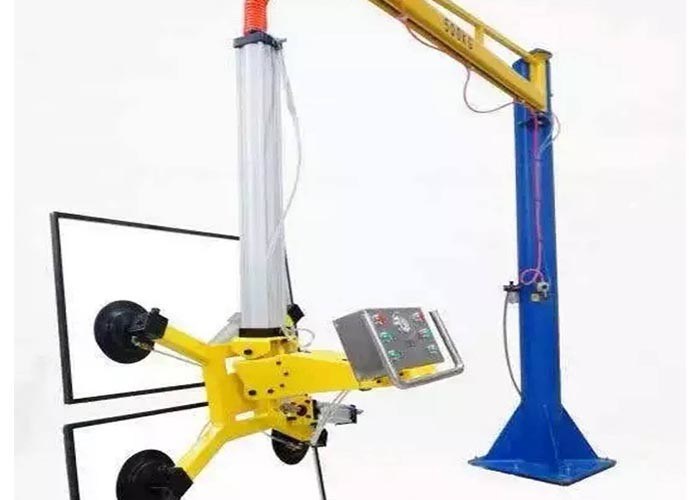

Cantilever crane LJXJ300

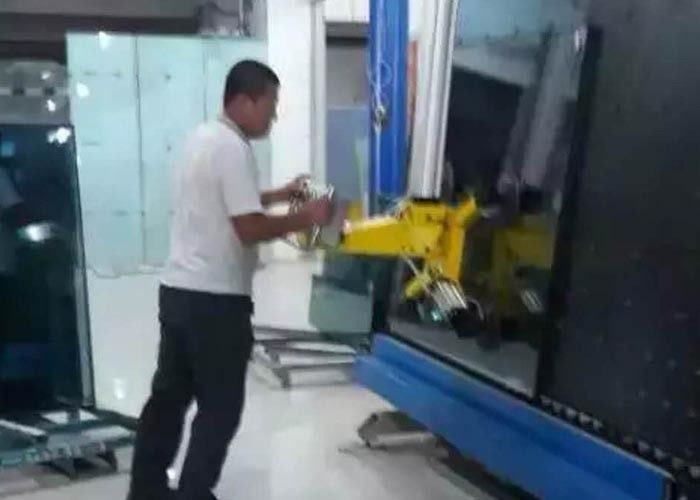

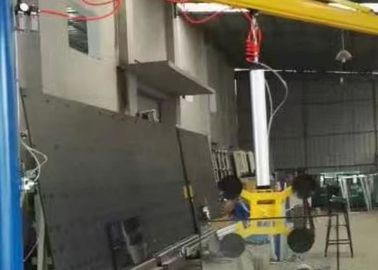

1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameter:
| Safety-absorption | 200KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.
►Main feature
1.Two-way glass access
2.Auto measure the size and the thickness
3.Auto distinguish coating side of low-e glass(optional)
4.Auto-modified function
5.The pressure of edge deleting is stable and adjustable
6.Safety protection device auto-dedusting function
7.PLC control system,touch screen interface
8.Six servo control systems
►Main technical parameter
| Transmission speed | 2~29m/min |
| Edge finish speed | 2~29m/min |
| Glass thickness | 3~15mm |
| Diameter of grinding wheel | 200mm |
| Width of grinding wheel | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Min.Glass | 400×400mm |
| Max. Glass | 2500×4000mm |
| Conveyor height | 500mm |
| Total air consumption | 100L/ min |
| Total weight | 3700KG |
| Dimensions | 9700×2500×3400mm |
Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily. This machine always work together with insulating galss production line and automatic glass cutting line without low-e deletion fuction.PLC and servo motors contrl system is usefut to make machine working stable and fast.
