Product Details:
|
| Product Name: | Butyl Extruder Machine | Type: | LJTB01 |
|---|---|---|---|
| Squeeze Pressure: | 10-18MPa | Temperature: | 110~140℃ |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | 47m/Min extrusion coating machine,Coating double glass machine |
||

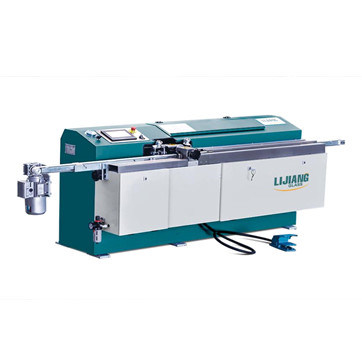

Butyl Extruder Machine for insulating glass that quickly coating speed,can up to 47m/min
1. Product overview and parameters
New butyl extruder machine is a necessary equipment for manufacturing aluminum-frame
type insulated glass, even it is necessary for Vertical insulating glass flat press production
line.The butyl that be glued on the both side of aluminum frame by New butyl extruder machine,
is the first sealant for insulating glass. So the quality of the butyl directly decides the quality of
insulating glass and using life.
1.1 Product overview
The equipment is controlled by program PLC, can automatic and exactly finish gluing function,
operators only need to support the aluminum frames, others( clamping roller, transfer and etc)
are automatic finished by setting program. This equipment is suitable for square, rectangular,
shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum
can load butyl of Φ195 * 250mm (7kg).
1.1.1 Structure description
The equipment contains 9 parts, as shown in Picture 1.1: respectively consist of transfer unit 1
, hydraulic system 2, roller system 3( linear pressure roller 1, linear pressure roller2 and arc
pressure roller), Nozzle unit 4 , thickness measurement unit 5], squeezing unit 6 , pneumatic
system 7, control system 8 and rack unit 9.
Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running
speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate
in the left side of machine( see from picture 1.2), after adjusting to the properly height, please
tighten front and back set screws. Structure of this part is simple and can be easily to adjust,it
also has quickly transfer speed, stable and reliable to operate.
In normal conditions, operator can independently finish gluing butyl on the two side of aluminum
frame within the size of 2000 * 2000 mm. When the size is more than 2000 mm, should be done
by two people. Assist operator should be away from the conveyor belt more than 200mm, in order
to avoid the danger of clamping and involving in the belt.
Teflon Belt
Using non-adhesive belt, keep quickly coating speed, saving a lot butyl.
Crossbeam adjustable structure
Crossbeam adjustable structure controls the spreading height.

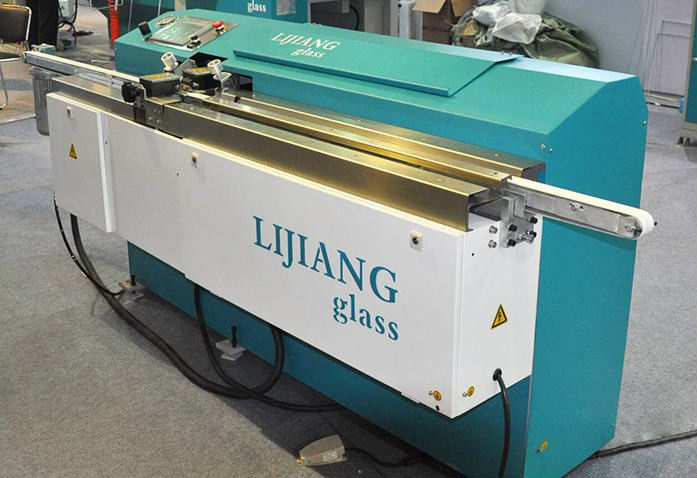

Beijing Expo
The device was showed in Beijing expo of May, 2017. It attracted many people’s eyes.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415v 50 hz 3 phrase |
| Dimension | 2950×890×1004mm(L×W×H) |
| Weight |
750kg |
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON |
Japan |
