Product Details:
|
| Voltage: | 380V 50Hz 3P | PLC: | SIEMENS |
|---|---|---|---|
| Product Name: | Butyl Extruder Machine | Warranty: | 1 Year |
| Application: | First Sealing Machine For Making Insulating Glass | Color: | All Colors |
| Function: | Coating First Sealing Glue On Spacer Frame | ||
| High Light: | 47 M/Min hot melt butyl extruder,Fast insulating glass machine |
||

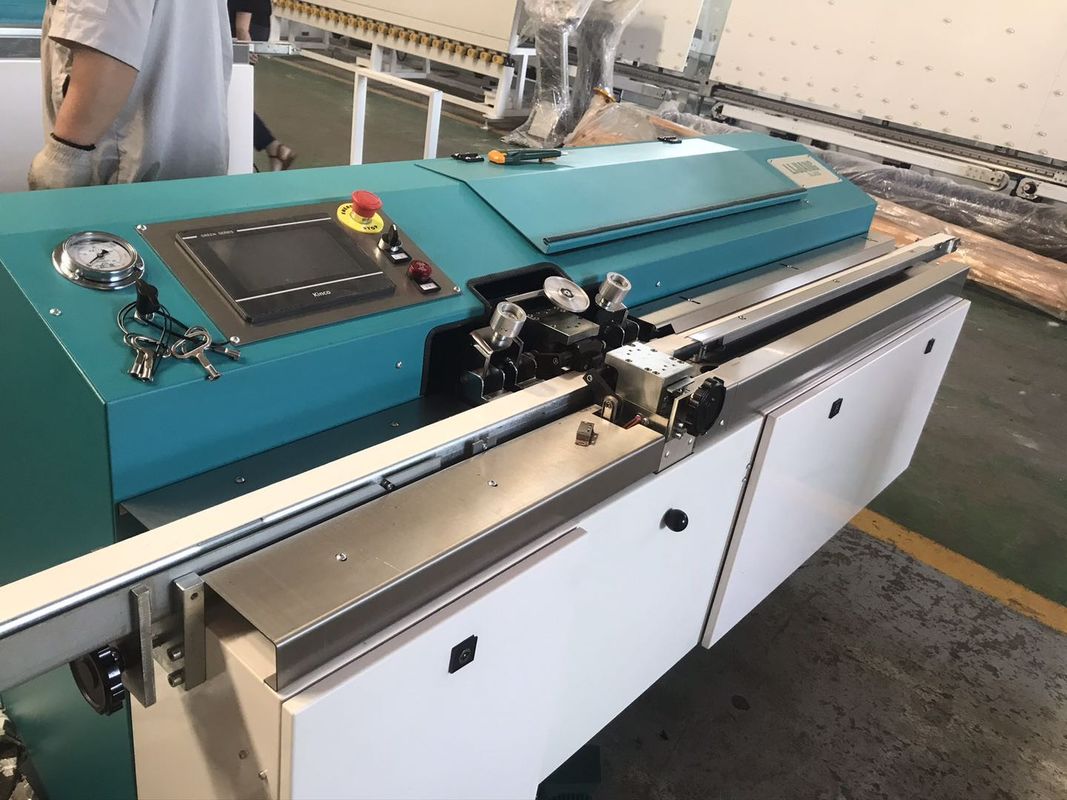

Famous 47 M/Min Fast Coating Speed Automatic Butyl Extruder Machine
Main technical parameters:
Power supply: AC380V, 50Hz
Glue application speed: 0-47m / min
Aluminum spacer width: 6mm-27mm
Power: 5.7kw
Air pressure: >0.6MPa
Glue weight : 4 - 7g/m
Max spacer frame size : 2500mm*3500mm
Dimension: 2800 * 700 * 900mm
Main performance features:
•PLC control system, KINCO touch screen interface
•Hydraulic system using German brands
•Alarm system, reminding adding butyl glue
•The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
•Exhaust function, pre-heating time is less than 15mins
•Short preheating time, improve work efficiency
•Coating shape frames, the roller device can be selected at will
•Fast coating speed, can up to 47m/min
•Stable pressure and even coating
•Saving glue. The amount of glue on both sides can reach 4g / m
•Big glue barrel, 200L. (Optional)
Normal butyl machine is with 7kg butyl glue barrel, so workers need to change butyl glue every day or manytimes. However, 200L big butyl glue barrel can save a lot of time for the users.
The butyl extruder machine adopts the non-stick belt, non adhesive synchronous belt is adopted, the alcum powder is not needed for cleaning.

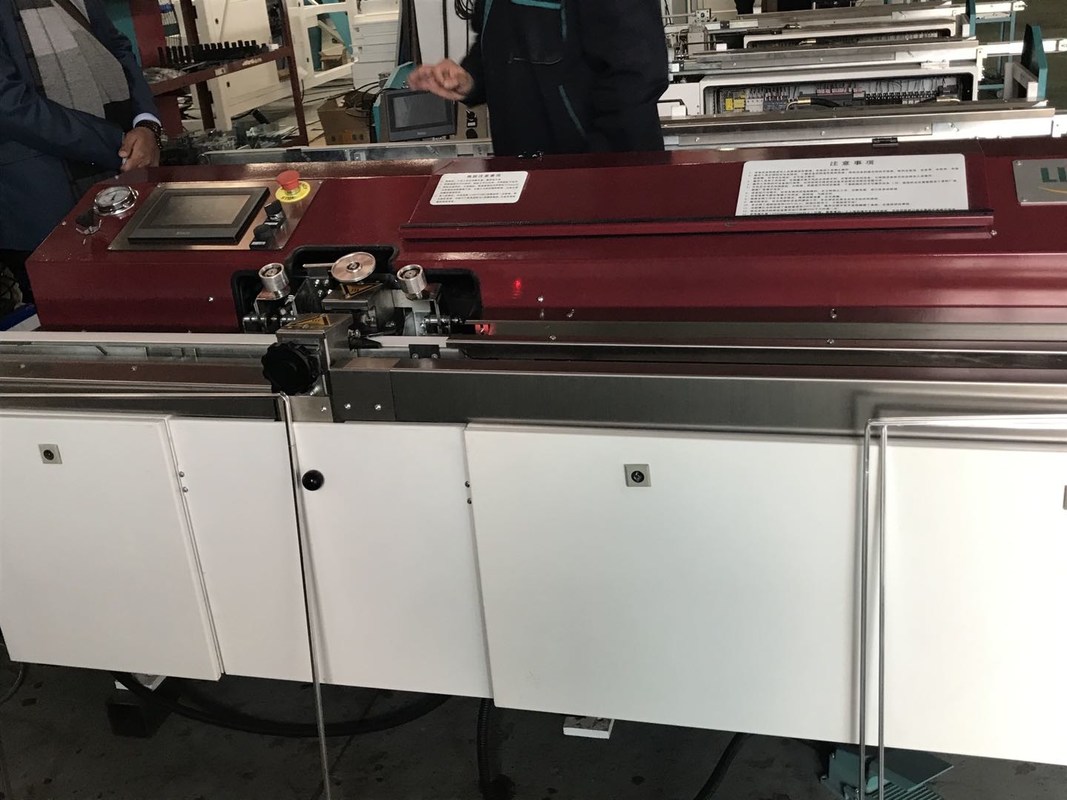

Butyl rubber coater is a special equipment for the production of insulated glass (IG units). As one of the important coating machine of producing double glazing glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is highly automatic, easy to operate and convenient to use.
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North America, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up branches in New Delhi, India. At present, the export of products accounts for more than 50% of the company's total sales.
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.
We have advanced production technology in the world, from raw material processing to assembly, machine testing and debugging, which can provide optimal CNC solutions for customers at home and abroad. Adhering to the enterprise tenet of "precision manufacturing, quality LIJIANG", we choose international famous brands such as Siemens of Germany and OMRON of Japan as our main suppliers, and our products are highly praised by customers at home and abroad.
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
