Adhesive Butyl Sealant Coating Machine

Adhesive Butyl Sealant Coating Machine
Adhesive Butyl Sealant Coating Machine Adhesive Butyl Sealant Coating Machine Adhesive Butyl Sealant Coating Machine Adhesive Butyl Sealant Coating Machine

Large Image :  Adhesive Butyl Sealant Coating Machine

Product Details:
Place of Origin: China Shandong
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 6000-7000usd
Packaging Details: Woodencase ect
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20SET/MONTH
Contact Now

Adhesive Butyl Sealant Coating Machine

Description
Control: PLC Total Power: 1kw
Filling Time: Adjustable Name: Adhesive Butyl Extruder Machine Butyl Sealant Coating Machine
High Light:

glass filling machine

,

desiccant filler

Adhesive butyl extruder machine Butyl sealant coating machine

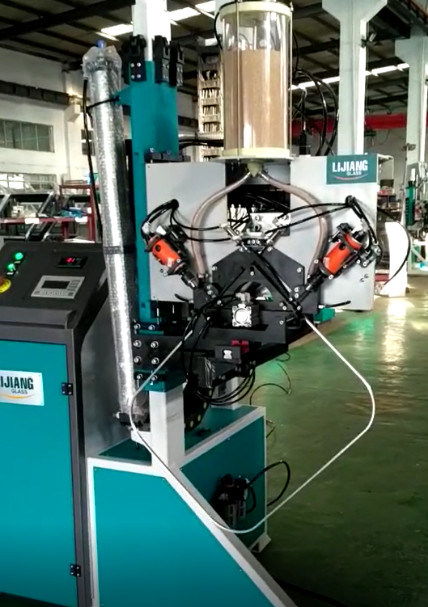

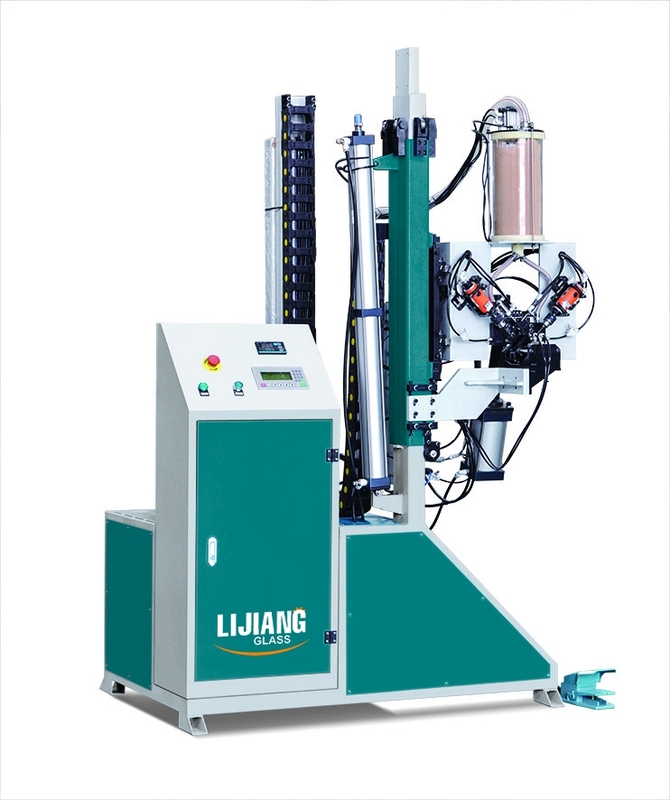

Butyl extruder machine type LJTB01 is used to spread the aluminum spacer frame evenly with hot melt butyl. This equipment uses a large electric control panel to facilitate operation. Aluminum conveyor is controlled by frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for energy saving. The compression system adopts pneumatic and hydraulic supercharging system, making the compression pressure more stable. The dispensing cylinder uses a vertical rotating support system and facilitates refilling of butyl. Electric and air pressure can extend the life of the clamping system and set the heating time to 24 hours. The distance from the clamping head can be adjusted automatically according to different aluminum spacers. The machine has reached the world technology with the features of full function and stable operation mode.

Adhesive Butyl Sealant Coating Machine 0
Desiccant filling machine can automatically drill holes in the gap frame to fill the desiccant and sealer. The desiccant filling machine control system adopts Germany Siemens, the filling speed is fast and stable operation to ensure the effective closing characteristics of the sealer. The desiccant filling machine improves the quality of the insulating glass, and is a necessary equipment for the insulating glazing process.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg

Machine Details:

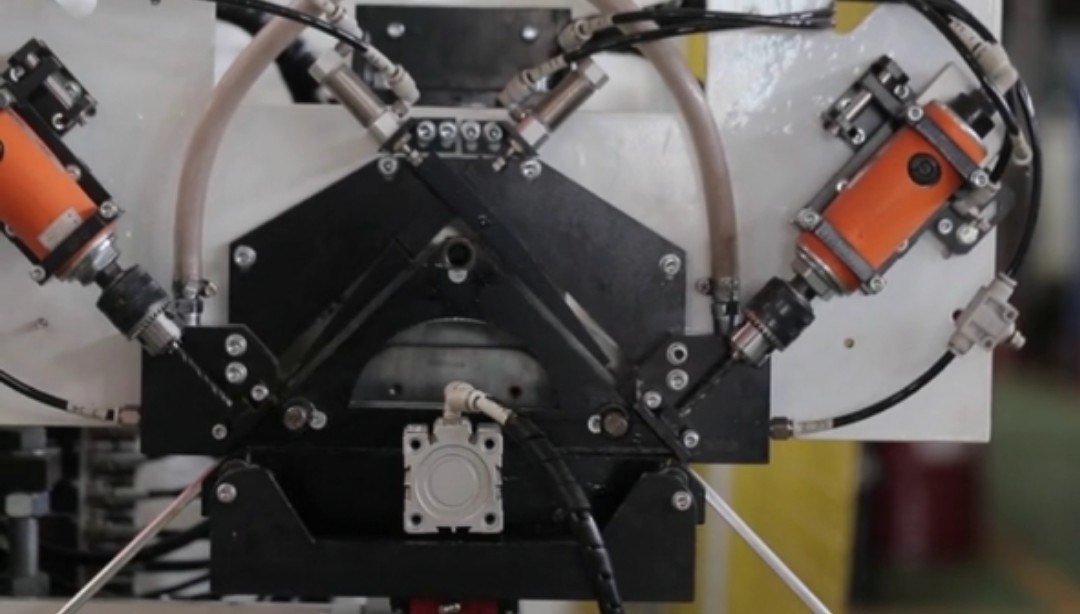

Machine head protection.

Easy and safe to add glue.

All electrical parts are German brand Siemens.

The machine height can be adjusted according to the size of the spacer frame.





Adhesive Butyl Sealant Coating Machine 1
