Classified Pre Washing 10m/Min Glass Washing And Drying Machine

Classified Pre Washing 10m/Min Glass Washing And Drying Machine
Classified Pre Washing 10m/Min Glass Washing And Drying Machine Classified Pre Washing 10m/Min Glass Washing And Drying Machine Classified Pre Washing 10m/Min Glass Washing And Drying Machine Classified Pre Washing 10m/Min Glass Washing And Drying Machine Classified Pre Washing 10m/Min Glass Washing And Drying Machine

Large Image :  Classified Pre Washing 10m/Min Glass Washing And Drying Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJQX2500-00
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 20sets/month

Classified Pre Washing 10m/Min Glass Washing And Drying Machine

Description
Name: Vertical Washing And Drying Machine Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*400mm Glass Thickness: 3-15mm / 19mm
Insulating Glass Thickness: 50mm / 60mm Glass Washing Speed: 2-10m/min
Glass Conveyor Speed: 45m/min
High Light:

Classified vertical glass washing machine

,

10m/Min flat glass washing machine

Glass Washing Machine And Drying Machine With Optional Pre-washing

Main feature:

  • Automatically detect low-radiation, high-performance glass
  • On-line and off-line cleaning of low-e glass, automatic identification of low-e film
  • The air knife can automatically adjust the width according to the glass thickness
  • Adopt intelligent intermittent energy-saving working mode
  • Classified washing system
  • Automatic temperature control of water tank and water replenishment system
  • European silencer system and stainless steel drying system



Technical data





Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg





NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC



Detail image

1. Materials
The entire washing and drying part is made of 304 stainless steel, including dinner plates and internal spare parts.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 0







The thickness of the board can reach 4mm and the inner board can reach 8mm. The equipment has better performance and longer service life.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 1

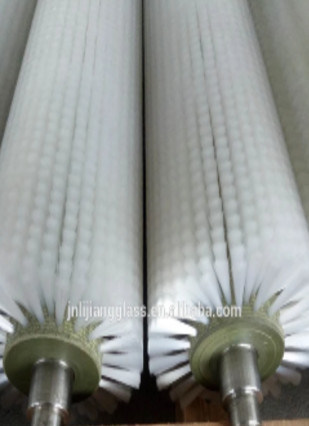

2. Six brushes

It has 6 brushes, all soft brushes, which can clean flat glass, tempered glass and low-e glass. Its bristle diameter is less than 0.1 mm and will never damage the glass, especially for low-e glass.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 2









3. Noise reduction device
Using nylon gears and sponges can control the noise below 90 decibels.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 3





4. Noise reduction device
Using nylon gears and sponges can control the noise below 90 decibels.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 4











5. Automatic recognition of glass thickness

1). There is a universal joint device. When the thickness of the glass is changed, the air knife will move back and forth to adjust the distance, so that the relative distance between the air knife and the glass is constant, so as to avoid the change in the thickness of the glass due to damage to the glass.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 5

There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

Classified Pre Washing 10m/Min Glass Washing And Drying Machine 6





Classified Pre Washing 10m/Min Glass Washing And Drying Machine 7Classified Pre Washing 10m/Min Glass Washing And Drying Machine 8Classified Pre Washing 10m/Min Glass Washing And Drying Machine 9
