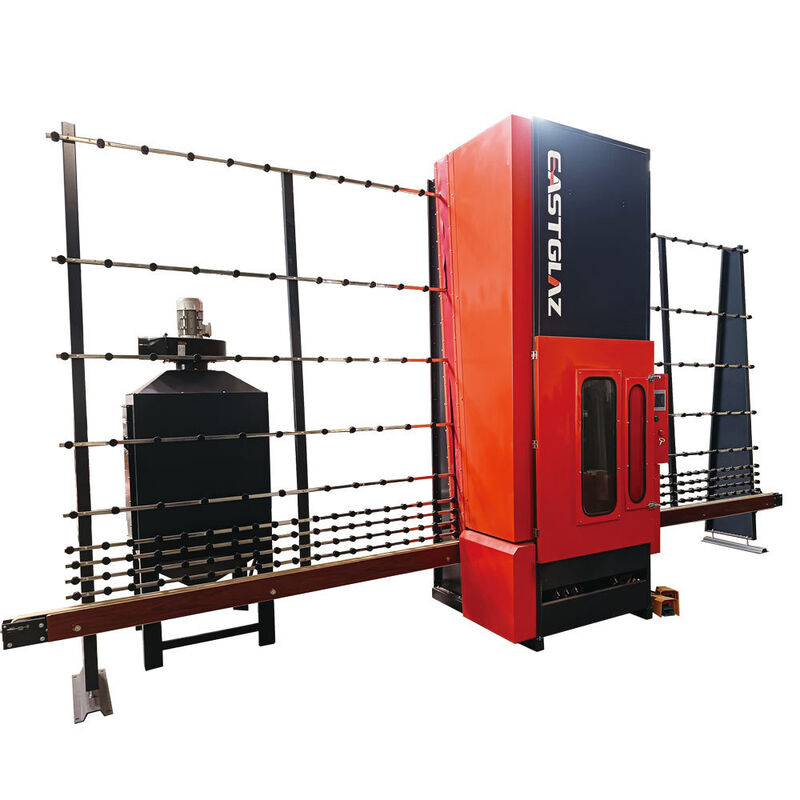

GDPS Vertical Sandblasting Machine

• High-efficiency vertical sandblasting for uniform glass surface treatment

• Fully automatic operation, reducing labor and improving production speed

• Suitable for tempered glass, float glass, laminated glass, and different thicknesses

• Durable design with low maintenance for long-term use

• Ideal for glass factories and processing lines requiring high precision finishing

• Perfect for glass etching, polishing, and decorative patterns

• Compatible with industrial glass processing equipment lines

Glass automatic sandblasting machine designed according to the marketing requirement that control by the PLC, suitable for processing 5-40mm thickness of flat glass to different kind of frosting patterns . The transmission

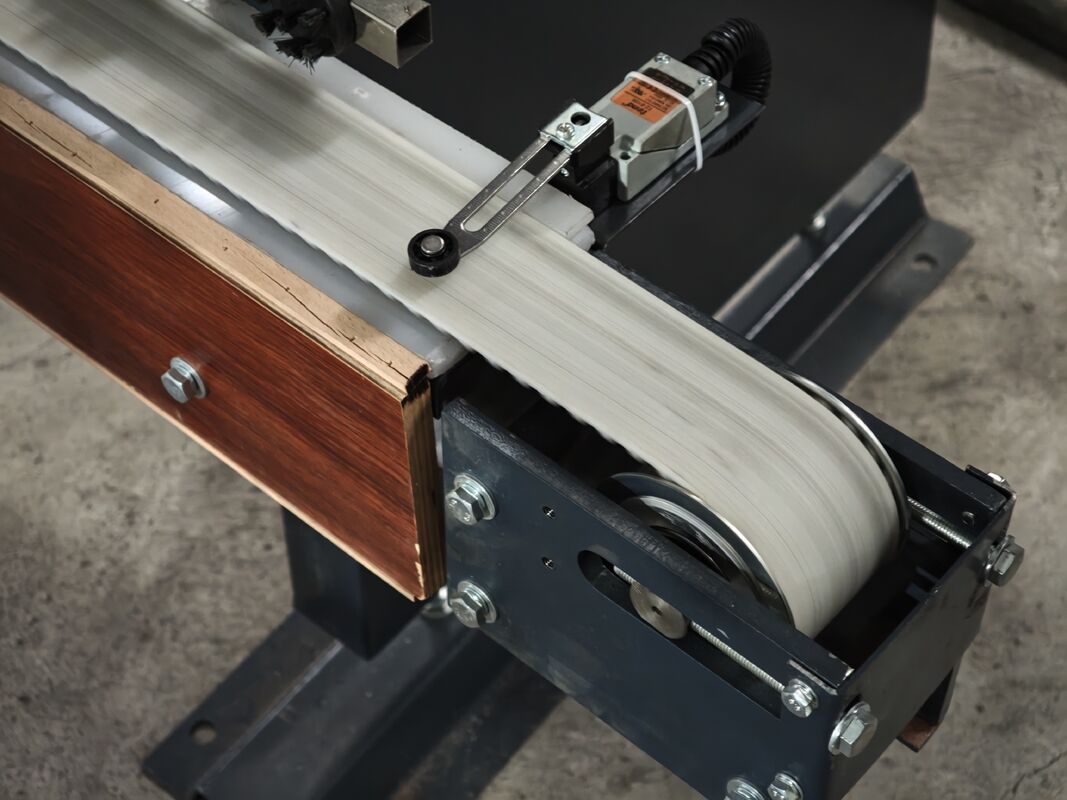

control by the photo switch and limit switch automatically. Glass conveys by the belt, and the guns driven by chain so that can be move up and down for sandblasting (the distance can be adjusted according to the requirement). Stable transmission, high efficiency and easy maintenance of the chain system. There is a dust-proof cover for the bearing that is onto the drive structure is beneficial to the long period normal working condition and daily maintenance. Adopt the PLC for controlling. The kinds of equipment are with the function of stable running, large-scale function, easy operation and can be explore the glass position automatically when sandblasting.Option function: Upgrade transmission by frequency conversion control, which can move forward or backward while sandblasting, and with function of gradual Change Sandblasting Processing----Sandblasting depth from shallow to deep ( gradient function).

The equipment has two modes: full automatic and manual. The machine equipped with three automatic guns and one manual gun. The lifting of the gun and the transmission of glass are all PLC automatic control by synchronous belt transmission, the transmission is stable and durable, and the gun lifting device is located outside of the body. Low failure rate.We have modified and upgraded the control program of the machine to facilitate more customers with special requirements.

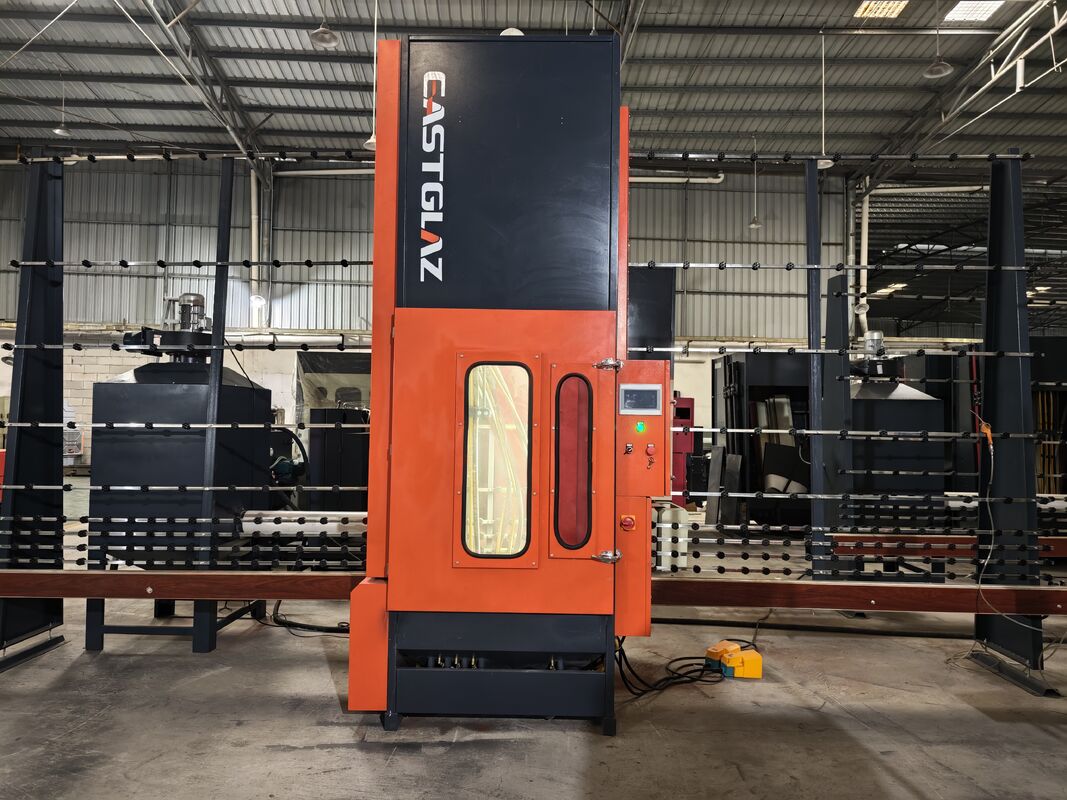

Front view

Back view

Main component (Some configuration brands may be replaced due to products improvement without notify and GUDETECH will have the right of final explanation.

Ⅲ.Transportation and Installation

1. Transportation

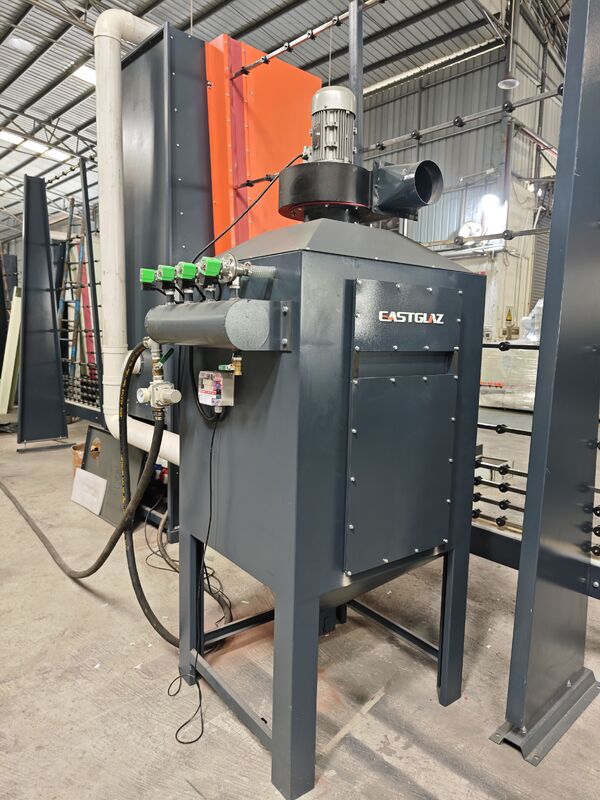

As for easy transportation the equipment will be separate before delivery and will reinstall again when reach the correct position.It must adopt two slings through the two side of dust collector which sling dog should be on the top side of sym center(as diagram),The hoist capacity should not be less than 1000kg.

2. Installation

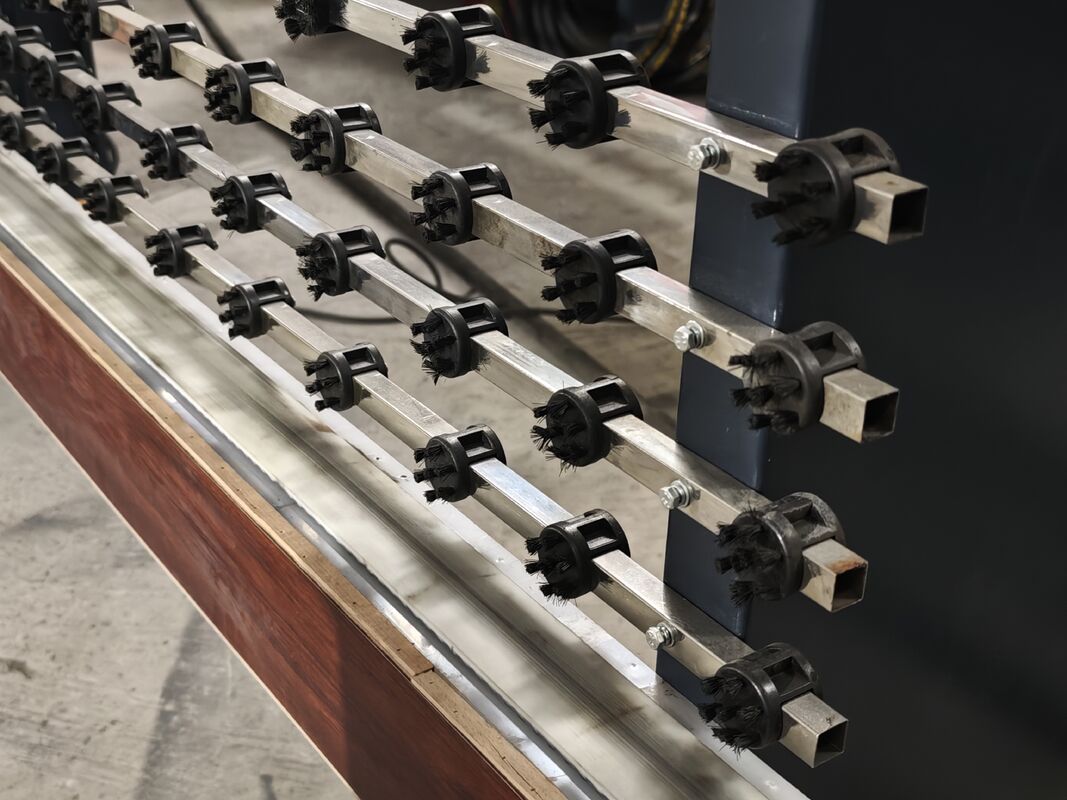

Accord drawing sizes to hoist the machine to suitable place in workshop, then install glass rack and conveyor rail. Pay attention to adjusting glass rack to make supporting wheels’ surface of glass rack and supporting wheels’ surface of main body match together.
