Lijiang × EASTGLAZ GlassInspector Online Glass Defect Inspection System for IG Line

Lijiang × EASTGLAZ GlassInspector

Online Glass Defect Inspection System for IG Line

Product Overview

GlassInspector is an online glass defect inspection system developed under the Lijiang × EASTGLAZ integrated quality control solution, specifically designed for insulating glass (IG) production lines.

The system is jointly developed in cooperation with DELTAMAX (Italy), combining European industrial vision inspection technology with Lijiang’s extensive application experience in insulating glass production lines.

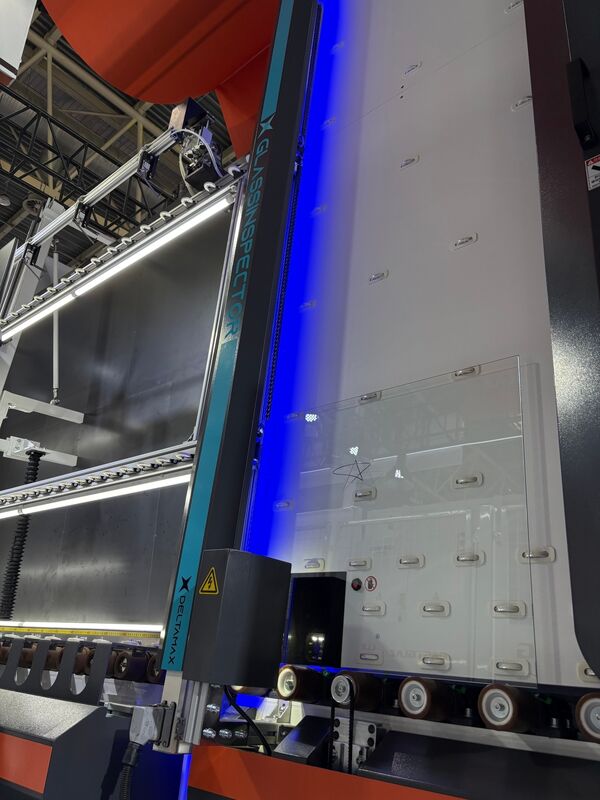

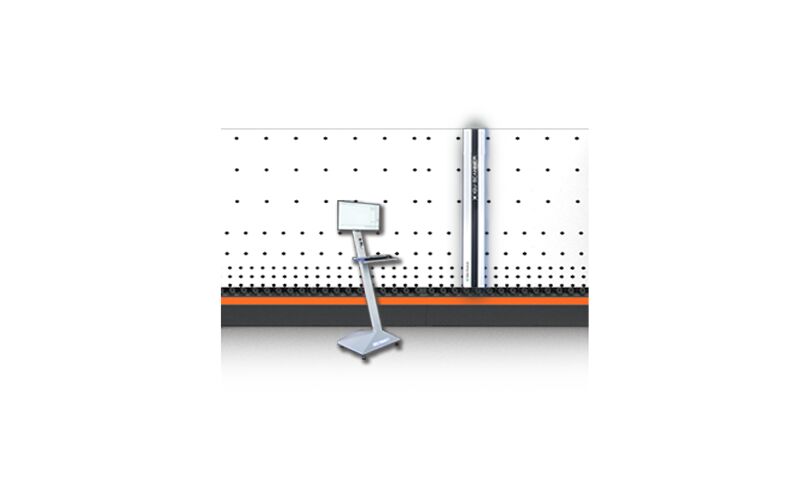

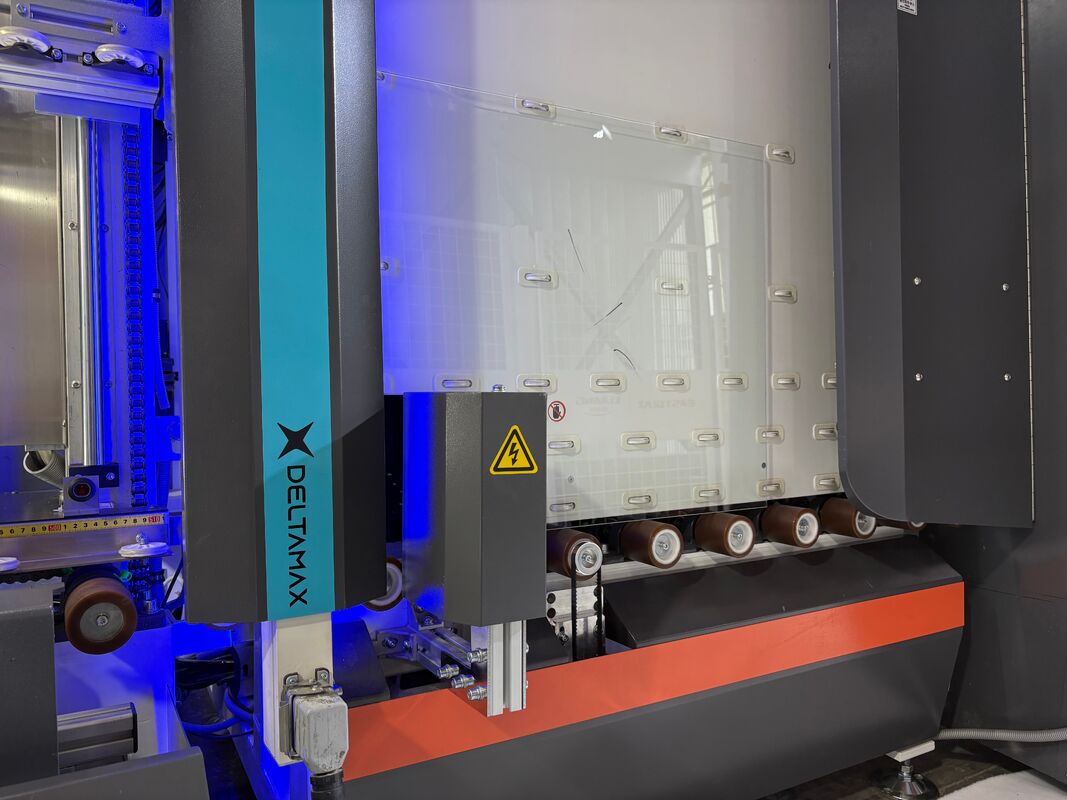

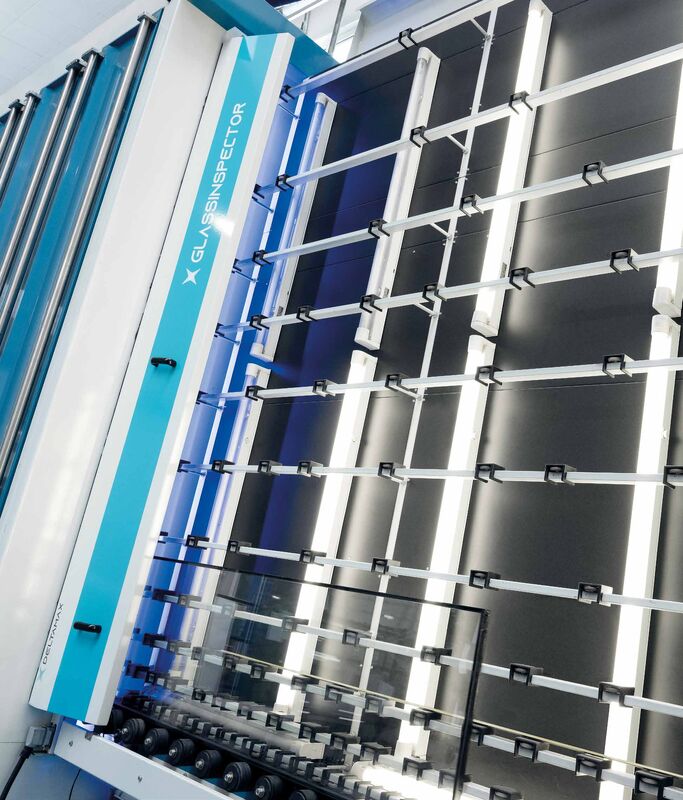

Installed directly after the washing machine, GlassInspector performs real-time, non-contact inspection of glass surfaces without affecting production speed, helping manufacturers reduce defects, standardize quality control, and improve finished glass consistency.

Core Advantages

▶ Designed for Insulating Glass Production Lines

…Dedicated solution for IG manufacturing

…Inline installation after washing machine

…Independent operation without interfering with existing equipment

…Suitable for continuous, high-speed production

▶ High-Precision Online Inspection

…Industrial vision–based inspection system

…Minimum detectable defect size: 0.4 mm

…Image resolution: 0.2 mm / pixel

…Stable inspection at line speeds up to 60 m/min

…Detectable defects include:

…Bubbles and inclusions

…Scratches (fine and deep)

…Stains, dirt, water marks, fingerprints

…Low-E coating defects (pinholes, abrasion, burns)

…Surface and edge-related visual defects

▶ Flexible Quality Standards

…Automatic defect detection and classification

…Customizable quality thresholds

…Different inspection levels for different orders or markets

…Consistent inspection results independent of operators

▶ Wide Glass Compatibility

…Single, double and triple glazing

…Clear, tinted and Low-E glass

…Jumbo size glass supported

…Rectangular and shaped glass

…Not suitable for sandblasted, printed, painted or mirror glass.

Integrated Quality Control Capabilities

Based on the Lijiang × EASTGLAZ Flat Glass Inspection Architecture

Inspection Functions Covered

• Structural defects: bubbles, inclusions, knots

• Process defects: scratches, stains, prints, surface contamination

• Coating defects: pinholes, surface abrasion, burns

Advanced Inspection Compatibility

• Compatible with dual-channel inspection concepts for enhanced detection of subtle defects such as light stains and thin scratches

• Supports inspection logic used in IG unit quality control for single, double and triple glazing

Production Quality Management

• Inspection images and results can be stored and analyzed

• Supports production statistics and quality traceability

• Helps manufacturers build standardized, data-driven quality control systems

This system architecture allows factories to start with inline inspection and gradually upgrade toward a comprehensive quality control strategy.

Technical Parameters

Available Configurations

Configuration Notes

…Camera quantity is selected based on glass height and inspection requirements

…System configuration can be customized according to production line layout

…Compatible with jumbo-size glass and high-capacity IG production lines

…Designed for continuous industrial operation

Why Choose This Solution

GlassInspector enables manufacturers to move from manual inspection to standardized, automated and data-driven quality control.By combining Lijiang’s insulating glass line expertise, EASTGLAZ’s system integration capability, and DELTAMAX’s Italian inspection technology, this solution delivers stable performance, scalable configuration and long-term reliability for global glass processors.
