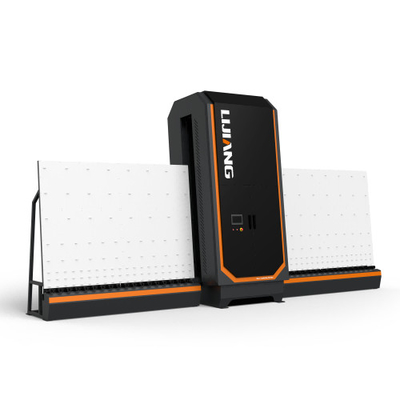

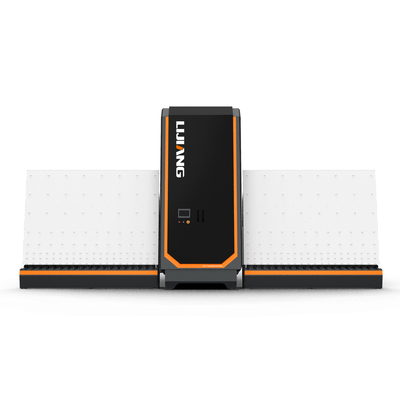

GLASS PROTECTIVE FILM APPLICATOR (Patented Product)(The first unit in Asia)

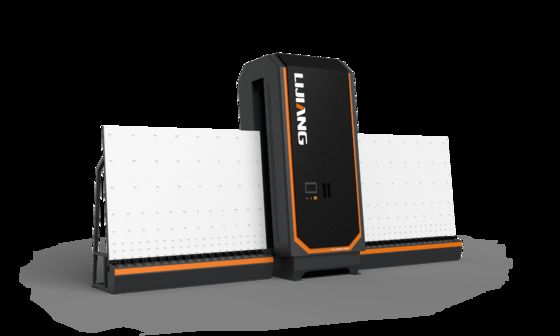

Large Image : GLASS PROTECTIVE FILM APPLICATOR (Patented Product)(The first unit in Asia)

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG
Model Number:	LJGYJ2030/2535/2540

Contact Now

GLASS PROTECTIVE FILM APPLICATOR (Patented Product)(The first unit in Asia)

Description

Logo Printing:	Supports On-demand Logo Printing On Transparent Film, Providing Flexible Customization Options While Significantly Reducing The Cost Of Specialized Film Materials.

Patented Product

(The first unit in Asia)

PARAMETER

Glass protetive film Applicntor
NO.	Technical Requirements	Parameter	Notes
1	Model	LJGYJ2530/2535/2540
2	Dimension	8500×2100×3950(L×W×H)
3	Voltage	380V 50HZ
4	Total power	24KW
5	Air pressure	0.5-0.8MPa
6	Min.IG size	450×350mm(L×H)
7	Max.IG size	3000×2500mm(L×H)
8	Min.IG thickness	15mm
9	Max.IG thickness	60mm
10	Max.IG weight	600KG
11	Film	Single-sided/Double-sided film
12	Bottom glass edge reservation	≧15mm	Manual input
13	Other glass edge reservation	5-50mm	Manual input
14	Automatic adjustment of IG dimension	Adding length and height adjustment	Or manual input
15	Automatic adjustment of IG thickness	Adding thickness adjustment	Or manual input
16	Conveyor speed	2-10m/min
17	Conveyor roll height	520mm
18	The roll heights of the first group	300-400mm
19	The roll heights of the second group	600-700mm
20	Inner diameter of film roll	76mm
21	Max.outer diameter of film roll	300mm
22	Film roll	IG protective film	Some manufacturers'film not suitable
23	Film thickness	0.03-0.08mm
24	PLC+servo	Tian chuan

PERFORMANCE

1.Intelligent and Efficient Operation---Powered by 18 high-precision servo motors and an advanced 3D trajectory control system, the applicator seamlessly adapts to glass thicknesses ranging from 15 to 60 mm. It features automatic size detection and intelligent film roll switching to ensure smooth, uninterrupted production.

2.Labor Cost Reduction---With fully automated processes and no need for manual film peeling, the system significantly reduces labor dependency.

3.Enhanced Production Efficiency---The intelligent film-switching mechanism eliminates downtime caused by manual roll changes, saving 10 to 20 minutes per batch. Capable of processing ≥200㎡ per shift, the machine achieves an equipment utilization rate exceeding 95%.

4.Superior Film Utilization---The Lijiang applicator achieves a film usage rate of over 95%, significantly higher than the 80‒90% of traditional systems, thus saving substantial materials and improving cost-efficiency.

5.Customization Capability----Supports on-demand logo printing on transparent film, providing flexible customization options while significantly reducing the cost of specialized film materials.
