Molecular sieve filling machine

Place of Origin:

China

Brand Name:

Lijiang glass

Certification:

Model Number:

LJFGJ03

Request A Quote

Product Details

Product Name:

Molecular Sieve Filling Machine

Total Power:

1KW

Air Pressure Range:

0.05-0.8MPa

Pressure-resistance:

1.2MPa

Vibration Frequency:

0-15HZ

Ambient Temperature:

5-60ºC

Shape Dimension:

2490mm*400mm*2200mm

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Container

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

20 sets/month

RELATED PRODUCTS

Contact Now

Product Description

APPLICATION

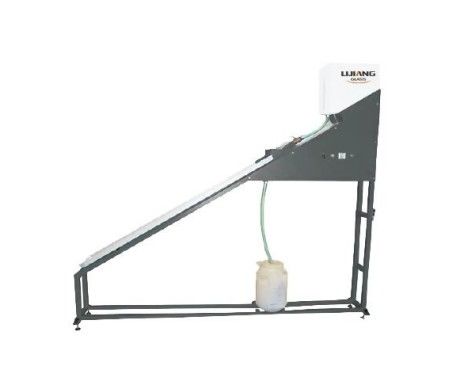

LJFGJ03 molecular sieve filling machine is one of the equipment necessary for producing groove aluminum-type hollow glass, which completes the process of filling molecular sieves into inner cavity of aluminum space strips (after clogging one end). The required geometrical shapes are made after aluminum space-strips are put into molecular sieve, such as square, rectangular, arch, semicircle and quadrangle circular arch, and installed between two layers of glasses and may keep dry between two glasses after sealing, not leading to condensation.

Main technical parameter

Power (Voltage/Frequency): 220V 50HZ

Total power: 1KW

Air pressure range: 0.05-0.8MPa

Pressure-resistance: 1.2MPa

Vibration frequency: 0-15HZ

Ambient temperature: 5-60ºC

Shape dimension: 2490mm*400mm*2200mm
