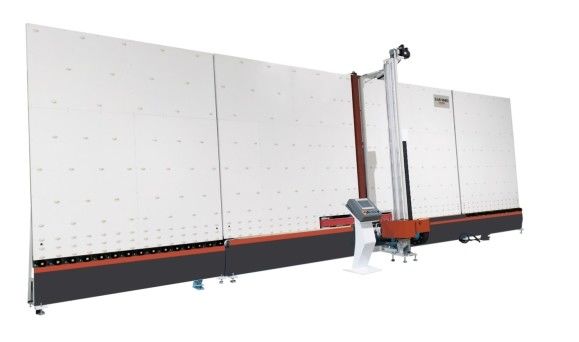

Product Details:
|
| Product Name: | Smart Vertical Edge Deleting Machine | Voltage: | 380V 50Hz |
|---|---|---|---|
| Total Power: | 15kw | Max. Glass Processing Size: | 2800*5000mm |
| Min. Glass Processing Size: | 400*280mm | Glass Thickness: | 3-15mm |
| Diameter Of Grinding Wheel: | 200mm | Conveyor Height: | 500mm |
| Edge Deleting Width: | 10-50mm | Transmission Speed: | 29m/min |
| Edge Deleting Speed: | 2-29m/min | Abrasive Wheel Width: | 12mm |
| Grinding Wheel Speed: | 0~3000r/min | Total Air Consumption: | 100L/ Min |
Main feature
• Two-way glass access
• Delete double and triple silver low-e glass
• Automatically measure glass size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm , 2800*5000mm ,3000*6000mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
